Atlas Sound VTF-157UCN – Recessed Compression Driver Speaker with 15W 70.7V Transformer, Gray

Product Overview

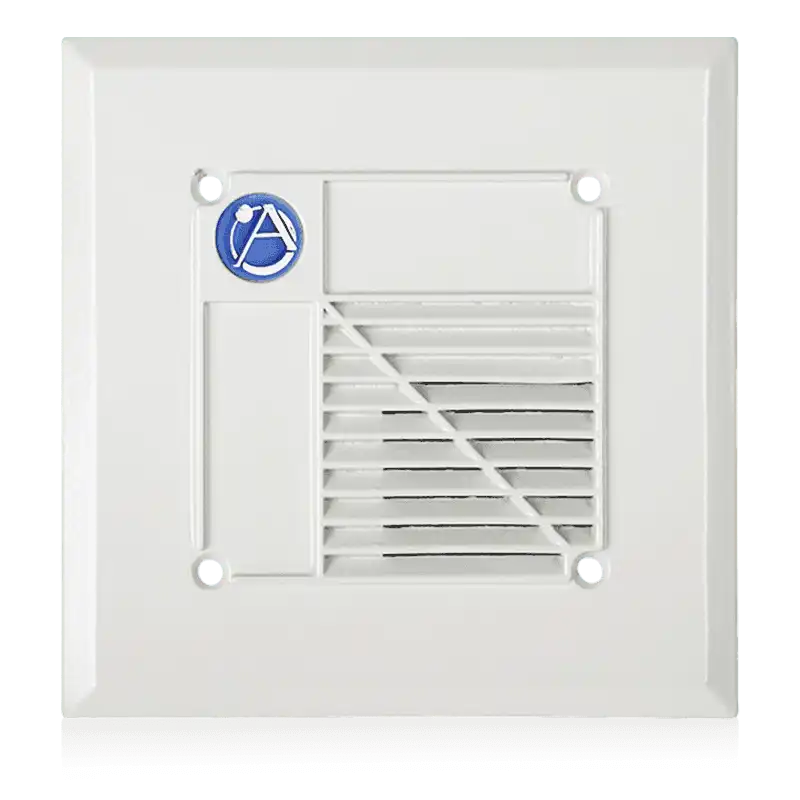

The Atlas Sound VTF-157UCN is a flush-mount recessed compression driver loudspeaker with a 15-watt 70.7-volt transformer and DC blocking capacitor, finished in neutral gray. It is part of the patented VT/VTF Series designed for voice and tone distribution in industrial, commercial, and life-safety applications. The VTF-157UCN is UL 1480 Safety Listed and IP56 rated for moisture and dust resistance.

Product Description

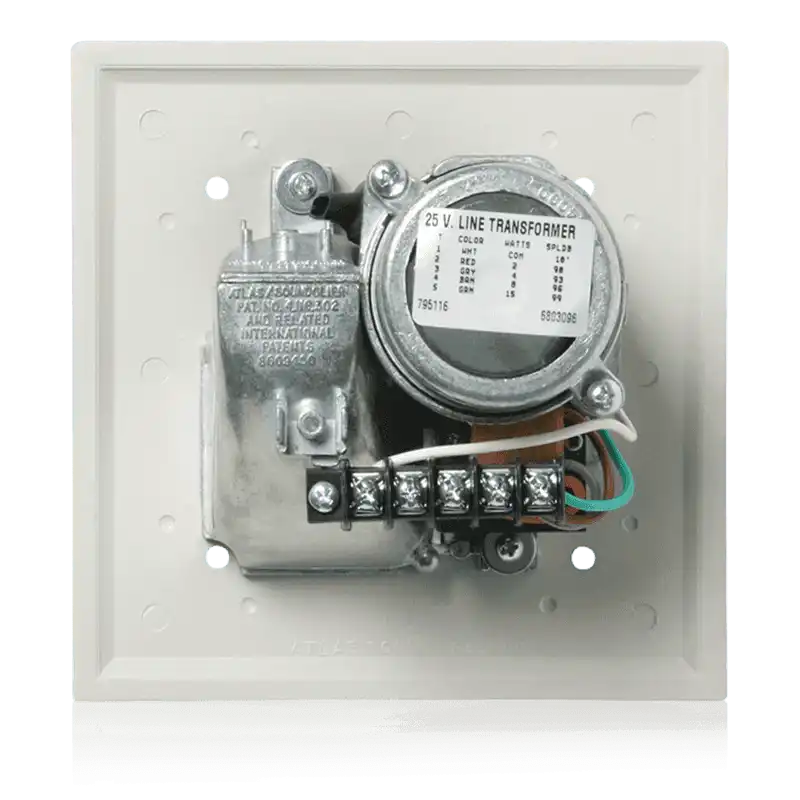

The VTF Series uses a high-efficiency compression driver with an integral exponential horn that maximizes acoustic conversion efficiency, reducing the number of units needed to achieve a target sound pressure level and lowering amplification power requirements. At 96.9 dB sensitivity (1W/1m), the VTF-157UCN delivers strong output from minimal amplifier power. The 600 Hz to 5.5 kHz frequency response covers the critical speech intelligibility range for paging, intercom, and alarm systems. Dispersion exceeds 190 degrees at the -6 dB point in the 1 and 2 kHz octave bands, providing broad coverage from recessed ceiling or wall installations. The flush-mount VTF design mounts to standard 4-inch or 4 11/16-inch square back boxes; adapter rings (model AR or MR, ordered separately) are required for 4 11/16-inch boxes. All connections are made via barrier strips. The die-cast construction is water-sealed and withstands vandalism, moisture, corrosion, dust, vibration, and vermin intrusion. The suffix “N” designates neutral gray finish; the “C” suffix indicates the included DC blocking capacitor. Power taps of 15, 8, 4, and 2 watts are available at 70.7 volts.

Key Features

• High-Efficiency Compression Driver — 96.9 dB sensitivity at 1W/1m reduces amplifier load and number of units required.
• 15W 70.7V Transformer — Four power taps (2, 4, 8, 15W) for distributed audio system flexibility.
• DC Blocking Capacitor Included — Suffix “C” model prevents DC from reaching the driver in supervised circuit installations.
• >190° Dispersion at 1–2 kHz — Broad coverage from a single recessed unit in ceiling or wall applications.
• Flush Recessed Mount — Mounts to standard 4" or 4 11/16" square back boxes for clean, low-profile installation.
• IP56 Die-Cast Construction — Sealed against water, dust, corrosion, vibration, and vermin.
• -30°F to 150°F Operating Range — Suitable for industrial, warehouse, and outdoor-adjacent environments.
• UL 1480 Safety Listed — Approved for fire protective signaling system applications.
• Neutral Gray Finish — Unobtrusive appearance in commercial and institutional ceiling installations.
