Atlas Sound VT-152UCN – Voice/Tone Surface Mount Compression Driver...
Product Overview

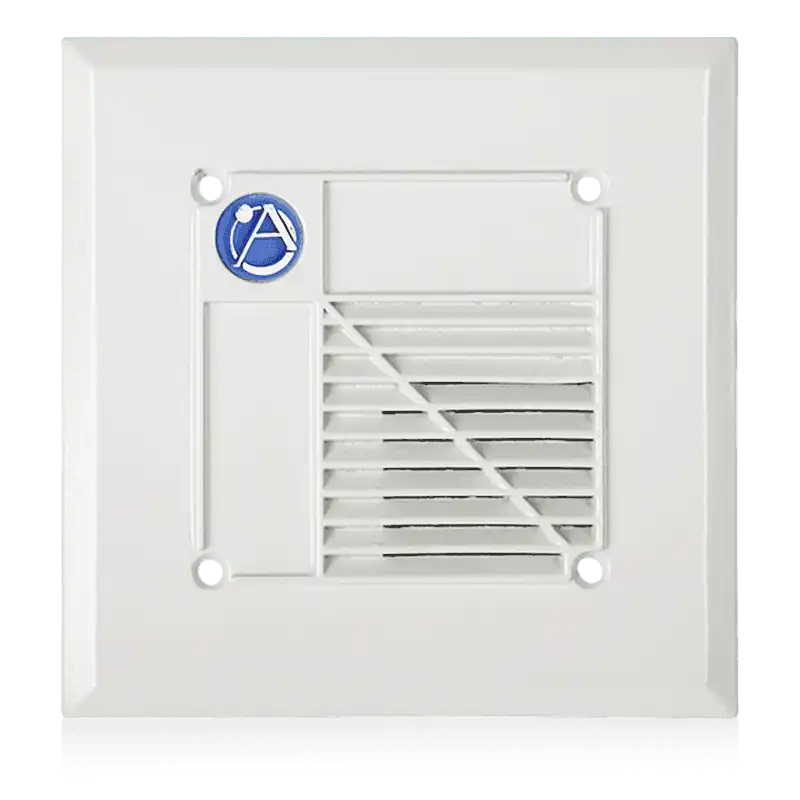

The Atlas Sound VT-152UCN is a UL Listed, IP56-rated surface-mount compression driver loudspeaker with a factory-installed 15-watt 25V transformer, designed for emergency voice/tone fire protective signaling systems. Part of the patented VT Series, it meets or exceeds UL Standard 1480 when used with compatible control equipment, making it a code-compliant choice for mass notification, public address, and industrial paging applications. The die-cast, water-sealed housing withstands vandalism, vermin, moisture, corrosion, and vibration in both indoor and outdoor environments.
Product Description
The VT-152UCN delivers high sound pressure levels from a compact compression driver assembly, offering 96.9 dB sensitivity at 1 watt/1 meter and greater than 190° dispersion at the −6 dB point across 1 kHz and 2 kHz octave bands — a key advantage in emergency signaling applications where sound must reach occupants across a wide horizontal plane. Frequency response covers 600 Hz to 5.5 kHz, optimized for voice intelligibility and tone signal reproduction. Power taps of 15, 8, 4, and 2 watts provide flexibility for matching speaker load to amplifier capacity in a 25V distributed system. An internal DC blocking capacitor enables the VT-152UCN to operate on supervised speaker lines, a requirement for UL-compliant fire alarm audio systems. Speaker wiring terminates to a barrier strip for straightforward field connections. The die-cast housing is water-sealed to IP56, protecting against dust ingress and high-pressure water jets, making the unit appropriate for covered outdoor areas, industrial facilities, gymnasiums, and food processing environments. The Neutral Gray finish (N suffix) provides a low-profile appearance in commercial spaces. Surface-mount models in the VT Series mount to standard 4" electrical outlet boxes; optional accessories including indoor/outdoor enclosures, bi-directional housings, adapter plates, and rings are available separately. Red-finish variants are available by substituting the R suffix.
Key Features

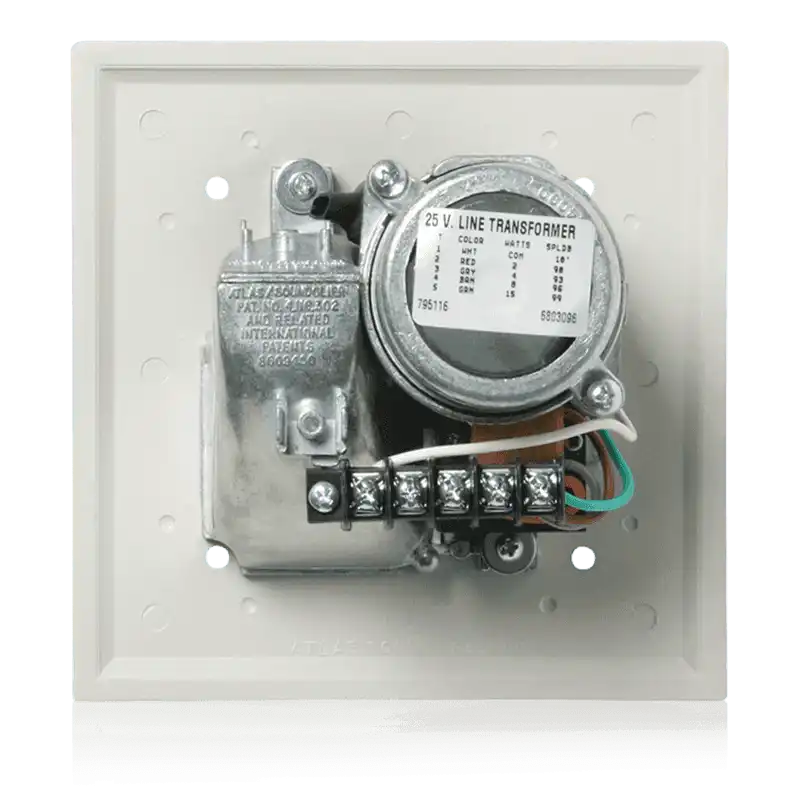

- 15-Watt 25V Transformer — Power taps at 15, 8, 4, and 2W for flexible 25V system design.
- 96.9 dB Sensitivity — High output from a compact assembly reduces amplifier power requirements.
- Greater than 190° Dispersion — Wide horizontal coverage at the −6 dB point for emergency signaling zones.
- DC Blocking Capacitor — Enables operation on supervised speaker lines for UL 1480-compliant fire alarm systems.
- IP56 Weather-Sealed — Die-cast housing resists dust, high-pressure water, corrosion, and physical abuse.
- UL Listed to UL 1480 — Certified for fire protective signaling systems with compatible control equipment.
- Standard 4" E.O. Box Mounting — Mounts to standard electrical outlet boxes for straightforward installation.
- Neutral Gray Finish — Low-profile appearance in commercial and institutional spaces.
- Patented Design — Proven VT Series architecture with worldwide field deployment history.
Technical Specifications
| Specification | Value |
|---|---|
| Model | VT-152UCN |
| Frequency Response | 600 Hz – 5.5 kHz |
| Sensitivity | 96.9 dB (1W/1m) |
| Transformer Voltage | 25V |
| Power Taps | 15, 8, 4, 2 Watts |
| Dispersion | >190° (−6 dB, 1 kHz and 2 kHz octave bands) |
| Mounting | Surface mount; standard 4" electrical outlet box |
| Housing | Die-cast, water-sealed |
| Weather Rating | IP56 |
| Finish | Neutral Gray |
| Height | 4 1/4" (10.795 cm) |
| Depth | 3 1/8" (7.9375 cm) |
| Shipping Weight | 3.60 lbs (1.63 kg) |
| Safety Listed | UL 1480 |
| Warranty | 60 months from date of purchase |
