Atlas Sound VPCS-2GPB-2 – Vandal-Proof Intercom Station with Speaker & 25V Transformer

Product Overview

The Atlas Sound VPCS-2GPB-2 is a vandal-proof intercom station equipped with a 2 1/2-inch loudspeaker, a heavy-duty push-button call switch, and a 25-volt transformer. Designed for mounting in standard 2- or 3-gang electrical boxes, it is suited for secure facility access points, educational institutions, healthcare corridors, and public facilities requiring durable, call-capable intercom stations. The unit is BAA and TAA compliant.

Product Description

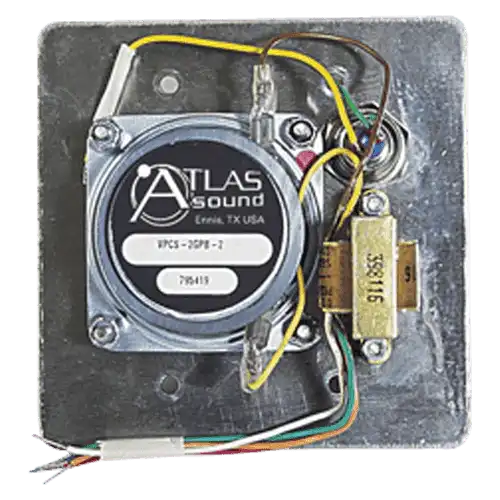

The VPCS-2GPB-2 uses a 2 1/2-inch diameter loudspeaker with a phenolic resin-impregnated, moisture-proof cloth cone that delivers clear voice transmission across the 350 Hz to 4,500 Hz speech range. The two-piece die-cast baffle system protects the loudspeaker assembly from intentional vandalism, and the 11-gauge stainless steel face plate resists physical damage in high-traffic or unsupervised locations. The 25-volt transformer provides 1/4, 1/2, 1, and 2 watt taps for compatibility with distributed intercom and paging amplifiers. The push-button call switch uses a heavy-duty momentary action mechanism rated at 3A/120VAC, built from nickel-plated brass and sealed to IP65 for moisture resistance. The face plate mounts standard 2- and 3-gang electrical back boxes using 6-32 counter-sunk screws. Shallow 2 1/8-inch depth fits in tight wall cavities. Unit design allows quick access to internal components for field service. Lead wires are 5 inches in length. This unit is manufactured in compliance with the Buy America Act (BAA) and Trade Agreements Act (TAA) and carries a 5-year warranty.

Key Features

• Vandal-Proof Two-Piece Die-Cast Baffle — Protects loudspeaker assembly from physical damage in public-facing locations.

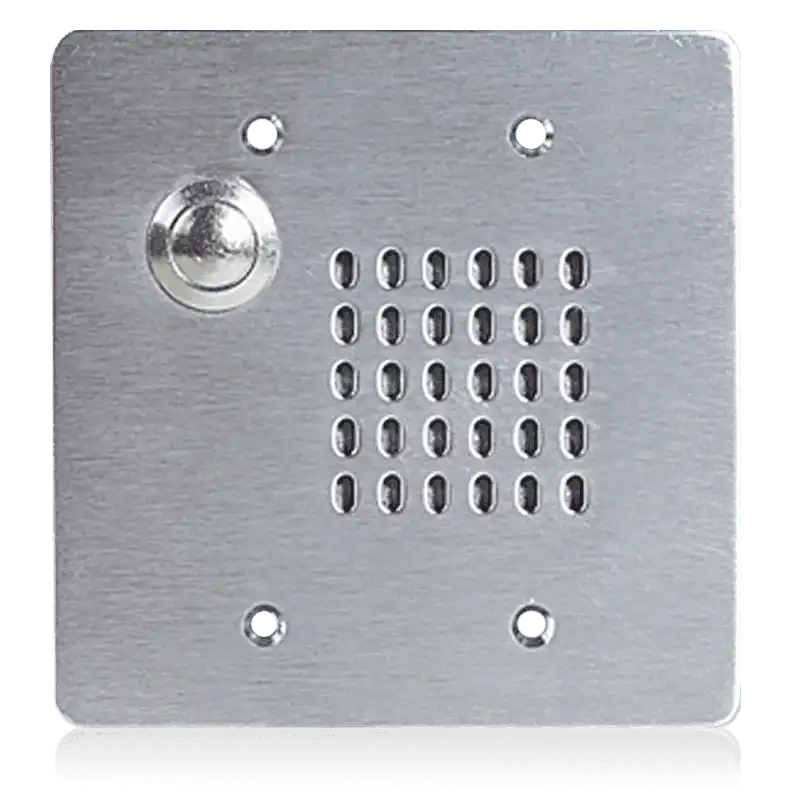

• 11-Gauge Stainless Steel Face Plate — Heavy-duty construction for high-traffic and unsupervised environments.
• Push-Button Call Switch (IP65) — Nickel-plated brass construction, 3A/120VAC rating, moisture-sealed.
• 25V Transformer with 4 Taps — 1/4, 1/2, 1, and 2 watt selections for distributed paging system compatibility.
• 2 1/2" Moisture-Resistant Cone Speaker — Clear speech-range reproduction from 350 Hz to 4,500 Hz.
• Shallow 2 1/8" Depth — Fits standard 2- and 3-gang electrical back boxes with minimal wall depth required.
• BAA & TAA Compliant — Meets federal procurement requirements for government and public projects.
• Field Serviceable Design — Quick disassembly for maintenance in installed locations.
