Atlas Sound VPB-1A – Vandal Proof Plate Mounted Call Switch

Product Overview

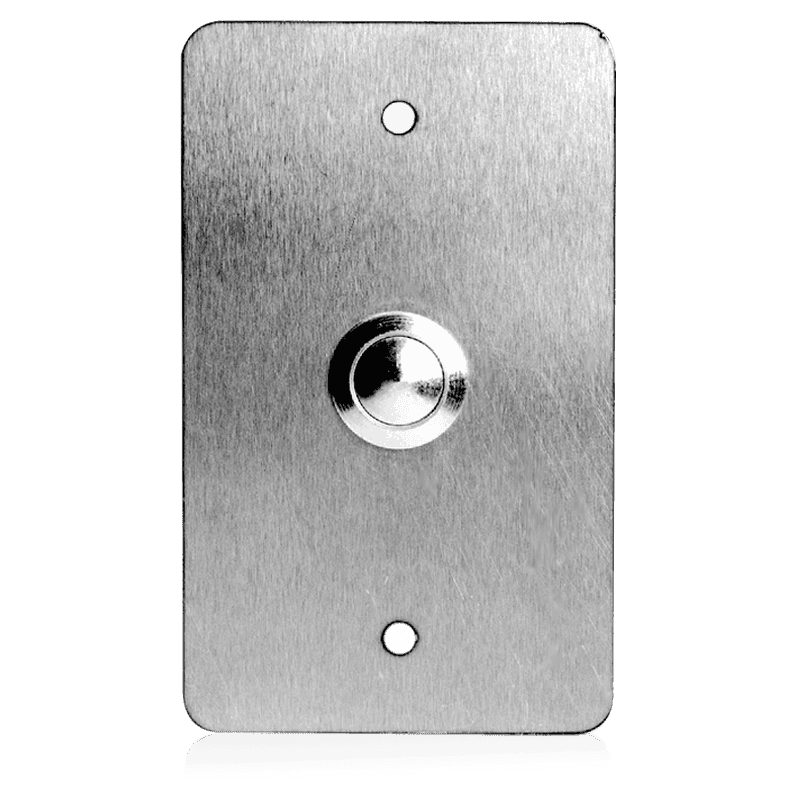

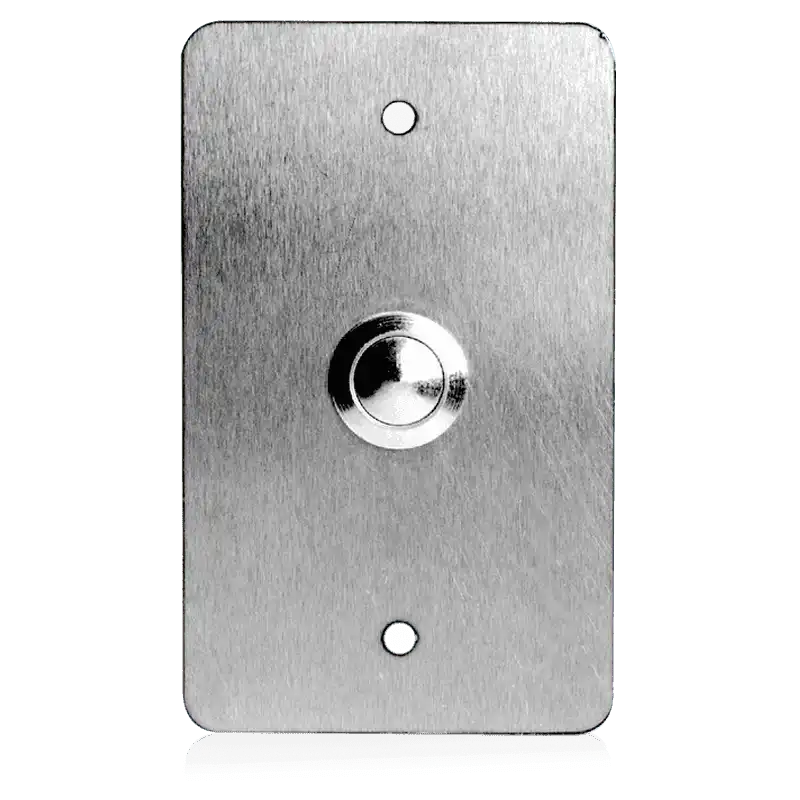

The Atlas Sound VPB-1A is a vandal-resistant, plate-mounted momentary push-button call switch designed for use in secure commercial and institutional environments. Mounted on a single-gang stainless steel face plate, it provides a durable call origination point for intercom systems and paging applications where physical abuse is a concern. The VPB-1A is compatible with Atlas VPCS 2- and 3-gang intercom stations and can also function as a standalone signaling device.

Product Description

The VPB-1A features a heavy-duty, momentary-action push button constructed of nickel-plated brass, sealed to an IP65 classification against moisture and contaminants. The single-pole, single-throw, normally-open switch contact is rated at 3A at 120VAC or 1.5A at 250VAC, making it suitable for direct connection to paging controls, access control systems, and call stations. The unit mounts to standard 2 or 3-gang electrical outlet boxes using countersunk 6-32 machine screws, and lead wires extend 5 inches (127mm) for flexible termination during installation. The phenolic resin-impregnated speaker cone in associated VPCS stations delivers clear voice transmission, while dual die-cast baffles protect the assembly from vandalism. The stainless steel face plate provides a professional appearance while resisting damage from physical contact. BAA and TAA compliance makes the VPB-1A suitable for government, education, and federally funded facility installations. The 60-month warranty reflects the product's construction quality and intended use in permanent institutional environments.

Key Features

• IP65-Rated Push Button — Nickel-plated brass construction sealed against moisture and contaminant ingress.
• SPST Normally-Open Switch — 3A contact rating at 120VAC for reliable call signal initiation.
• Stainless Steel Face Plate — Single-gang format resists physical abuse in high-security environments.
• Standard Electrical Box Mounting — Mounts to 2 or 3-gang E.O. boxes with standard 6-32 countersunk screws.
• 5" Lead Wires — Adequate length for in-box termination during installation.
• VPCS Station Compatible — Works in conjunction with Atlas VPCS 2- and 3-gang intercom stations.
• Standalone Capable — Operates as an independent remote call button separate from intercom stations.
• BAA/TAA Compliant — Meets requirements for government and federally funded projects.

Technical Specifications
