Atlas Sound VP60R – Recessed Circular Vandal-Proof Baffle for 8" Loudspeakers
Atlas Sound VP60R – Recessed Circular Vandal-Proof Baffle for 8" Loudspeakers is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Atlas Sound VP60R – Recessed Circular Vandal-Proof Baffle for 8&quo...
Product Overview

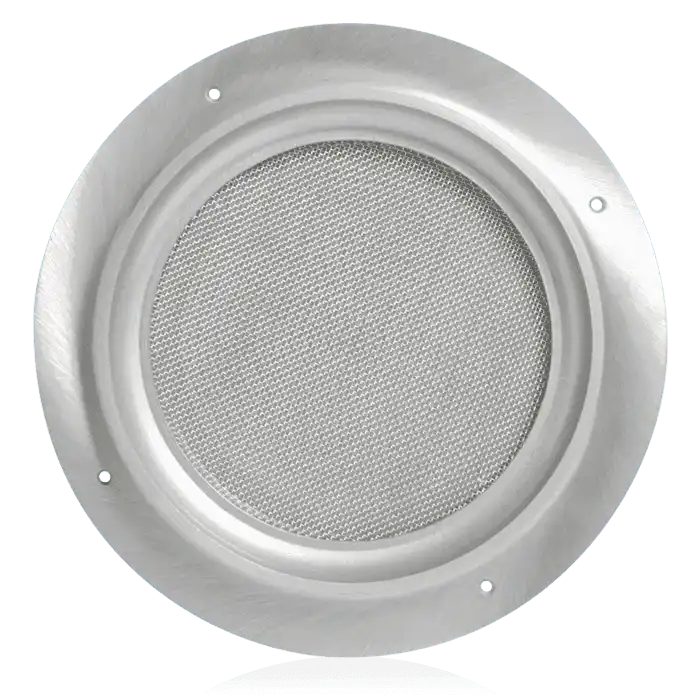

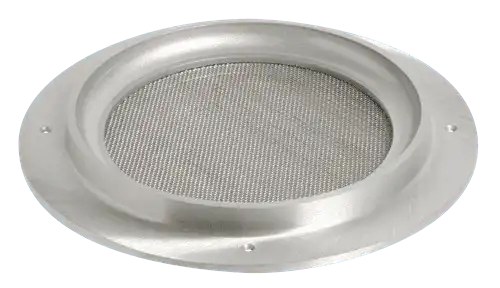

The Atlas Sound VP60R is a recessed circular vandal-proof baffle assembly designed for tamper-resistant installation of standard 8" cone loudspeakers or APF Series re-entrant horn speakers. Built for high-abuse environments such as correctional facilities, transportation terminals, and industrial spaces, it combines aluminum alloy strength with stainless steel mesh impact protection. UL Listed (Safety Listing 1480), BAA and TAA compliant, the VP60R is specified wherever surface-accessible speaker hardware is not acceptable.
Product Description
The VP60R baffle is engineered for recessed installations where physical security and acoustic performance must coexist. The trim ring is cast from aluminum alloy with a tensile strength of 44,000 PSI — roughly twice the strength of conventional cast aluminum baffles — and features a 3/4" shielding collar that protects the speaker cone from direct impact or poking. The speaker driver mounts to welded studs behind a perforated 22-gauge CRS (cold-rolled steel) plate, which is further protected by a stainless steel woven wire-mesh screen positioned 3/8" in front of the plate. The mesh screen is reinforced with a thick bead of interior sealant to resist tearing or deformation from sustained impact. Installation is secured via tamperproof heat-treated alloy screws using a special wrench that is supplied with the unit; mounting holes are countersunk for additional security. The finish is satin aluminum with an acrylic coating for long-term corrosion resistance. For horn installations, the adapter plate Model FAMT-6 is required (sold separately). The VP60R accommodates most standard 8" cone drivers and select APF Series horns, giving AV designers flexibility in speaker selection while maintaining a unified security profile.
Key Features
- Aluminum Alloy Trim Ring — 44,000 PSI tensile strength provides twice the impact resistance of standard cast aluminum.
- 3/4" Shielding Collar — Protects the speaker cone from direct bashing or probing.
- Stainless Steel Woven Wire-Mesh Screen — Positioned 3/8" in front of the perforated CRS plate for layered impact protection.
- Reinforced Mesh Sealant — Interior bead of sealant prevents screen tearing or bending under sustained force.
- Tamperproof Mounting Hardware — Heat-treated alloy screws with countersunk holes; special wrench included.
- Horn-Compatible — Accepts APF Series re-entrant horns with Model FAMT-6 adapter plate (sold separately).
- Satin Aluminum with Acrylic Coating — Durable finish suitable for high-traffic and moisture-prone spaces.
- UL Listed / BAA / TAA Compliant — Meets safety listing 1480; qualifies for federally funded projects.
Technical Specifications
| Specification | Value |
|---|---|
| Model | VP60R |
| Trim Ring Material | Aluminum alloy, 44,000 PSI tensile strength |
| Backing Plate | Perforated 22-gauge CRS |
| Screen Material | Stainless steel woven wire-mesh |
| Finish | Satin aluminum with acrylic coating |
| Depth | 1" (2.54 cm) |
| Diameter | 12 3/4" (32.39 cm) |
| Shipping Weight | 3.13 lbs (1.42 kg) |
| Safety Listed | UL 1480 |
| Compliance | BAA / TAA Compliant |
| Warranty | 60 months from date of purchase |
