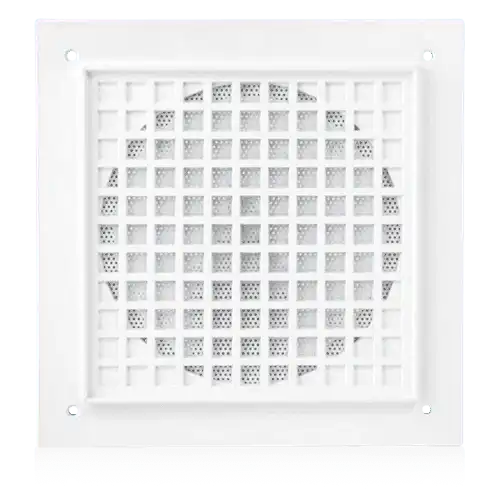

Atlas Sound VP161A-R4 – Recessed Vandal-Proof Baffle for 4" Cone Speakers
Atlas Sound VP161A-R4 – Recessed Vandal-Proof Baffle for 4" Cone Speakers is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Atlas Sound VP161A-R4 – Recessed Vandal-Proof Baffle for 4" Co...
Product Overview
The Atlas Sound VP161A-R4 is a recessed vandal-proof speaker baffle engineered for 4" cone loudspeakers deployed in high-security and public-access facilities. Cast from a self-aging aluminum alloy rated at 44,000 P.S.I. tensile strength, the VP161A-R4 protects speaker installations in correctional facilities, transit systems, healthcare settings, and institutional buildings where standard grilles are insufficient. The unit supports both flush and surface-mount installation methods and carries BAA and TAA compliance for government applications.
Product Description
The VP161A-R4 delivers tamper-resistant speaker protection for 4" cone drivers in demanding commercial and institutional environments. The cast aluminum frame is formed from a self-aging alloy with a tensile strength of 44,000 P.S.I., providing long-lasting resistance to impact and deliberate vandalism. A perforated cold-rolled steel (CRS) stud-mounting plate reinforces the grille structure and anchors the cone speaker driver securely in position. The installation screws are heat-treated alloy, countersunk into the baffle to prevent easy removal; a special wrench is included to maintain controlled access. A neoprene gasket between the baffle and mounting surface provides an acoustic seal that reduces sound leakage and improves audio clarity. The perforated grille has been updated to stainless steel construction for improved corrosion resistance in humid or outdoor-adjacent environments. Stainless steel studs hold the speaker securely within the frame. The baffle is finished in textured white epoxy for a neutral, institutional appearance. Installation options include flush or surface-mount configurations depending on the wall or ceiling structure. BAA and TAA compliant for use in federally funded and government construction projects.
Key Features
- Cast Aluminum Frame — Self-aging alloy at 44,000 P.S.I. tensile strength withstands impact and vandalism in institutional settings.
- Stainless Steel Perforated Grille — Corrosion-resistant grille upgrade over standard perforated metal for long-term durability.
- Tamper-Resistant Countersunk Screws — Heat-treated alloy screws require the included special wrench for removal, deterring unauthorized access.
- Neoprene Gasket — Acoustic seal at the mounting interface reduces sound leakage and improves audio performance.
- Stainless Steel Speaker Studs — Hold the 4" cone driver firmly in the baffle frame.
- Flush or Surface-Mount Installation — Adapts to recessed or surface-mounted ceiling and wall configurations.
- BAA and TAA Compliant — Approved for use in government-funded construction and procurement projects.
- Textured White Epoxy Finish — Low-profile institutional finish for healthcare, education, and government environments.
Technical Specifications
| Specification | Value |
|---|---|
| Model | VP161A-R4 |
| Compatible Speaker Size | 4" Cone Speakers |
| Frame Material | Cast Aluminum Alloy (44,000 P.S.I.) |
| Grille Material | Stainless Steel Perforated |
| Height | 10 3/4" (27.305 cm) |
| Depth | 3/4" (1.905 cm) |
| Finish | Textured White Epoxy |
| Shipping Weight | 3.00 lbs (1.36 kg) |
| Compliance | BAA, TAA |
| Warranty Period | 60 months from date of purchase |
