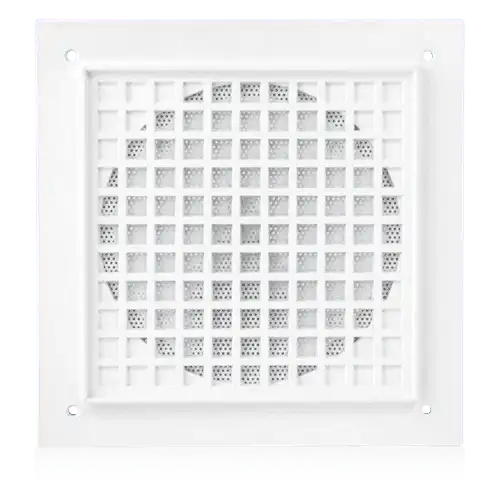

Atlas Sound VP161A-APF – Recessed Vandal-Proof Baffle for APF Loudspeakers
Atlas Sound VP161A-APF – Recessed Vandal-Proof Baffle for APF Loudspeakers is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Atlas Sound VP161A-APF – Recessed Vandal-Proof Baffle for APF Louds...
Product Overview
The Atlas Sound VP161A-APF is a recessed vandal-proof baffle designed to protect re-entrant horn and APF-style loudspeakers in high-security institutional environments. Constructed from a self-aging aluminum alloy rated at 44,000 P.S.I. tensile strength, the VP161A-APF delivers tamper-resistant performance for correctional facilities, transit stations, healthcare facilities, and outdoor-adjacent installations. The unit supports both indoor and outdoor use and meets BAA and TAA requirements for government procurement.
Product Description
The VP161A-APF provides a secure housing for APF re-entrant horn loudspeakers in environments where speaker security is critical. The cast aluminum frame is manufactured from a special self-aging alloy with a tensile strength of 44,000 P.S.I., providing a rigid structure that resists deformation under impact. A perforated cold-rolled steel (CRS) stud-mounting plate reinforces the grille assembly and secures the loudspeaker driver in place. Baffle installation hardware uses heat-treated alloy screws that are countersunk within the frame—an included special wrench is required for removal, preventing unauthorized tampering. A neoprene gasket at the mounting interface provides an acoustic seal that reduces sound leakage and improves audio performance. The grille material has been upgraded to stainless steel perforated construction for improved resistance to corrosion in humid or outdoor-adjacent environments. Stainless steel studs hold the speaker assembly securely inside the baffle frame. The textured white epoxy finish provides a clean, institutional appearance suitable for healthcare, government, and transportation installations. The VP161A-APF may be installed flush or surface-mounted, and is rated for both indoor and outdoor use. BAA and TAA compliant for government and federally funded construction projects.
Key Features
- Cast Aluminum Frame — Self-aging alloy at 44,000 P.S.I. tensile strength provides lasting resistance to vandalism and physical abuse.
- APF / Re-Entrant Horn Compatibility — Designed specifically to protect APF and re-entrant horn speaker formats.
- Stainless Steel Perforated Grille — Upgraded grille material for improved corrosion resistance in harsh or outdoor-adjacent environments.
- Tamper-Resistant Countersunk Screws — Heat-treated alloy screws require the included special wrench, restricting unauthorized access.
- Neoprene Gasket — Acoustic seal at the mounting surface reduces sound leakage and improves audio clarity.
- Indoor and Outdoor Rated — Suitable for a wide range of installation environments including outdoor-facing locations.
- Flush or Surface-Mount Options — Accommodates both recessed and surface-mounted installation configurations.
- BAA and TAA Compliant — Meets requirements for government and federally funded procurement projects.
Technical Specifications
| Specification | Value |
|---|---|
| Model | VP161A-APF |
| Compatible Speaker Type | APF / Re-Entrant Horn Loudspeakers |
| Frame Material | Cast Aluminum Alloy (44,000 P.S.I.) |
| Grille Material | Stainless Steel Perforated |
| Height | 10 3/4" (27.305 cm) |
| Depth | 3/4" (1.905 cm) |
| Finish | Textured White Epoxy |
| Shipping Weight | 3.00 lbs (1.36 kg) |
| Environment Rating | Indoor and Outdoor Use |
| Compliance | BAA, TAA |
| Warranty Period | 60 months from date of purchase |
