Atlas Sound VP14MB – 8" Vandal Resistant Speaker 25V/70V Transformer

Product Overview

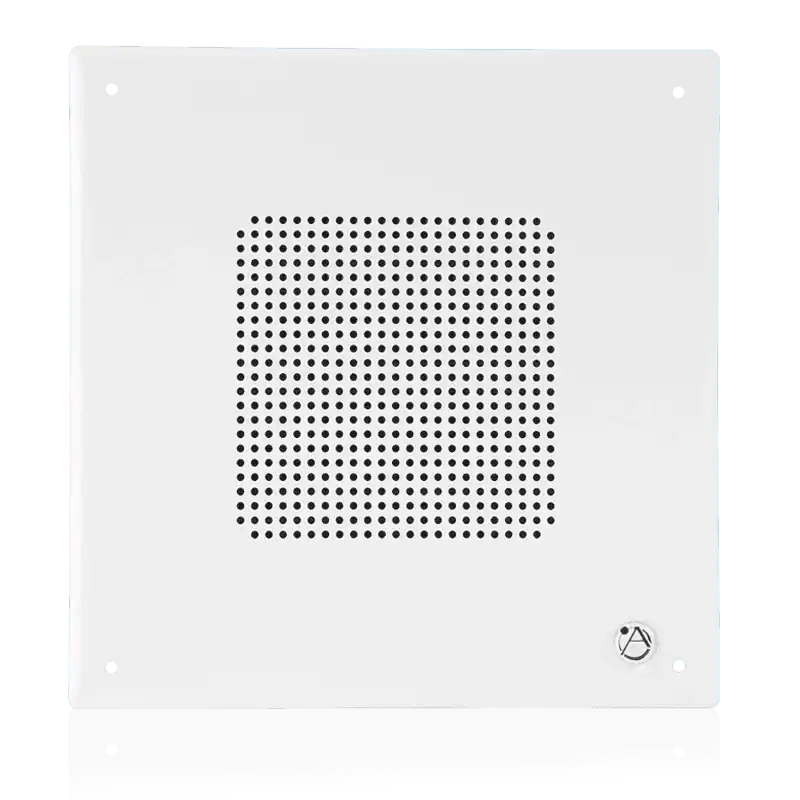

The Atlas Sound VP14MB is an 8-inch vandal resistant surface-mount speaker designed for high-security commercial installations including schools, correctional facilities, and public spaces. Built around a rugged 14-gauge steel baffle with a protective labyrinth screen, the VP14MB delivers highly intelligible speech reinforcement in environments where speaker assemblies are at risk of physical abuse. The included 25V/70.7V transformer with five power taps makes integration into distributed 70V paging systems straightforward.

Product Description

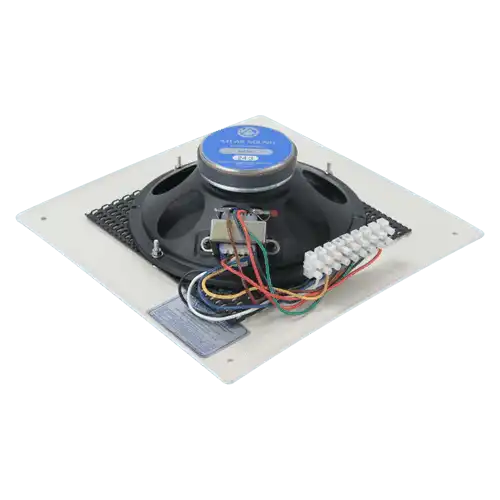

The VP14MB combines a quality 8-inch loudspeaker driver with a pre-assembled 25V/70.7V line transformer, all housed within a slant-face vandal resistant enclosure finished in neutral white. The 9.5-degree sloped baffle directs audio toward listeners rather than straight down, improving speech intelligibility across the coverage area. The protective labyrinth screen shields the cone assembly against physical contact without significantly impacting acoustic performance. A 10-ounce ceramic magnet provides the driving force for the speaker, producing consistent output across a 50Hz to 15kHz frequency range with 105-degree dispersion. The transformer includes five power taps (0.25W, 0.5W, 1W, 2W, and 4W) terminated to a euro-style connector block with three additional empty blocks, allowing through-connection of call switches or intercom stations without the need for wire nuts. This division-of-labor design lets electricians mount the baffle while low-voltage technicians handle the speaker and transformer wiring in a separate phase. The all-steel enclosure construction ensures long-term durability in high-traffic or high-abuse environments. The white finish suits a broad range of institutional interior applications.

Key Features

• 14-Gauge Steel Construction — Withstands physical abuse in high-security environments like correctional facilities and schools.
• Protective Labyrinth Screen — Shields speaker assembly from vandalism while maintaining acoustic clarity.
• 9.5° Sloped Baffle Design — Directs sound toward listeners for improved speech intelligibility.
• 25V/70.7V Transformer Included — Five power taps (0.25W–4W) for straightforward integration into distributed audio systems.
• Euro-Block Connector with Pass-Through Terminals — Allows connection of call switches or intercoms without wire nuts.
• 105° Dispersion — Wide horizontal coverage suitable for corridors, lobbies, and common areas.
• 50Hz–15kHz Frequency Response — Delivers clear voice and paging audio in demanding spaces.
• Division-of-Labor Compatible — Baffle and speaker components ordered separately for phased installation.

Technical Specifications
