Product Overview
The Atlas Sound UHT70C-U51-8 is an 8" in-ceiling speaker assembly listed under UL Standard 1480 for fire-protective signaling systems, including a factory-mounted 5-watt 70.7V transformer and U51-8 baffle. Designed for life safety voice evacuation and emergency notification systems, this speaker combines a fire-retardant, moisture-proof cone with a dual (whizzer) cone driver for high intelligibility across an 85Hz to 8kHz frequency range. The UHT70C-U51-8 is also listed with the California State Fire Marshal (CSFM) and meets BAA and TAA compliance requirements for government and institutional procurement.
Product Description

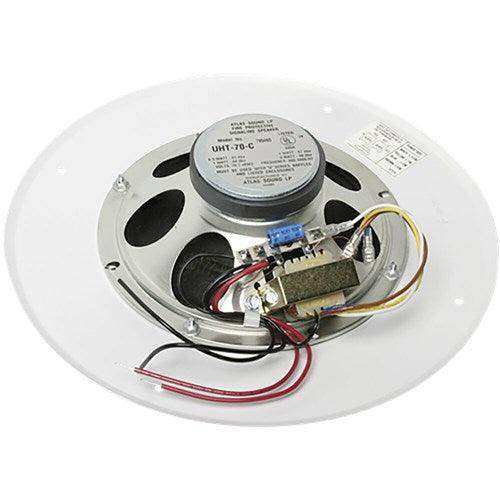

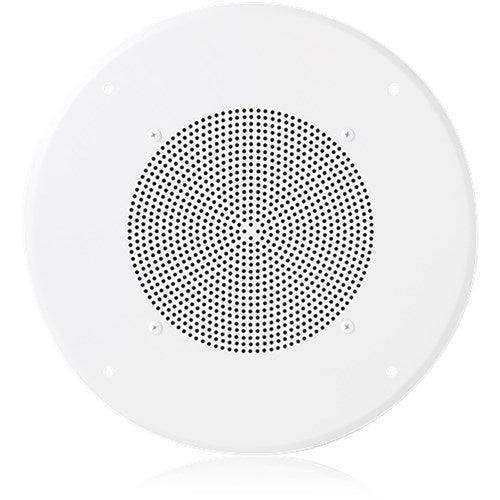

The UHT70C-U51-8 features an 8" single voice coil driver equipped with a dual (whizzer) cone and 10 oz. ceramic magnet to maximize frequency response extension and maintain clear speech intelligibility at the power levels required for fire alarm voice systems. The fire-retardant and moisture-proof cone treatment ensures the speaker meets UL requirements for life safety environments where environmental exposure may occur. A factory-mounted 70.7V transformer provides power taps at 0.5, 1, 2, and 5 watts, allowing system designers to balance load distribution and coverage area. Six-inch color-coded leads simplify field wiring identification, and an integrated DC blocking capacitor protects the voice coil from DC faults on the signaling circuit. The U51-8 baffle provides a clean, unobtrusive ceiling appearance consistent with other architectural finishes in occupied commercial spaces. To comply with UL 1480 requirements, the speaker assembly must be installed with a UL-approved companion enclosure; Atlas offers a selection of compatible enclosures. This speaker is appropriate for office buildings, healthcare facilities, schools, retail environments, and any commercial space requiring code-compliant voice evacuation capability.
Key Features
- UL 1480 Listed — Meets the standard for speakers in fire-protective signaling systems for code-compliant life safety installations.
- CSFM Listed — California State Fire Marshal listed for projects in California.
- Dual (Whizzer) Cone Design — Extends frequency response and maintains high speech intelligibility for voice evacuation.
- Fire-Retardant, Moisture-Proof Cone — UL-required cone treatment for use in fire alarm circuits.
- 70.7V Transformer with Multiple Taps — 0.5, 1, 2, and 5-watt taps for flexible load distribution in distributed systems.
- DC Blocking Capacitor — Protects voice coil from DC faults on the fire alarm signaling line.
- 6" Color-Coded Leads — Simplifies field wiring identification during installation.
- BAA / TAA Compliant — Suitable for government and federally funded projects requiring domestic content compliance.
Technical Specifications
| Specification | Value |
|---|---|
| Frequency Response | 85Hz – 8kHz |
| Sensitivity | 97 dB Peak, 94 dB Avg. |
| Power Taps | 0.5, 1, 2, and 5 Watts |
| Power Rating | 10 Watts |
| Transformer Voltage | 70.7V |
| Diameter | 8" (20.32 cm) |
| Depth | 2 7/8" (7.30 cm) |
| Safety Listing | UL 1480, CSFM Listed |
| Shipping Weight | 4.67 lbs (2.12 kg) |
| Certifications | UL Listed, BAA Compliant, TAA Compliant |
