Atlas Sound TSD-DCPDV – Variable DC Power Distribution for TSD Devices

Product Overview

The Atlas Sound TSD-DCPDV is a compact DC power distribution unit designed to supply and distribute power to multiple TSD series devices and other DC-powered equipment from a single external power supply. It is particularly well-suited for multi-zone audio installations that include volume controls, input selectors, and wireless microphone systems requiring 12–18 VDC. The unit provides six outputs—four fixed 24V outputs and two variable 5–24V outputs—along with two front-panel USB charge ports. Power supply is sold separately.

Product Description

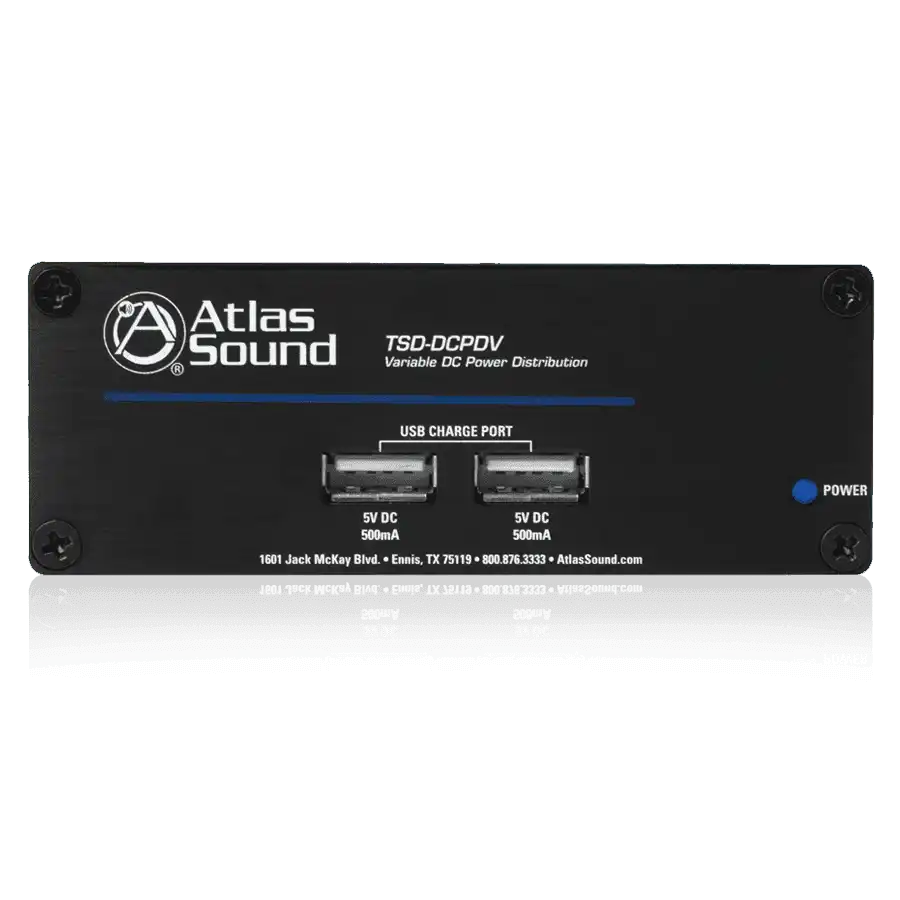

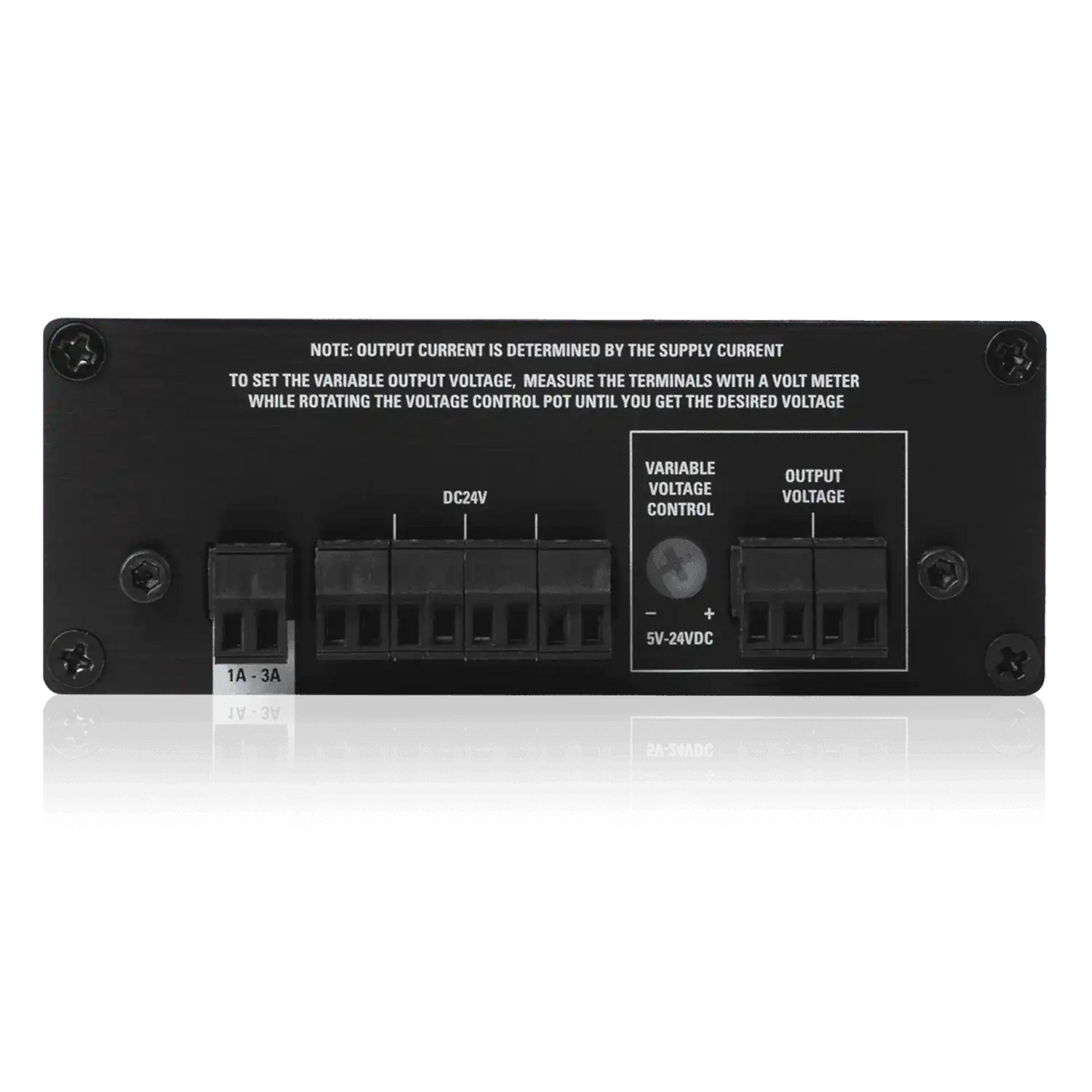

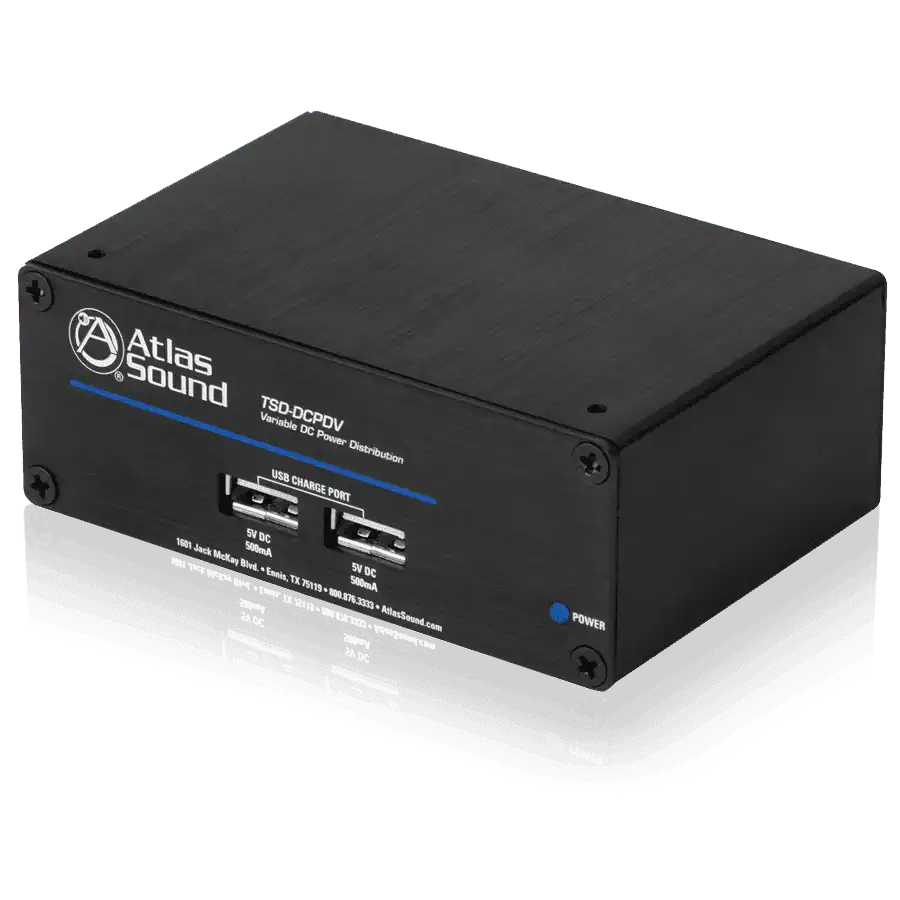

The TSD-DCPDV accepts a single 24V DC input at up to 2500mA and distributes it across six isolated output channels, with DC filtering per channel to minimize noise and crosstalk between devices. Four fixed 24V output ports deliver stable power to standard TSD devices. Two additional variable output ports can be adjusted from 5V to 24V via a secure rear-panel trim pot, enabling compatibility with equipment that requires non-standard voltages such as wireless microphone receivers or other 12V/18V gear. Two front-panel USB-A ports at 5V/1A each are available for charging mobile devices or powering USB rack lighting accessories. The unit’s self-contained 1-in/6-out architecture allows a single TSD power supply to serve an entire TSD installation. Current requirements of all connected devices must be evaluated when selecting the power supply; AtlasIED’s TSD Power Calculator (available on the AtlasIED website) is provided to assist with this calculation. The TSD-DCPDV has a self-consumption of 20mA. The unit is compact at 4 x 1.5 x 2.5 inches and weighs 6 oz, designed for unobtrusive placement in wall cavities, above-ceiling locations, or on rack shelves. CE marked. Warranty is 36 months.

Key Features

• 1-In / 6-Out DC Distribution — Powers up to six devices from one external power supply.
• Four Fixed 24V Outputs — Stable, filtered power for standard TSD devices.
• Two Variable 5–24V Outputs — Trim-pot adjustable; suits wireless mic receivers and other variable-voltage gear.
• Two Front USB Charge Ports — 5V/1A each; charge mobile devices or power USB rack lighting.
• DC Filtering Per Channel — Isolation between outputs reduces noise and interference.
• Separate Ground Connections — Reduces ground loop potential in multi-device installations.
• CE Marked — Meets EU safety and emissions standards.
• Compact Form Factor — 4" x 1.5" x 2.5", 6 oz; fits in wall cavities or above-ceiling spaces.

Technical Specifications
