Atlas Sound T302-120V-T1 – TitanONE Amp Card 70.7V Dual-Channel 300W
Atlas Sound T302-120V-T1 – TitanONE Amp Card 70.7V Dual-Channel 300W is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Atlas Sound T302-120V-T1 – TitanONE Amp Card 70.7V Dual-Channel 300W
What is the Atlas Sound T302-120V-T1?

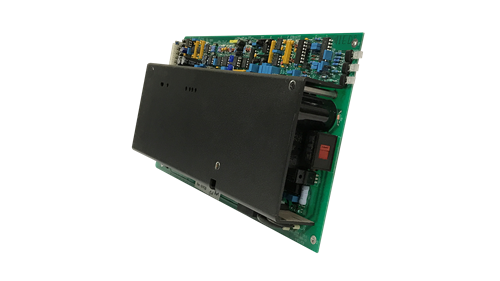

The T302-120V-T1 is a Class D, dual-channel, 300-watt total 70.7V TitanONE amplifier card for the T112 Smart Amplified Mainframe, built for 110–120V AC systems — the entry-level power tier in the TitanONE card lineup.
How does the Atlas Sound T302-120V-T1 work?
Any TitanONE card installs in any T112 slot with no configuration required. Class D operation with an integral switch-mode power supply provides higher efficiency and reliability, and a recessed power switch allows the card to be removed or replaced without affecting other cards installed in the same mainframe.
What are the key features of the Atlas Sound T302-120V-T1?
- 300W total output — Two channels of 150W each at 70.7V.
- Class D efficiency — Lower operating cost and heat than linear designs.
- Hot-swappable — Removable without affecting other cards.
- Fault reporting — Integrates with T112 SystemAssured supervision.
Technical Specifications
| Power Output | 300W Total, 2CH x 150W at 70.7V |
| Voltage | 110–120V AC |
| Amplifier Topology | Class D |
| Signal to Noise | >85dB |
| Frequency Response | 20Hz–20kHz, 25% Rated Power |
| THD | <0.2% @ 2kHz |
| Dimensions | 6.8" H x 1.8" W x 12.5" D |
| Weight | 4.0 lbs (1.8kg) |
| Warranty | 36 months |
Specifications sourced from AtlasIED. Requires an Atlas Sound T112 mainframe. See the Atlas Sound collection.
Frequently Asked Questions
When should I choose this over the T602 or T1202 card?
The T302 is the lowest-power TitanONE card, sized for smaller zones with fewer or lower-wattage speakers than the T602 (600W) or T1202 (1200W).
What warranty applies?
36 months from date of purchase.
