Atlas Sound T1202-230V-T1 – TitanONE Amp Card 100V Dual-Channel 1200W
What is the Atlas Sound T1202-230V-T1?

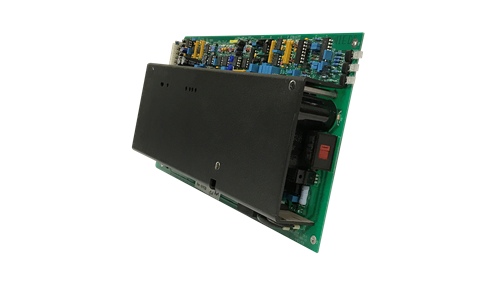

The T1202-230V-T1 is a Class D, dual-channel, 1200-watt total 100V TitanONE amplifier card for the Atlas Sound T112 Smart Amplified Mainframe, built for 220–240V AC electrical systems. It is functionally identical to the T1202-120V-T1 except for input voltage.
How does the Atlas Sound T1202-230V-T1 work?
Any TitanONE card installs in any T112 mainframe slot with no configuration required. Class D operation with an integral switch-mode power supply gives higher efficiency and reliability than linear designs, and a recessed front-panel power switch lets a technician remove or replace this card without affecting any other card in the same mainframe.
What are the key features of the Atlas Sound T1202-230V-T1?
- 1200W total output — Two channels of 600W each at 100V.
- 220–240V AC input — Built for international and dual-voltage electrical systems.
- Hot-swappable — Removable without powering down other cards in the mainframe.
- Fault reporting — Reports to the T112's SystemAssured supervision.
Where is the Atlas Sound T1202-230V-T1 typically used?
- Government space
- Multi-purpose room
- Auditorium
Technical Specifications
| Power Output | 1200W Total, 2CH x 600W at 100V |
| Voltage | 220V – 240V AC |
| Amplifier Topology | Class D |
| Frequency Response | 20Hz–20kHz, 25% Rated Power |
| THD | <0.2% @ 2kHz |
| Dimensions | 6.8" H x 1.8" W x 12.5" D |
| Weight | 4.0 lbs (1.8kg) |
| Certifications | ETL Listed/Recognized UL 60950-1, 62368-1, 864, 2572 |
| Warranty | 36 months |
Specifications sourced from AtlasIED. Requires an Atlas Sound T112 mainframe (sold separately). See the Atlas Sound collection.
Frequently Asked Questions
How is this different from the 120V version?
Identical performance; this card is built for 220–240V AC electrical systems instead of 110–120V.
Does it work in any mainframe slot?
Yes, any slot, no configuration required.
What warranty applies?
36 months from date of purchase.
Does Creation Networks design and install GLOBALCOM systems?
Yes, nationwide — see the Atlas Sound collection.
