Atlas Sound T1202-120V-T1 – TitanONE Amp Card 70.7V Dual-Channel 1200W
What is the Atlas Sound T1202-120V-T1?

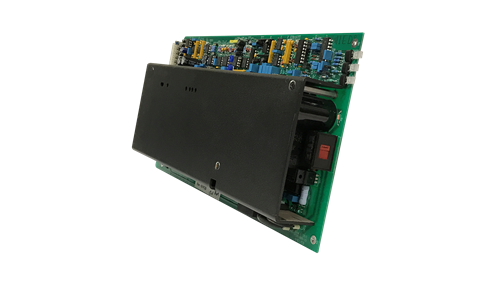

The T1202-120V-T1 is a Class D, dual-channel, 1200-watt total 70.7V TitanONE amplifier card that installs into an Atlas Sound T112 Smart Amplified Mainframe. Any TitanONE card can be placed in any mainframe slot without configuration, and this card is built for 110–120V AC electrical systems.
How does the Atlas Sound T1202-120V-T1 work?
Class D operation combined with an integral switch-mode power supply delivers higher efficiency, increased reliability, and lower operating cost than linear amplifier designs. A front-panel LED indicates power and turns yellow to show channel clipping, and a recessed power switch lets a technician power down and swap a single card without affecting any other card installed in the same T112 mainframe.
What are the key features of the Atlas Sound T1202-120V-T1?
- 1200W total output — Two channels of 600W each at 70.7V for large distributed speaker zones.
- Class D efficiency — Integral switch-mode power supply for lower operating cost and heat generation.
- Hot-swappable in the mainframe — Recessed power switch allows card removal or replacement without affecting other installed cards.
- Fault reporting — Reports status to the T112 mainframe's SystemAssured supervision.
Where is the Atlas Sound T1202-120V-T1 typically used?
- Government space
- Multi-purpose room
- Auditorium
Technical Specifications
| Amplifier Topology | Class D |
| Power Output | 1200W Total, 2CH x 600W at 70.7V |
| Voltage | 110V – 120V AC |
| Signal to Noise Ratio | >85dB |
| Frequency Response | 20Hz – 20kHz, 25% Rated Power |
| THD | <0.2% @ 2kHz |
| Input Impedance | 20kΩ, Balanced |
| Dimensions | 6.8" H x 1.8" W x 12.5" D |
| Weight | 4.0 lbs (1.8kg) |
| Certifications | ETL Listed to UL 60950-1/62368-1, CSA equivalents; ETL Recognized UL 864/2572 |
| Warranty | 36 months |
Specifications sourced from AtlasIED's own product documentation. Requires an Atlas Sound T112 mainframe (sold separately). See the full Atlas Sound collection.
Frequently Asked Questions
Does this card work in any T112 mainframe slot?
Yes. Any TitanONE card may be placed in any of the mainframe's seven slots without configuration.
What's the difference between this and the T1202-230V-T1?
This card is built for 110–120V AC electrical systems; the T1202-230V-T1 is the equivalent card for 220–240V AC systems.
Can I remove this card without powering down the whole rack?
Yes. A recessed power switch lets you power down and remove or replace this single card without affecting any other card in the same mainframe.
What warranty applies?
36 months from date of purchase.
Does Creation Networks design and install GLOBALCOM systems?
Yes, nationwide. See the Atlas Sound collection for the T112 mainframe and compatible cards.
