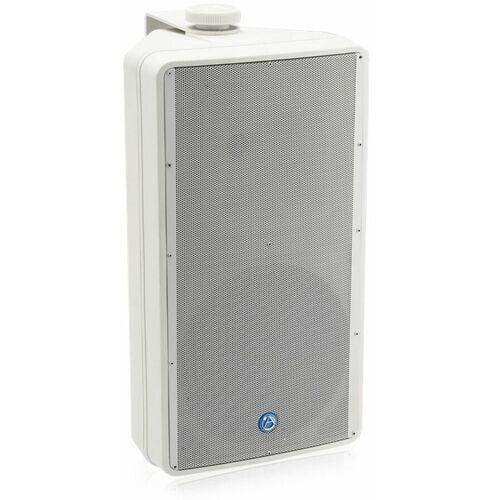

Atlas Sound SM82TUC-WH – 8" 2-Way All-Weather Speaker 70V/100V White

Product Overview

The Atlas Sound SM82TUC-WH is an 8-inch 2-way all-weather surface mount loudspeaker with a screwdriver-selectable 60-watt 70V/100V transformer, UL1480 certified for commercial indoor and outdoor distributed audio applications. Built with UV-resistant polycarbonate/ABS enclosure, powder-coated aluminum grilles, and all-brass hardware inserts, this Strategy Series surface mount speaker withstands salt spray, UV exposure, and humidity for year-round outdoor use. The white finish version suits installations where an unobtrusive, weather-resistant commercial speaker is required in retail, corporate, hospitality, house of worship, and restaurant environments.

Product Description

The SM82TUC-WH is a compact 2-way system combining an 8-inch HYCONE-treated paper woofer with a 1-inch titanium dome high-frequency compression driver cooled by ferrofluid for extended thermal performance. The AtlasIED TRX Control WaveGuide constant-directivity high-frequency director provides smooth, even sound coverage in both vertical and horizontal cabinet orientations, with symmetrical HF dispersion eliminating the need to specify mounting direction. The AtlasIED PolyGuard protection circuit diverts damaging transient signals away from the tweeter, extending component life in high-voltage transient environments. Construction conforms to the 100-hour salt spray test per ASTM B117, making it suitable for coastal, outdoor, and high-humidity installations. The 70V/100V transformer is screwdriver-selectable at 1.9, 3.7, 7.5, 15, 30, and 60-watt taps via a sealed rear switch, with a 1/2" conduit-ready tongue-in-groove cover protecting the input connections from moisture. The included color-matched C-bracket provides easy vertical or horizontal installation, and a 15mm hole accommodates mounting on any AtlasIED mic stand for nearfield applications. Four 1/4"-20 OMNIMOUNT-compatible brass inserts on the rear panel support standard off-the-shelf wall brackets including the OMNIMOUNT 30.0 WB. A two-pole barrier strip input accepts up to two #16 AWG cables. Frequency response is 65 Hz to 20 kHz. The SM82TUC-WH carries a 5-year limited warranty.

Key Features

• UL1480 Certified — Safety listed for use in commercial fire signal and general signaling systems in indoor and outdoor environments.
• All-Weather Construction — UV-resistant PC/ABS enclosure, powder-coated aluminum grilles, and all-brass hardware pass 100-hour salt spray testing per ASTM B117.
• TRX WaveGuide Constant Directivity HF — Constant-directivity wave guide delivers even, accurate high-frequency coverage in both vertical and horizontal mounting orientations.
• PolyGuard HF Protection Circuit — Diverts damaging transient signals from the titanium tweeter to extend high-frequency component life.
• Screwdriver-Selectable 70V/100V Transformer — Six power taps (1.9, 3.7, 7.5, 15, 30, 60W) selected via rear sealed switch without opening the enclosure.
• Titanium HF Compression Driver — 1" titanium dome with ferrofluid cooling for extended high-frequency output and thermal protection.
• OMNIMOUNT-Compatible Rear Inserts — Four 1/4"-20 brass inserts support OMNIMOUNT 30 series and off-the-shelf wall brackets.
• Color-Matched C-Bracket Included — Zinc chromate plated and powder-coated bracket provides vertical or horizontal surface installation out of the box.
• 5-Year Limited Warranty — Extended warranty coverage for commercial installation environments.

Typical Applications

• Commercial meeting space
• House of worship
• Multi-purpose room
• All-hands room
• Auditorium

Technical Specifications

Frequently Asked Questions

Q: Is the SM82TUC-WH suitable for outdoor use?

A: Yes. The speaker is built with UV-resistant polycarbonate/ABS enclosure, powder-coated aluminum grilles, and all-brass hardware, and passes 100-hour salt spray testing per ASTM B117, making it appropriate for year-round outdoor or semi-outdoor commercial installations.

Q: What power taps are available and how are they selected?

A: The screwdriver-selectable transformer provides six taps: 1.9, 3.7, 7.5, 15, 30, and 60 watts. Selection is made via a sealed rear switch without opening the enclosure.

Q: Is the SM82TUC-WH UL listed?

A: Yes. It is UL1480 certified for use in commercial fire signal and general signaling applications.

Q: Can the speaker be mounted horizontally?

A: Yes. The TRX WaveGuide constant-directivity HF system is symmetrical, providing equal coverage in both vertical and horizontal cabinet mounting positions.

Q: What wall mounting brackets are compatible?

A: The rear panel features four 1/4"-20 brass inserts compatible with OMNIMOUNT 30 series brackets. The OMNIMOUNT 30.0 WB is recommended for wall mounting. Off-the-shelf vandal-proof or torx hardware can be substituted using the same inserts.

Q: What is the warranty on the SM82TUC-WH?

A: Atlas Sound provides a 5-year limited warranty on the SM82TUC-WH.
