Atlas Sound SHS-6T2CVR – Hidden Ceiling Speaker with Clean Room Cover
Product Overview
The Atlas Sound SHS-6T2CVR is a strategically hidden ceiling speaker engineered specifically for clean room environments and sensitive air-quality spaces. Designed for paging and notification systems in pharmaceutical facilities, medical labs, and controlled manufacturing areas, this hidden ceiling speaker delivers clear speech transmission through a nearly invisible 3-inch lens without compromising room integrity. The included SHS-CVR clean room cover creates a sealed barrier between the building plenum and the clean space, making it the industry's first speaker solution purpose-built for air-quality-sensitive deployments.
Product Description

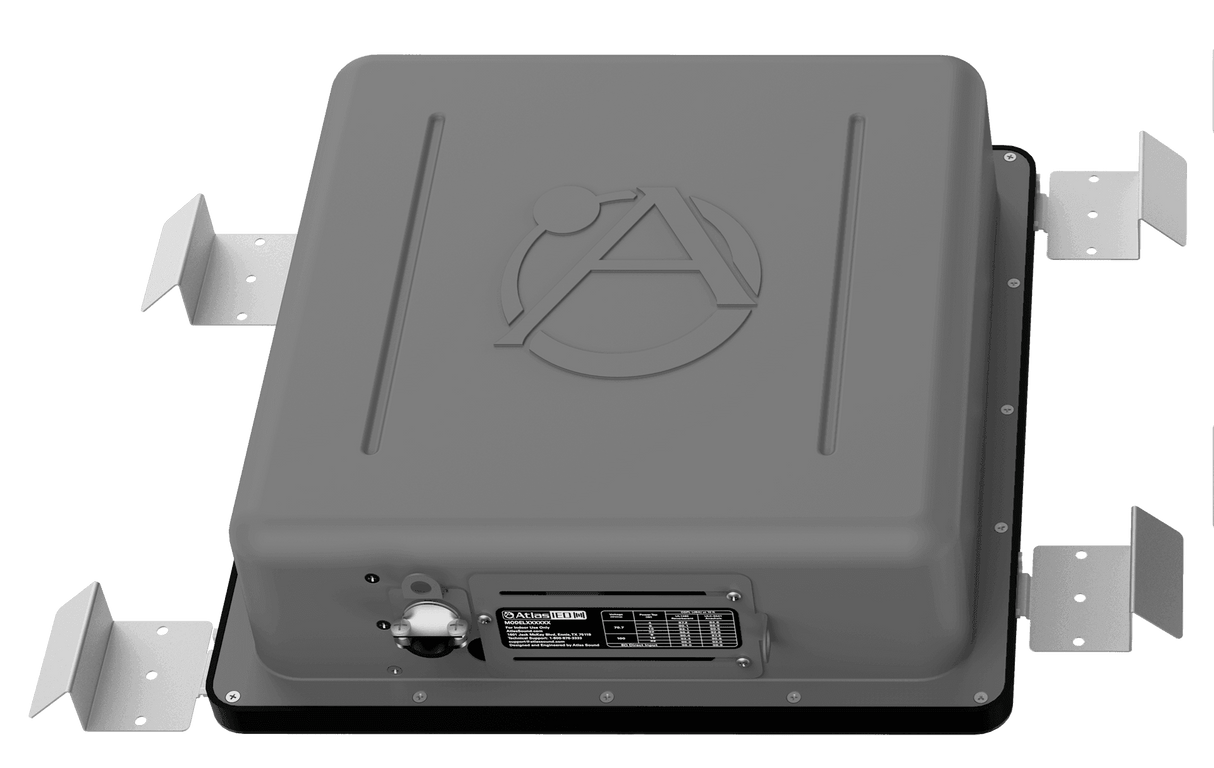

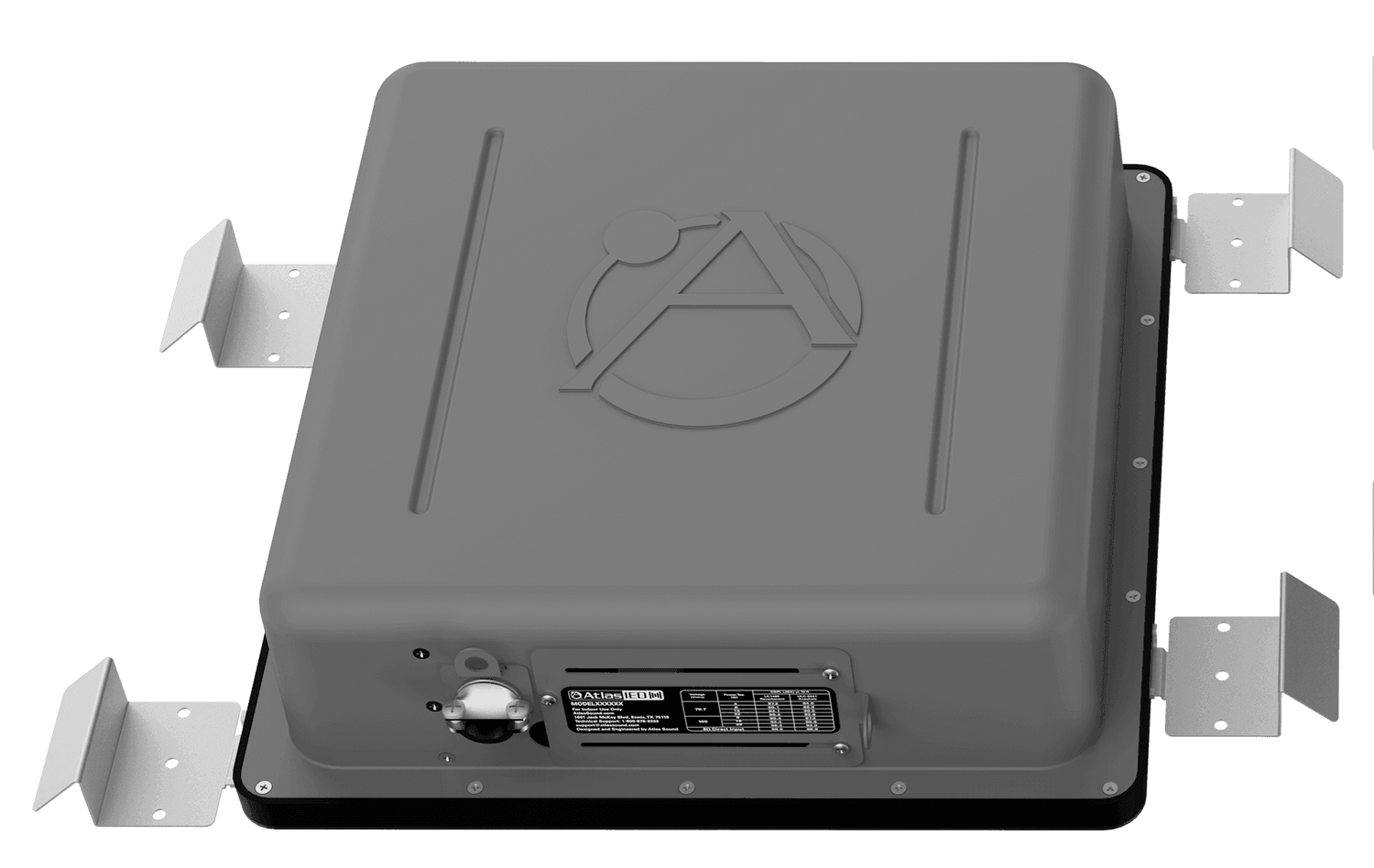

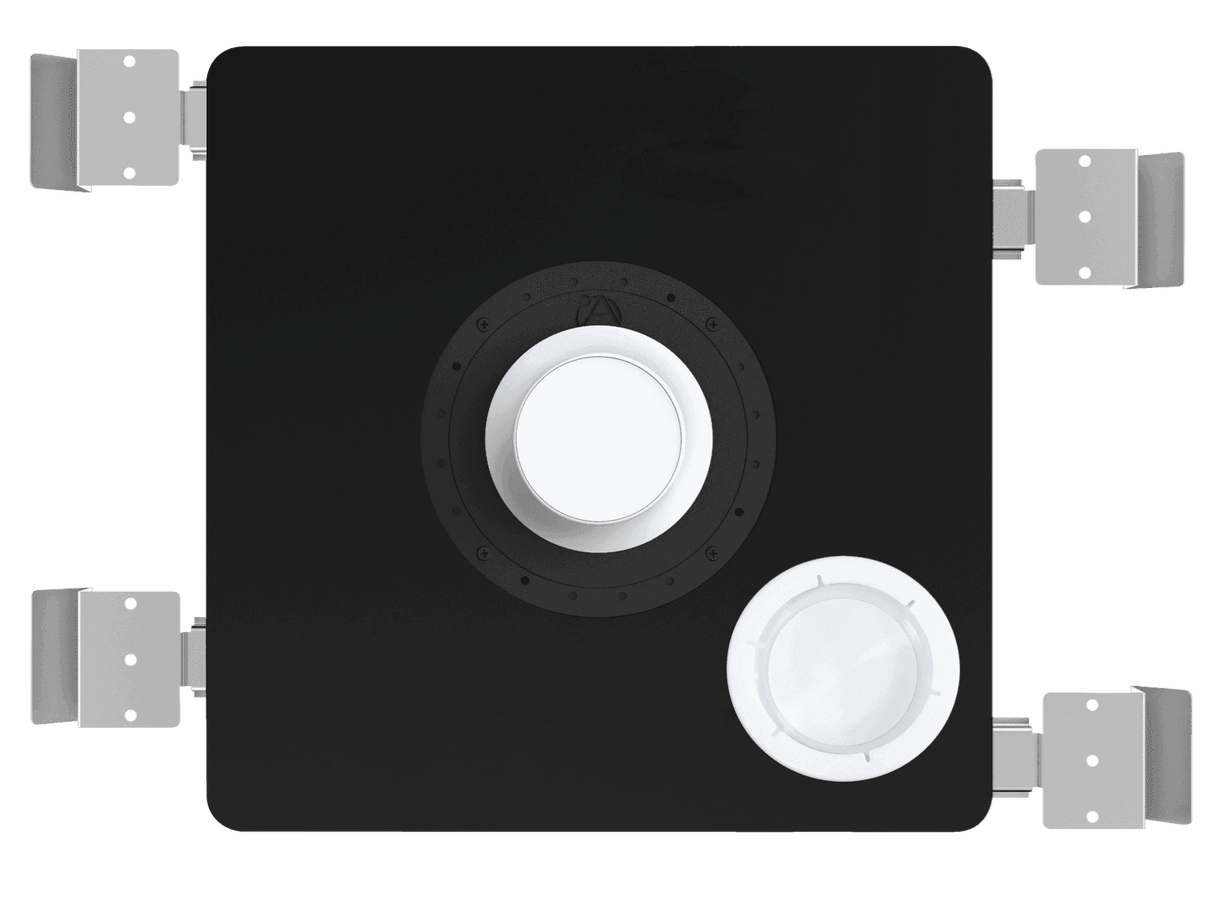

The SHS-6T2CVR combines the aesthetic concealment of the SHS platform with a durable rubber clean room cover that prevents contamination exchange through the ceiling plane. Only a 3-inch diameter lens and a micro trim ring are visible from below — the speaker enclosure, backcan, and wiring are entirely concealed above the ceiling. The speaker is tuned for speech intelligibility, covering a frequency range of 100 Hz to 15 kHz with 86 dB sensitivity and a 4-ohm impedance. Installation is straightforward: an integrated rail system with built-in tile rails requires no rail screws — simply pull the four rails out from the enclosure, drill a 2.75-inch cutout in the ceiling tile, set the speaker through the hole, and install the clean room cover. The system handles up to 75 watts RMS, making it appropriate for distributed paging systems in mid-to-large facilities. The self-contained unit ships with the speaker, enclosure, tile bridge, and the durable rubber SHS-CVR cover. AtlasIED backs this product with a 60-month limited warranty, reflecting its durability in demanding environments.
Key Features
- Clean Room Cover Included — Durable rubber SHS-CVR creates a plenum-to-clean-space barrier, preventing contamination exchange through the ceiling aperture.
- Near-Invisible Aesthetic — Only a 3" lens and micro trim ring are visible; the full enclosure is hidden above the ceiling tile.
- Integrated Rail System — Built-in tile rails require no rail screws; installation requires only a 2.75" ceiling cutout.
- Speech-Optimized Tuning — Frequency response of 100 Hz–15 kHz and 86 dB sensitivity optimized for paging clarity in ambient-noise environments.
- 75W Power Handling — Handles up to 75 watts RMS at 4 ohms for use in commercial distributed audio systems.
- 60-Month Warranty — Industry-leading 5-year limited warranty from AtlasIED.
Typical Applications
- Pharmaceutical and biotech clean rooms requiring paging with air-quality compliance
- Medical and surgical facilities with sensitive air handling requirements
- Controlled manufacturing environments and ISO-certified spaces
- Food processing and laboratory facilities
- Government and institutional spaces with clean-room protocols
Technical Specifications
| Specification | Value |
|---|---|
| Model | SHS-6T2CVR |
| RMS Output Power | 75 W |
| Frequency Response | 100 Hz – 15 kHz |
| Impedance | 4 Ohm |
| Sensitivity | 86 dB |
| Cutout Diameter | 2.75" |
| Form Factor | Ceiling Mountable |
| Package Contents | Speaker Enclosure, Tile Bridge, Durable Rubber Clean Room Cover (SHS-CVR) |
| Warranty | 60 Month Limited |
Frequently Asked Questions
Q: What does the SHS-CVR cover actually do?
A: The SHS-CVR is a durable rubber cover that installs over the SHS ceiling opening to create a physical barrier between the building plenum and the clean space below, preventing air and particulate exchange through the speaker aperture.
Q: Is this speaker compatible with standard 70V distributed audio systems?
A: The SHS-6T2CVR operates at 4 ohms / 75W and is designed for use with a separate transformer for 70V/100V line systems. Confirm transformer compatibility with your system amplifier before installation.
Q: How large is the ceiling cutout required?
A: A 2.75-inch (approximately 70mm) diameter hole is required in the ceiling tile for installation.
Q: Can the lens be custom colored to match the ceiling?
A: Yes. AtlasIED's DesignLab custom match process (ordered separately as SHS-CUST) can UV-print the lens and trim ring to match virtually any ceiling color and texture.
Q: What is the warranty on this product?
A: AtlasIED provides a 60-month (5-year) limited warranty on the SHS-6T2CVR.
Q: Does installation require special tools?
A: No special tools are required beyond a drill for the 2.75" cutout. The integrated rail system deploys without rail screws.
