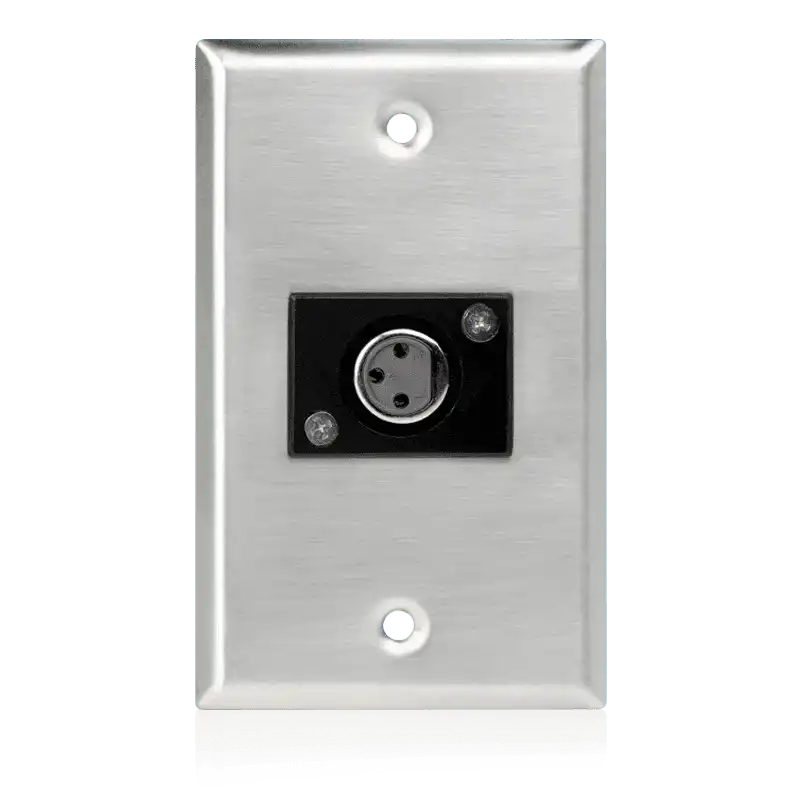

Atlas Sound SG-XLR-F1 – Single Gang Stainless Steel XLR Wall Plate
Product Overview
The Atlas Sound SG-XLR-F1 is a single-gang stainless steel wall plate with a single female 3-pin XLR connector, designed for permanent microphone input installations in commercial AV environments. It provides a professional-grade, fixed connection point for microphones at podiums, stage walls, conference rooms, and recording spaces. The stainless steel construction and standard single-gang box mounting make the SG-XLR-F1 a durable and straightforward addition to any installed audio system.
Product Description
The Atlas Sound SG-XLR-F1 delivers a dedicated female XLR connection point on a professional stainless steel wall plate sized for standard single-gang electrical boxes. The 3-conductor female XLR connector accepts balanced microphone-level signals from dynamic, condenser, or ribbon microphones, making it ideal for permanently installed microphone drops in performance venues, conference facilities, houses of worship, and broadcast environments. Standard box-mount center spacing of 3-9/32" (83mm) ensures the plate fits any standard single-gang wall box. Plate mounting hardware is included for a complete installation package. The stainless steel faceplate provides corrosion resistance and a polished professional appearance that complements installed AV equipment. The SG-XLR-F1 is compatible with standard XLR panel connectors and is a natural complement to the SG-QTRSL-F1 TRS plate for multi-connection wall panel configurations. The 60-month warranty reflects Atlas Sound's commitment to commercial-grade quality.
Key Features
- Female 3-Pin XLR Connector — Accepts balanced microphone-level signals from standard XLR microphone cables.
- Stainless Steel Faceplate — Corrosion-resistant and professional in appearance for permanent installations.
- Standard Single-Gang Box Mount — 3-9/32" (83mm) center spacing fits standard electrical box openings.
- Plate Mounting Hardware Included — Complete installation package for wall and panel deployment.
- Remote Microphone Applications — Ideal for microphone drops at podiums, stage pockets, conference tables, and broadcast positions.
- 60-Month Warranty — Atlas Sound standard commercial warranty.
Technical Specifications
| Specification | Value |
|---|---|
| Model | SG-XLR-F1 |
| Connector Type | Female 3-pin XLR |
| Gang | Single gang |
| Material | Stainless steel |
| Box Mount Center | 3-9/32" (83mm) |
| Height | 4-3/4" (12.07 cm) |
| Width | 2-15/16" (7.46 cm) |
| Shipping Weight | 0.50 lbs (0.23 kg) |
| Warranty | 60 months from date of purchase |
