Atlas Sound SG-QTRSL-F1 – Single Gang Stainless Steel TRS Wall Plate
Product Overview

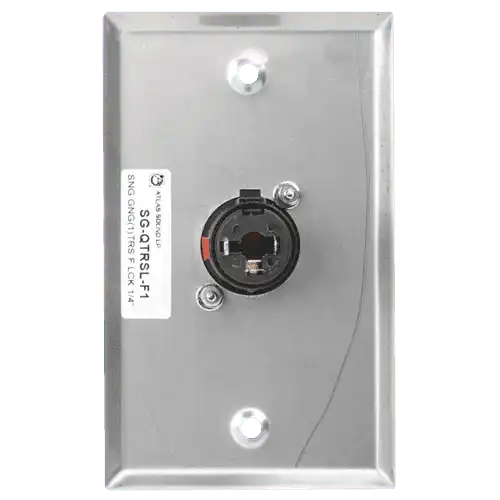

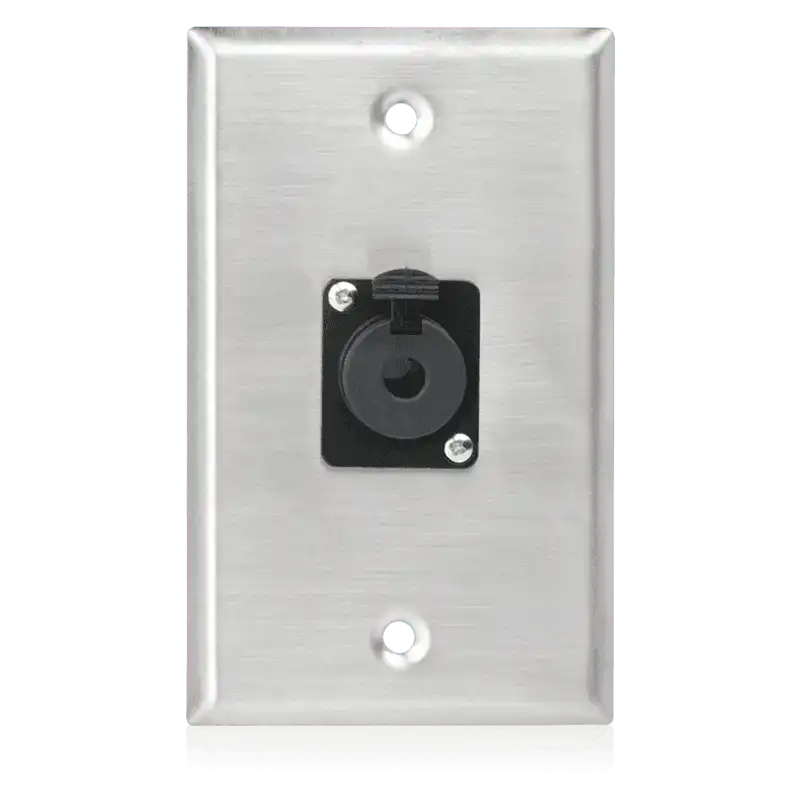

The Atlas Sound SG-QTRSL-F1 is a single-gang stainless steel wall plate featuring a single female locking TRS connector for professional audio signal routing in commercial AV installations. It provides a durable, polished mounting point for line-level audio connections at podiums, conference tables, stage pockets, and wall-box locations. The locking TRS connector prevents accidental disconnection during use, making it suitable for live event and installed AV environments.
Product Description
The Atlas Sound SG-QTRSL-F1 wall plate delivers a professional-grade audio connection point using a stainless steel faceplate and a single female locking 1/4-inch TRS connector. The locking connector design prevents cables from being accidentally pulled free, which is particularly valuable in performance spaces, houses of worship, and conference rooms where cable management reliability is critical. Standard box-mount center spacing of 3-9/32" (83mm) ensures compatibility with standard single-gang electrical boxes, simplifying installation in new construction and retrofit projects. Plate mounting hardware is included. The stainless steel finish offers corrosion resistance and a professional appearance that complements installed AV and commercial audio environments. The SG-QTRSL-F1 is ideal for line-level input/output applications where a permanent wall or panel connection point is needed. The 4-3/4" x 2-15/16" plate dimensions fit standard single-gang wall box openings.
Key Features
- Female Locking TRS Connector — Prevents accidental cable disconnection in performance and installed AV environments.
- Stainless Steel Faceplate — Corrosion-resistant finish for professional appearance and durability.
- Standard Single-Gang Box Mount — 3-9/32" (83mm) center spacing fits standard electrical box openings.
- Plate Mounting Hardware Included — Complete installation package for wall and panel mounting.
- Line-Level I/O Applications — Suitable for balanced and unbalanced line-level signal routing in commercial audio systems.
- 60-Month Warranty — Atlas Sound standard commercial warranty.
Technical Specifications
| Specification | Value |
|---|---|
| Model | SG-QTRSL-F1 |
| Connector Type | Female locking 1/4" TRS |
| Gang | Single gang |
| Material | Stainless steel |
| Box Mount Center | 3-9/32" (83mm) |
| Height | 4-3/4" (12.07 cm) |
| Width | 2-15/16" (7.46 cm) |
| Shipping Weight | 0.50 lbs (0.23 kg) |
| Warranty | 60 months from date of purchase |
