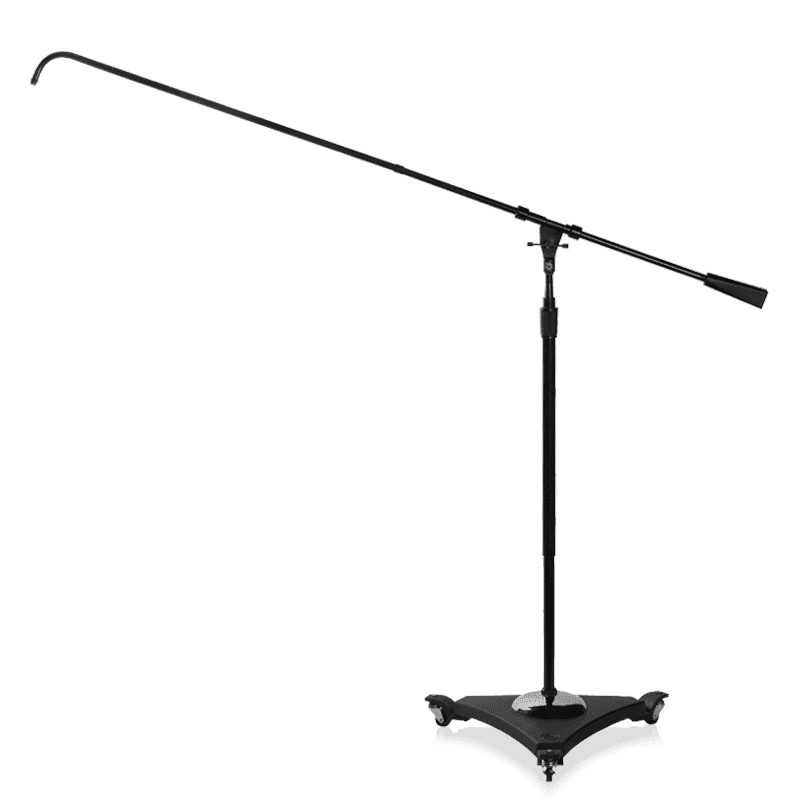

Atlas Sound SB11WE – Studio Boom Mic Stand Air Suspension Ebony

Product Overview

The Atlas Sound SB11WE is a professional studio boom mic stand designed for small studio and broadcast applications, as well as stage miking of drums and percussion instruments. With an adjustable height range of 43 to 68 inches and a 60-inch two-piece horizontal boom, this microphone stand with air suspension system delivers the reach and stability required for demanding recording environments. The ebony epoxy finish, wearproof grip-action clutch, and piston-type air suspension make this one of the most reliable studio boom mic stands for professional AV installations.

Product Description

Built on a triangular die-cast base with edge-concentrated weight distribution, the SB11WE provides exceptional stability during studio sessions and live stage use. Three hard rubber swivel casters allow the stand to be repositioned silently and without effort, a critical feature in active broadcast and recording environments. The 60-inch horizontal boom is constructed of steel tubing and includes a Performer Series swivel clamp and an adjustable 2-lb. counterweight for precise boom arm balance. A 90-degree angled end ensures optimum microphone positioning, and the standard 5/8"-27 threaded tip accepts all microphones, holders, and adapters. The vertical tube assembly uses 1-1/8" and 7/8" diameter cold rolled steel, offering height adjustment from 43 to 68 inches via a wearproof grip-action clutch for positive locking without noise or slippage. The variable piston-type air suspension system isolates the microphone from vibration and shock, protecting sensitive capsules during repositioning. The entire assembly is finished in a non-reflective ebony epoxy coating for a professional, stage-ready appearance. Atlas Sound warrants this stand for 60 months from the date of purchase.

Key Features

• Variable Piston-Type Air Suspension — Isolates the microphone from vibration and mechanical shock, protecting capsules during boom arm movement.
• Adjustable Counterweight — A 2-lb. adjustable counterweight provides precision balance and stability across the full range of boom positions.
• Wearproof Three-Piece Clutch — Provides secure, fast, and noise-free height and boom adjustment without tool requirements.
• Silent Swivel Casters — Three hard rubber casters allow effortless, quiet repositioning without disrupting recordings or live performances.
• 60" Two-Piece Steel Boom — Extended reach accommodates drum overhead miking, broadcast desk setups, and wide-format stage configurations.
• 5/8"-27 Threaded Tip — Industry-standard thread accepts all microphones, shock mounts, holders, and adapters without adapters.
• 43" to 68" Height Range — Adjustable cold rolled steel vertical assembly covers seated to standing vocal and instrument applications.
• Non-Reflective Ebony Finish — Camera-friendly matte epoxy coating minimizes glare and light reflection in broadcast and video production environments.

Typical Applications

• Broadcast studio
• House of worship
• Auditorium
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

Q: What microphone thread standard does the SB11WE use?

A: The SB11WE terminates in a standard 5/8"-27 thread, which is compatible with all professional microphones, shock mounts, holders, and adapters.

Q: Can the boom arm reach over a full drum kit?

A: Yes. The 60-inch two-piece horizontal boom, combined with the 90-degree angled end, provides the reach needed for overhead drum and percussion miking.

Q: What does the air suspension system protect against?

A: The variable piston-type air suspension isolates the microphone from mechanical vibration and shock that occurs when repositioning the boom arm, protecting sensitive condenser capsules.

Q: Are replacement clutch and tube assemblies available?

A: Yes. Atlas Sound offers the MS20E-K clutch assembly and the MS2025TE tube assembly as separate replacement parts for the SB11WE.

Q: What is the warranty on the SB11WE?

A: Atlas Sound covers the SB11WE with a 60-month (5-year) limited warranty from the original date of purchase.

Q: Can this stand be used in broadcast video environments?

A: Yes. The non-reflective ebony epoxy finish minimizes on-camera glare, and the silent swivel casters allow repositioning without audio artifacts during live or recorded sessions.
