Atlas Sound ROCKFA62T-BR – Outdoor Rock Speaker 32W 70V Transformer Brown

Product Overview

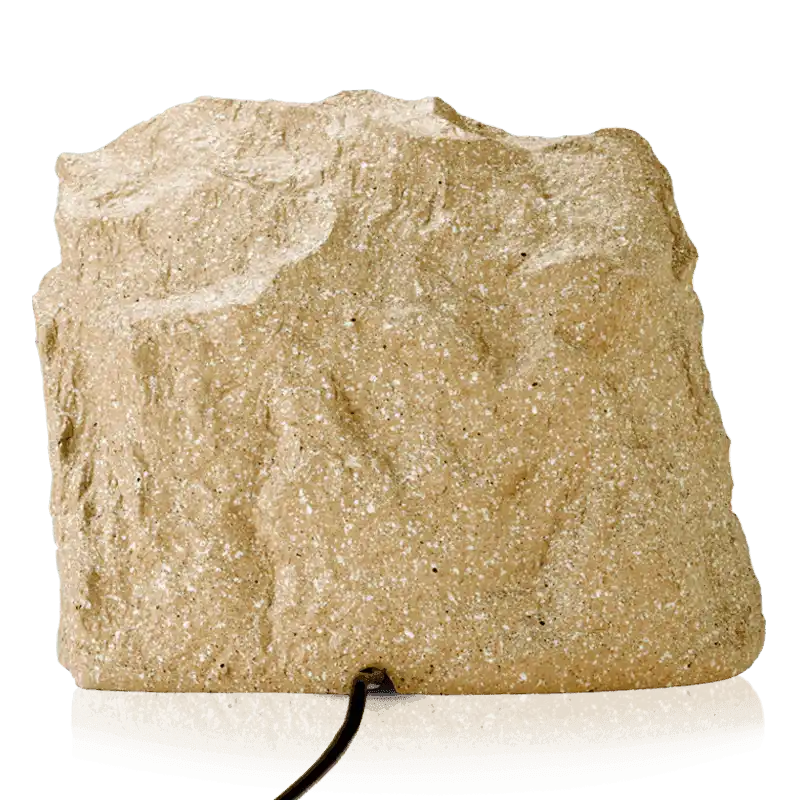

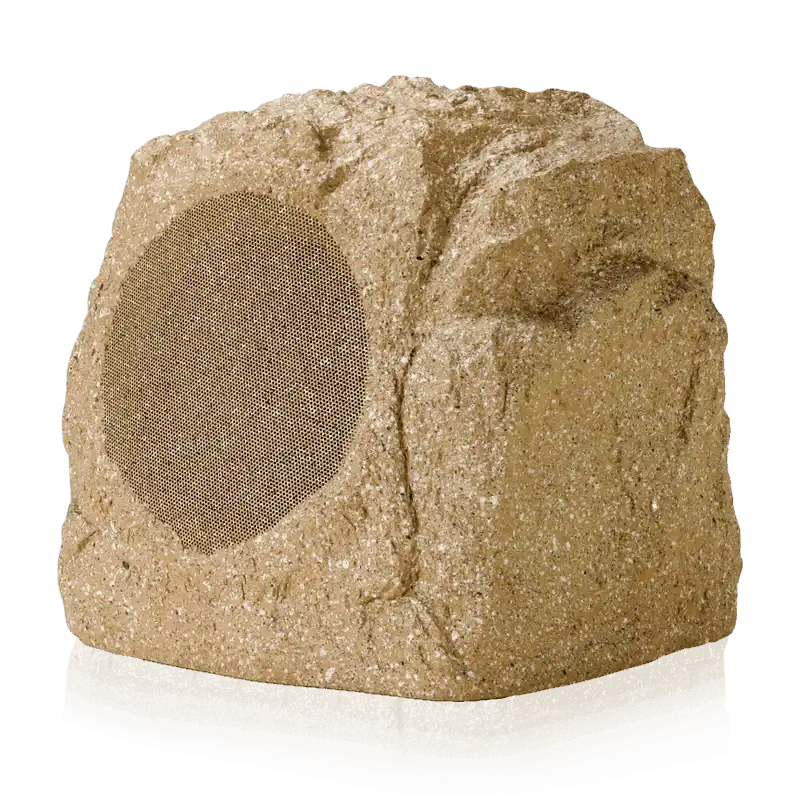

The Atlas Sound ROCKFA62T-BR is an all-weather outdoor landscape speaker designed to blend into natural environments with a brown granite-look enclosure. It delivers Strategy Series sound quality from a 6-inch coaxial driver system with an integrated 32-watt 70.7V/100V transformer, making it a complete outdoor 70V speaker solution for commercial landscape audio systems. The ROCKFA62T-BR is IP55-rated for weather resistance and includes an embedded underground eyebolt for theft prevention, making it a practical choice for outdoor distributed audio in hospitality, restaurant patio, resort, and commercial landscape deployments.

Product Description

The ROCKFA62T-BR packages the proven Strategy Series FA136 driver in a simulated brown granite rock enclosure optimized for ground-level outdoor placement. The speaker system uses a 6-inch woofer with a Kevlar-treated cone and synthetic rubber surround for durability in moisture and UV-exposed environments, paired with a 1/2-inch PEI (Polyetherimide) dome high-frequency tweeter crossed over at 5 kHz. Frequency response extends from 80 Hz to 20 kHz, providing full-range musical reproduction for background music applications. Power handling is 50 watts (32 watts via the built-in transformer), and sensitivity is rated at 88 dB. The 110-degree horizontal dispersion pattern ensures broad coverage from a single speaker placement. The internal 32-watt 70.7V/100V transformer terminates to a 24-inch direct-burial-rated pigtail that includes conductors for all transformer taps plus a 1:1 connection for 8-ohm direct drive. This flexibility allows the ROCKFA62T-BR to work in both constant-voltage distributed systems and direct-impedance configurations. The speaker is optimized to complement the FAP62T (under-eave) and SM63T (on-wall) for integrated outdoor audio coverage systems. The embedded underground eyebolt provides a security anchor to deter theft in public or semi-public outdoor areas. IP55 protection ensures reliable operation in rain, dust, and humid conditions. The 60-month warranty applies to this unit.

Key Features

• Natural Brown Granite-Look Enclosure — Simulated rock aesthetic blends into landscaping for minimal visual impact in outdoor installations.
• 6" Coaxial Driver with Kevlar Cone — Kevlar-treated woofer cone and synthetic rubber surround resist moisture and UV degradation.
• Internal 32W 70.7V/100V Transformer — Includes all tap conductors and a 1:1 connection for direct 8Ω operation, supporting both distributed and direct-drive systems.
• IP55 Weather Resistance — Sealed against dust and water jets for reliable outdoor performance year-round.
• 110-Degree Horizontal Dispersion — Wide coverage pattern from a single ground-level placement.
• Embedded Underground Eyebolt — Security anchor deters theft in public outdoor installations.
• Direct-Burial Rated 24" Pigtail — Pre-terminated cable suited for underground wiring in landscape deployments.
• 60-Month Warranty — AtlasIED's 5-year warranty on Strategy Series landscape speakers.

Technical Specifications
