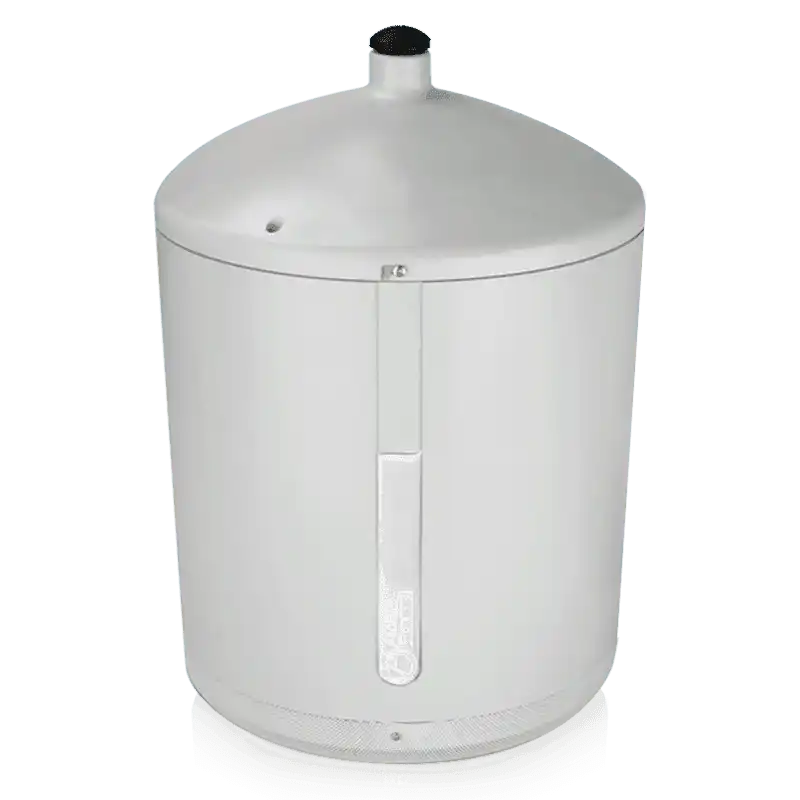

Atlas Sound PM8FA-WH – 8" 2-Way Pendant Mount Speaker 60W 70.7V (White)

Product Overview

The Atlas Sound PM8FA-WH is an 8-inch, 2-way pendant mount speaker in white featuring a 60-watt 70.7V transformer and 8-ohm direct input capability, designed for commercial distributed audio systems in low-ceiling and open-structure environments. Using the same FA138 coaxial driver found in AtlasIED's FAP82T in-ceiling package, the PM8FA-WH delivers full-range frequency response from 65Hz to 20kHz for both music and paging applications. This speaker is well suited as a commercial pendant speaker for 70V distributed systems, an 8-inch down-firing speaker for retail background music, and a wide-coverage speaker for open-beam ceilings.

Product Description

The PM8FA-WH mounts as a down-firing pendant, providing wide 100-degree coverage at the 2kHz octave band with 50 degrees off-axis, making it an effective choice for spaces where ceiling-mount options are not available or desirable, such as open-beam warehouses, atriums, gymnasiums, and covered outdoor areas. The speaker enclosure is designed to be visually unobtrusive in finished interiors while delivering the same acoustic performance as AtlasIED's in-ceiling FA Series products. The integrated 70.7V transformer provides six selectable power taps: 1.9W, 3.8W, 7.5W, 15W, 30W, and 60W, as well as an 8-ohm direct input via a concealed terminal block, giving the installer full flexibility for both constant-voltage distributed systems and low-impedance amplifier direct connections. A 3-meter cable kit with a self-gripping ferrule system is included for installations on open beam ceilings, and the speaker is also compatible with standard 3/4-inch ceiling fan hardware for down-pipe installations from hard ceilings. The IPX3 moisture resistance rating makes the PM8FA-WH suitable for semi-outdoor and high-humidity environments. AtlasIED provides a 60-month warranty, reflecting the product's durability in permanent installations.

Key Features

• FA138 Coaxial Driver — The same 8" driver used in the FAP82T in-ceiling package for proven full-range performance.
• Full-Range Frequency Response — 65Hz – 20kHz for accurate reproduction of both speech and music program material.
• Six 70.7V Power Taps — 1.9, 3.8, 7.5, 15, 30, and 60 watts for flexible zone level management in distributed systems.
• 8-Ohm Direct Input — Concealed terminal block supports low-impedance amplifier connections where a transformer is not needed.
• 100-Degree Coverage Pattern — Wide dispersion at the 2kHz octave band; 50 degrees off-axis for effective area coverage.
• 3-Meter Cable Kit Included — Self-gripping ferrule system for clean installation on open beam ceiling structures.
• Standard 3/4" Ceiling Fan Hardware Compatible — Allows down-pipe installation from hard ceiling materials using widely available hardware.
• IPX3 Moisture Rating — Suitable for semi-outdoor, covered outdoor, and high-humidity environments.
• 90dB Average Sensitivity — Efficient enough for use with low-power distributed amplifiers across typical commercial zones.

Typical Applications

• Commercial meeting space
• Multi-purpose room
• House of worship
• Auditorium
• All-hands room
• Training room
• Boardroom

Technical Specifications

Frequently Asked Questions

Q: Can the PM8FA-WH be used on a 70V distributed amplifier system?

A: Yes. The integrated 70.7V transformer provides six selectable wattage taps (1.9W, 3.8W, 7.5W, 15W, 30W, and 60W), making it directly compatible with 70V or 100V distributed amplifier systems. A concealed terminal block also allows 8-ohm direct connection for low-impedance applications.

Q: What mounting hardware is required for open beam ceiling installations?

A: A 3-meter cable kit with a self-gripping ferrule system is included with the PM8FA-WH for open beam ceiling installations. No additional hardware is needed for this mounting method.

Q: Can the PM8FA-WH be installed from a hard ceiling?

A: Yes. For hard ceiling installations, any standard 3/4-inch ceiling fan installation kit can be used to provide the down-pipe support needed. This hardware is widely available and not included in the package.

Q: Is the PM8FA-WH suitable for outdoor use?

A: The PM8FA-WH has an IPX3 moisture resistance rating, meaning it can withstand dripping and light spraying water. It is appropriate for covered outdoor areas, semi-outdoor environments, and high-humidity indoor spaces, but is not rated for direct exposure to rain or submersion.

Q: What is the difference between the PM8FA-WH and the PM8FA-B?

A: The PM8FA-WH and PM8FA-B are acoustically identical products that differ only in color finish: white (WH) and black (B). Select the color that matches your ceiling or interior design requirements.

Q: What amplifier power is recommended for a typical zone using the PM8FA-WH at the 30W tap?

A: At the 30W tap with 90dB sensitivity, a 30-watt zone allocation from a 70V amplifier is appropriate for spaces up to approximately 2,500 square feet depending on ceiling height and ambient noise level. For paging applications requiring higher intelligibility, operating at a lower tap (7.5W or 15W) and increasing the number of speakers may improve coverage uniformity.

Q: Does the PM8FA-WH include installation documentation?

A: Yes. AtlasIED provides a PM Series Install Sheet and data sheet. Revit drawings and EASE/CLF data files are also available from AtlasIED for acoustical modeling and BIM integration.
