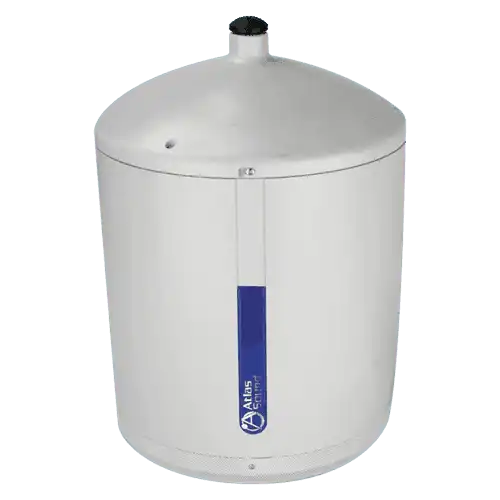

Atlas Sound PM4FA-W – 4" 2-Way Pendant Mount Speaker with 16W 70.7V Transformer, White
Atlas Sound PM4FA-W – 4" 2-Way Pendant Mount Speaker with 16W 70.7V Transformer, White is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Atlas Sound PM4FA-W – 4" 2-Way Pendant Mount Speaker with 16W ...
Product Overview
The Atlas Sound PM4FA-W is a 4-inch two-way pendant-mount loudspeaker in white finish, designed for distributed 70.7-volt audio systems in commercial and institutional spaces with low ceiling heights. It uses the FA134 Strategy Series driver—the same component found in the popular FAP42T in-ceiling package—mounted in a down-firing pendant enclosure for wide, even coverage. The PM4FA-W suits background music and paging applications where in-ceiling installation is not practical.
Product Description
The PM4FA-W houses the 4-inch FA134 coaxial driver in an attractive pendant enclosure that hangs down-firing from the ceiling, projecting sound downward into the listening area. The FA134 driver provides 130-degree dispersion at 2 kHz (65 degrees off-axis), delivering wide horizontal coverage from a single unit—particularly valuable in spaces with 10-foot or lower ceilings. The integrated 70.7V transformer offers taps at 1, 2, 4, 8, and 16 watts, with an 8-ohm direct input available via a concealed terminal block. Mounting uses standard 3/4-inch ceiling fan hardware, simplifying installation in locations where mounting hardware is already present. Three meters of 2mm cable and all mounting hardware are included. The PM4FA-W is well-suited for retail spaces, reception areas, atriums, and other low-ceiling commercial environments where full-range audio quality and clean aesthetics are both required.
Key Features
- FA134 Coaxial 4" Driver — Full-range 2-way design for both music and paging reproduction.
- 130° Dispersion at 2 kHz — Wide coverage from a single unit; ideal for low-ceiling commercial spaces.
- 16W 70.7V Internal Transformer — Taps at 1, 2, 4, 8, and 16W plus 8-ohm direct input via concealed terminal block.
- Down-Firing Pendant Design — Projects audio directly into the listening area for maximum intelligibility at low mounting heights.
- Compatible with 3/4" Ceiling Fan Hardware — Uses standard mounting hardware for simplified installation.
- 3m Cable & Hardware Included — Ready to install without sourcing additional materials.
- White Finish — Discreet, attractive enclosure suited for customer-facing commercial environments.
Technical Specifications
| Specification | Value |
|---|---|
| Speaker Type | Coaxial (2-Way) |
| Driver | 4" FA134 Strategy Series |
| Power Taps | 1, 2, 4, 8, 16W & 8Ω direct |
| Dispersion | 130° (65° off-axis) at 2 kHz |
| Height | 13 7/8" (35.23 cm) |
| Diameter | 9 1/4" (23.50 cm) |
| Shipping Weight | 10.00 lbs (4.54 kg) |
| Cable Included | 3 meters, 2mm |
| Finish | White |
