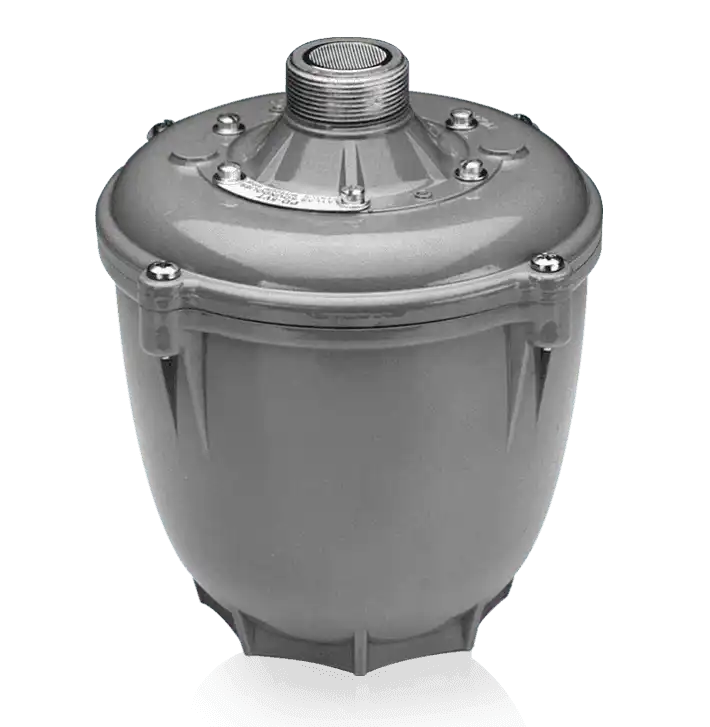

Atlas Sound PD60AT – 60-Watt Compression Driver with 70V Transformer for Horn Speakers
Atlas Sound PD60AT – 60-Watt Compression Driver with 70V Transformer for Horn Speakers is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Atlas Sound PD60AT – 60-Watt Compression Driver with 70V Transforme...
Product Overview
The Atlas Sound PD60AT is a fully environment-resistant 60-watt compression driver engineered for large format horn speakers in high-ambient-noise indoor and outdoor public address applications. Paired with an integrated 70V line-matching transformer, this horn driver covers a frequency range of 100 Hz to 3.7 kHz and delivers consistent high-SPL performance for stadium, campus, industrial, and transportation facility PA systems. The Vari-Tap Control/Connect Center and varnish-impregnated transformer ensure reliability and installation flexibility across a wide range of 70V distributed system architectures.
Product Description
The PD60AT compression driver is purpose-built for large-format horn loudspeaker systems where power and environmental durability are priorities. Its 60-watt power rating and 100 Hz to 3.7 kHz frequency response make it appropriate for both speech-intelligibility-critical paging systems and general public address in environments with significant background noise. The integrated Atlas Sound Vari-Tap Control/Connect Center features a screwdriver-selectable ohms/watts switch for easy tap selection without additional tools. The 70V line-matching transformer is varnish-impregnated for maximum environment resistance and long service life. A protective terminal cover with built-in strain relief secures cable connections against vibration and weather exposure. The driver terminates in a standard 1-3/8"-18 thread male coupling for direct compatibility with screw-on large format horns. The die-cast housing and polycarbonate components provide mechanical protection in permanent outdoor installations. At 8 lbs with dimensions of 6.9" H x 6.4" W, the PD60AT is a compact but powerful driver appropriate for both new construction and retrofit horn system upgrades. The 2 kOhm impedance is measured at the transformer primary.
Key Features
- 60-Watt Power Rating — High continuous power handling for large venue and outdoor PA systems.
- Integrated 70V Transformer — Varnish-impregnated multi-tap transformer with Vari-Tap Control/Connect Center for screwdriver-selectable watt/ohm settings.
- Environment-Resistant Construction — Suitable for indoor and outdoor installations in harsh or high-humidity environments.
- 100 Hz – 3.7 kHz Frequency Response — Extended low-frequency floor supports intelligibility in mid-range-dominated acoustic environments.
- Strain-Relief Terminal Cover — Protective cover with built-in strain relief maintains secure cable connection under physical stress.
- Standard 1-3/8"-18 Thread Coupling — Direct compatibility with screw-on large format horn speakers.
- Die-Cast Housing — Protective die-cast body for permanent outdoor and industrial installations.
Typical Applications
- Outdoor stadium and sports facility public address
- Campus and large facility emergency notification systems
- Industrial and manufacturing facility paging
- Transportation hub and transit station PA
- House of worship outdoor coverage systems
- Auditorium and large multi-purpose room horn systems
Technical Specifications
| Specification | Value |
|---|---|
| Model | PD60AT |
| RMS Output Power | 60 W |
| Frequency Response | 100 Hz – 3.7 kHz |
| Impedance | 2 kOhm |
| Transformer | 70V line-matching, varnish-impregnated (Vari-Tap) |
| Horn Coupling | 1-3/8"-18 thread male (screw-on) |
| Height | 6.9" |
| Width | 6.4" |
| Weight | 8.00 lbs |
| Country of Origin | United States |
Frequently Asked Questions
Q: What horns are compatible with the PD60AT?
A: The PD60AT uses a standard 1-3/8"-18 thread male coupling, compatible with screw-on large format horn speakers.
Q: Is the PD60AT suitable for permanent outdoor installations?
A: Yes. The environment-resistant construction with varnish-impregnated transformer and die-cast housing is rated for indoor and outdoor applications.
Q: How do I select the correct power tap on the 70V transformer?
A: The Vari-Tap Control/Connect Center features a screwdriver-selectable switch for ohms/watts selection, accessible without specialized tools.
Q: What is the difference between the PD60AT and the PD75T?
A: The PD75T offers a higher 75-watt power rating and higher average SPL (116 dB), making it better suited for larger venues. The PD60AT at 60 watts is appropriate for medium to large outdoor and indoor PA applications.
Q: Is this product made in the United States?
A: Yes. The PD60AT is manufactured in the United States.
Q: Does the PD60AT include strain relief on the terminal connections?
A: Yes. The terminal cover includes built-in strain relief to maintain secure cable connections under vibration and installation stress.
