Atlas Sound PD-30T – 30W 70V Compression Driver for Large Format Horns
Product Overview

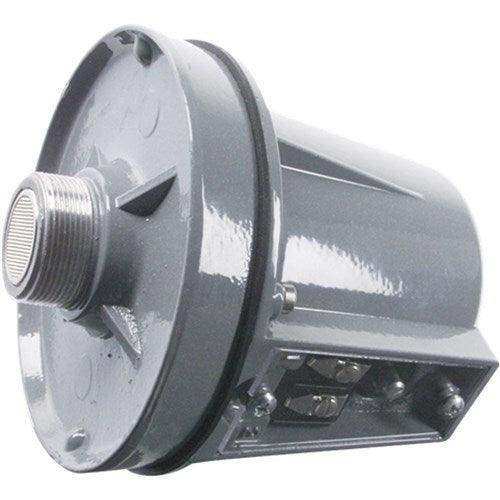

The Atlas Sound PD-30T is an environment-resistant compression driver for large format horn speakers, rated at 30 watts with an integral 70V line matching transformer. It is designed for expansive indoor or outdoor public address, paging, and music playback applications where high ambient sound levels demand a driver with reliable power handling and extended frequency response. The PD-30T terminates in standard 1 3/8"-18" thread male couplings compatible with screw-on horn speakers.
Product Description
The PD-30T features a 1.5" voice coil and a plane wave frequency response of 300 Hz to 3.9 kHz, delivering the intelligibility needed for voice paging and tone signaling over long distances. The integrated transformer uses Atlas Sound’s proprietary Vari-Tap Control/Connect Center, which provides a screwdriver-selectable ohms/watts switch for flexible system configuration without rewiring. The transformer is varnish impregnated to resist moisture and environmental exposure, extending service life in demanding outdoor applications. A protective terminal cover with built-in strain relief ensures secure cable connections in high-vibration or outdoor environments. Average sensitivity is 113.6 dB across the rated bandwidth, making the PD-30T an efficient choice for applications requiring high sound pressure levels at moderate power levels. The driver is compatible with the BX-1A conduit adapter for conduit-fed cable runs. The integral transformer and driver assembly simplify installation by eliminating the need for a separate external transformer unit. The PD-30T carries a 60-month warranty and is backed by Revit and CAD drawings for AV system design documentation.
Key Features
- 30-Watt Power Rating — Handles continuous PA, paging, and music playback loads.
- Integral 70V Transformer with Vari-Tap — Screwdriver-selectable watts/ohms switch for flexible wiring.
- Varnish-Impregnated Transformer — Maximum moisture and environmental resistance.
- 1.5" Voice Coil — 300 Hz – 3.9 kHz frequency response for voice and tone intelligibility.
- 113.6 dB Average Sensitivity — High output efficiency across rated bandwidth.
- 1 3/8"-18" Thread Male Coupling — Standard screw-on connection for large format horn speakers.
- Protective Terminal Cover with Strain Relief — Secure cable connection in outdoor and high-vibration use.
- BX-1A Conduit Adapter Compatible — Accepts conduit-routed cable for clean, permanent installations.
- Environment-Resistant Construction — Rated for indoor and outdoor deployment.
- 60-Month Warranty — Five-year coverage from date of purchase.
Technical Specifications
| Specification | Value |
|---|---|
| Power Rating | 30 Watts |
| Transformer | 70V (Vari-Tap Control/Connect Center) |
| Voice Coil | 1.5" |
| Frequency Response | 300 Hz – 3.9 kHz |
| Sensitivity | 113.6 dB avg (300–3,900 Hz) |
| Thread Coupling | 1 3/8"-18" thread male |
| Depth | 4 1/2" (11.43 cm) |
| Shipping Weight | 4.00 lbs (1.81 kgs) |
| Warranty Period | 60 months from date of purchase |
