Atlas Sound MVX-193 – 19" Rack Monitor Panel 2RU with 3" Speaker

Product Overview

The Atlas Sound MVX-193 is a 2RU rack-mount audio monitor panel for commercial and professional sound system control centers. It features a VU meter and an integral 3-inch speaker for real-time monitoring of up to five program channels on 70.7V or 25V distributed audio lines. This 19-inch monitor panel with VU meter is the standard tool for audio system operators who need reliable level monitoring without leaving the equipment rack position.

Product Description

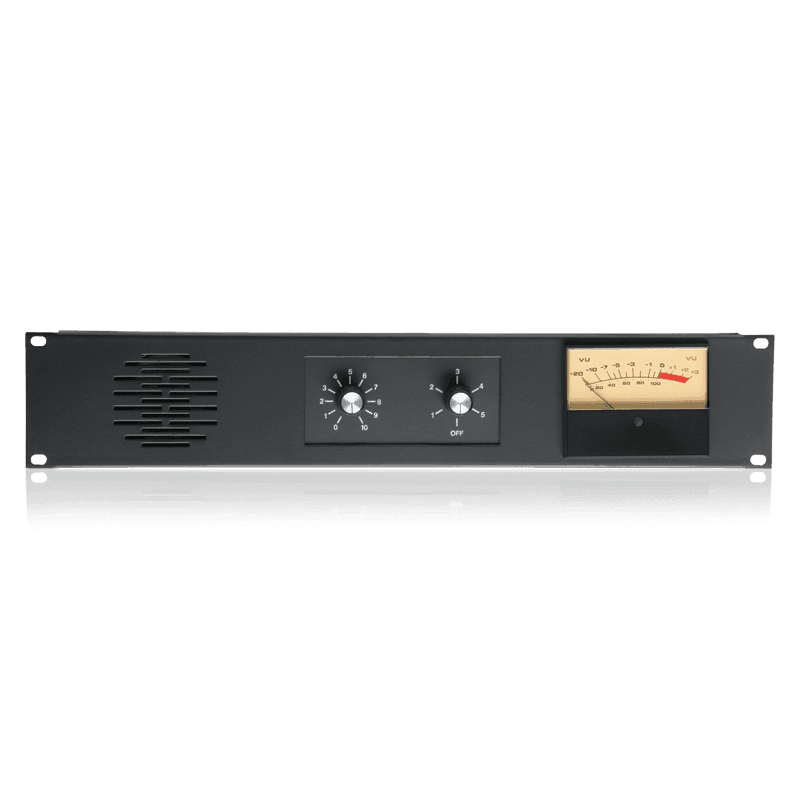

The MVX-193 monitor panel occupies 2 rack units and fits any standard 19-inch rack. The unit provides monitoring of up to five channels using a 6-position double-pole switch with a positive off position, preventing accidental monitoring channel bleed. A front-mounted volume control adjusts the integral 3-inch speaker output independently of the monitored circuit levels. Each monitored circuit connects to rear-mounted screw terminals, keeping the front panel clean and operator-focused. The moving coil VU meter uses a Type A scale and includes a rear-mounted calibration control for setting the zero dB reference point. The meter is protected by a thermoplastic housing. The 16-gauge CRS front panel features a stamped grille design for the speaker, with controls mounted on a black plate with white nomenclature for legibility in low-light environments. All assemblies are factory wired and finished in textured black enamel. The MVX-193 is a purpose-built monitoring tool for distributed audio installations in commercial buildings, broadcast facilities, and institutional sound systems where multiple program channels require regular level verification.

Key Features

• 5-Channel Program Monitoring — Six-position double-pole switch allows selection of up to five monitored program channels plus a positive off position.
• Integral 3" Monitor Speaker — Built-in speaker supports 70.7V or 25V line monitoring without external amplification.
• Moving Coil VU Meter — Type A scale VU meter with rear-mounted 0 dB calibration control for accurate level reference.
• Rear Screw Terminal Inputs — Each monitored channel connects via dedicated rear-mounted screw terminals, keeping wiring organized.
• 16-Gauge CRS Front Panel — Stamped steel panel with textured black enamel finish provides a durable, professional appearance.
• 2RU Factory-Wired Assembly — Ships fully wired and ready for rack installation, reducing field labor time.
• Thermoplastic Meter Cover — Protective housing shields the VU meter from mechanical damage.

Typical Applications

• Broadcast studio audio monitoring racks
• Commercial sound system control rooms
• House of worship audio control positions
• Government facility audio distribution systems
• Auditorium and multi-purpose room sound systems

Technical Specifications

Frequently Asked Questions

Q: How many channels can the MVX-193 monitor simultaneously?

A: The MVX-193 monitors one channel at a time, selected from up to five program sources. The 6-position switch includes a positive off position to prevent unintended monitoring.

Q: Is the MVX-193 compatible with both 70V and 25V distributed audio systems?

A: Yes. The integral 3-inch speaker is designed for connection to either 70.7V or 25V line-level distributed audio systems.

Q: Does the VU meter require external calibration?

A: The meter includes a rear-mounted control for setting the 0 dB reference. This adjustment can be made during installation without accessing the front panel.

Q: What rack space does the MVX-193 require?

A: The unit requires 2 rack units (3.5 inches) of vertical space in a standard 19-inch rack.

Q: Is the unit factory wired?

A: Yes. The MVX-193 ships as a complete, factory-wired assembly. Field wiring is limited to connecting the monitored circuits to the rear screw terminals.

Q: What is the warranty on the MVX-193?

A: Contact AtlasIED or your authorized reseller for current warranty terms. Standard AtlasIED commercial product limited warranty terms apply.
