Atlas Sound MUSICAVC-100Z – 100W Stereo Impedance-Matching Volume Control

Product Overview

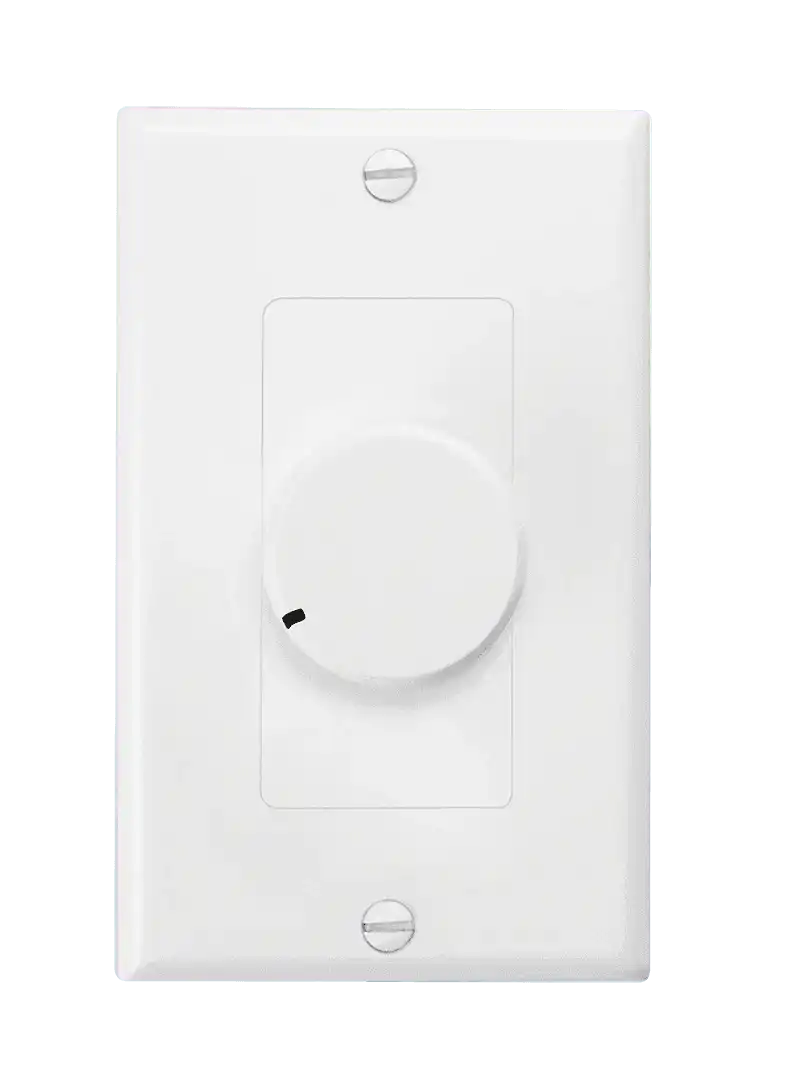

The Atlas Sound MUSICAVC-100Z is a 100-watt, 8-ohm stereo impedance-matching volume control designed for distributed background music systems where one amplifier drives multiple speaker pairs. It supports impedance-matching multiplier settings of 1X, 2X, 4X, and 8X, allowing flexible system design without sacrificing audio quality. The Decora-style wall plate ships with matching plastic parts in white, ivory, and almond so it integrates with virtually any decor. With eleven attenuation steps plus a positive off position, it provides precise local level control while keeping downstream speakers protected from overdriving.

Product Description

The MUSICAVC-100Z delivers clear, distortion-free stereo music reproduction across its full 20Hz to 20kHz frequency range, rated at –3dB. Attenuation is stepped in eleven increments: the first six steps are 3dB each for fine control at low listening levels, followed by three 6dB steps, one 9dB step, and one 28dB step before a positive off position—providing a total attenuation range of 30dB. The 1X impedance-matching setting allows the MUSICAVC-100Z to function as a standard 8-ohm non-impedance-matching volume control when multiple zones are not required. The low-profile control knob measures 1-1/4" in diameter and projects only 11/16" from the wall surface, minimizing visual intrusion. Assemblies measure 2-11/16" deep and mount into a standard 20 cubic inch electrical outlet box, supplied by the installer. Each unit includes three interchangeable plastic part sets in white, ivory, and almond—comprising the plate, knob, and trim piece—so the color can be changed by swapping all three parts. The single-gang Decora plate keeps the installation consistent with standard wall plate layouts throughout a facility. A 24-month warranty from date of purchase is included.

Key Features

• 100-Watt RMS Rating — Handles full amplifier output for clear, undistorted stereo playback in 8Ω systems.
• Impedance Matching (1X, 2X, 4X, 8X) — Supports multiple speaker pairs on a single amplifier channel without degrading performance.
• 11-Step Attenuation + Off — Fine 3dB steps at low levels, coarser steps at higher levels for intuitive control.
• Full 20Hz–20kHz Response — Passes the complete audio spectrum with minimal coloration.
• Three Interchangeable Color Sets — Ships with white, almond, and ivory plates, knobs, and trim pieces.
• Decora Single-Gang Form Factor — Fits standard 20 cu. in. electrical boxes and matches Decora-style switch plates.
• Low-Profile Knob — Projects only 11/16" from the wall for unobtrusive appearance.
