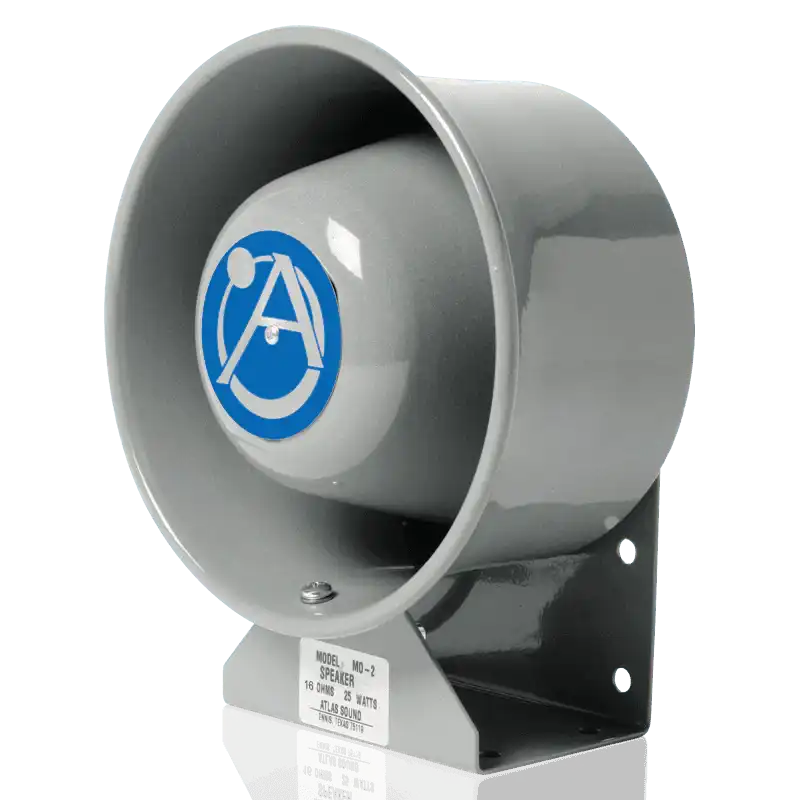

Atlas Sound MO-2 – 25W Compact Mobile Communication Speaker 16Ω

Product Overview

The Atlas Sound MO-2 is a compact double re-entrant communication speaker rated at 25 watts continuous power handling at 16 ohms, built for industrial, marine, military, and vehicular audio applications. The die-cast aluminum construction and IP45-rated environmental resistance enable deployment in harsh conditions including high humidity, salt water, wide temperature variations, vibration, and shock. With 108 dB sensitivity and an integral U.S.-made compression driver, the MO-2 delivers clear voice intelligibility for two-way intercommunication and public address in demanding mobile and fixed-mount installations.

Product Description

The MO-2 is engineered for environments where standard commercial loudspeakers cannot survive. The heavy-gauge die-cast aluminum housing protects the compression driver from the mechanical and environmental stresses common in industrial plants, naval vessels, military vehicles, and mobile command units. A grey epoxy finish on all exposed metal parts resists corrosion from salt air, industrial chemicals, and moisture. The double re-entrant horn design maximizes acoustic efficiency from the 25W compression driver, producing a 550 Hz–13.5 kHz frequency response with 85-degree sound dispersion adequate for close-range to medium-range communication coverage. At 108 dB sensitivity, the MO-2 cuts through high ambient noise levels common in engine rooms, factory floors, and military vehicles. Beyond its loudspeaker function, the MO-2 also operates as a microphone for two-way intercommunication, making it a bidirectional communication device on intercom and field communication systems. Both surface and concealed mounting configurations are supported; the platform base accommodates stable placement on flat surfaces. The speaker is Buy America Act (BAA) and Trade Agreements Act (TAA) compliant, qualifying it for U.S. government and DoD procurement contracts. The integral U.S.-made compression driver underscores Atlas Sound's commitment to domestic manufacturing quality standards.

Key Features

• Die-Cast Aluminum Construction — Withstands vibration, shock, impact, dust, salt water, and wide temperature variations.
• 108 dB Sensitivity — High SPL output for intelligible communication in high-ambient-noise industrial environments.
• Bidirectional Operation — Functions as both a loudspeaker and a microphone for two-way intercommunication systems.
• 25W / 16Ω Power Rating — Handles continuous rated power for demanding duty-cycle communication applications.
• 85° Sound Dispersion — Focused coverage for directional communication in confined or open industrial spaces.
• Grey Epoxy Finish — Corrosion-resistant coating on all exposed metal parts for marine and industrial environments.
• Surface and Concealed Mounting — Platform base for surface placement; concealed mounting also supported.
• U.S.-Made Compression Driver — Domestic manufacture ensures consistent reliability and quality for critical communication use.
• BAA / TAA Compliant — Eligible for U.S. federal, military, and government procurement programs.
• IP45 Rated — Protected against solid objects and water spray for outdoor and wet-area use.

Technical Specifications
