Atlas Sound MAGPIE1-1 Atlas Learn Single MAGPIE Wireless Mic and IR Dome Kit

Product Overview

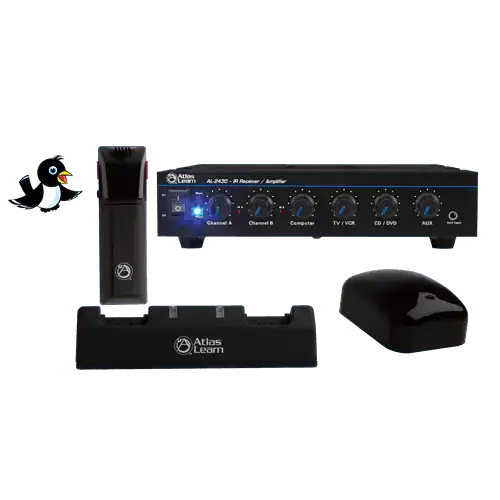

The AtlasIED MAGPIE1-1 is a complete Atlas Learn classroom audio system kit built around a single MAGPIE infrared wireless microphone, sized for smaller classrooms and boardrooms. The kit bundles the AL2450 amplifier/receiver, AL-MAGPIE wireless microphone, AL-MAGPIE-NEST charging station, an infrared dome transmitter, and 10 meters of coaxial cable, so a single SKU covers the entire voice lift system. Infrared transmission keeps audio contained within the room, avoiding the RF coordination issues common in multi-room wireless microphone deployments. For integrators specifying classroom sound field systems, the MAGPIE1-1 delivers everything needed without paying for unused parts or accessories.

Product Description

The MAGPIE1-1 simplifies classroom audio system installation by packaging matched components from the Atlas Learn platform into one kit. At its core, the AL2450 amplifier/receiver provides a 6-input mixer with priority page override, so campus paging and intercom announcements automatically duck local program audio — an important consideration for school intercom integration. Front panel source volume controls let teachers and facilities staff make adjustments without opening configuration software.

The AL-MAGPIE infrared wireless microphone gives the presenter freedom of movement while the ceiling-mounted IR dome transmitter picks up the signal anywhere in the room. Because infrared light does not pass through walls, adjacent classrooms can run identical systems with zero cross-room interference — a practical advantage for district-wide wireless microphone system deployment. The AL-MAGPIE-NEST charging station keeps the microphone ready between sessions, and the receiver supports up to two infrared microphone transmitters if a second presenter mic is added later. The included 10-meter coaxial cable connects the IR dome to the AL2450 for a clean, predictable install. AtlasIED offers a full line of compatible in-ceiling and surface mount speakers to complete the system; browse the AtlasIED collection at Creation Networks to pair loudspeakers with this kit.

Key Features

• Complete Single-Mic Kit — Ships with the AL2450 amplifier/receiver, AL-MAGPIE wireless mic, NEST charging station, IR dome, and 10 m of coax in one orderable SKU.
• AL2450 6-Input Mixer with Priority Page Override — Campus paging automatically takes priority over local sources for reliable announcement delivery.
• Infrared Wireless Transmission — IR signals stay within the room, eliminating cross-room interference and RF frequency coordination across multiple classrooms.
• Expandable to Two Microphones — The receiver supports up to two infrared wireless microphone transmitters for team teaching or guest presenters.
• AL-MAGPIE-NEST Charging Station — Docks the microphone for charging between classes so it is always ready for use.
• Front Panel Volume Control — Source levels adjust directly on the amplifier without software or remote configuration.
• Speaker-Ready Design — Pairs with AtlasIED in-ceiling and surface mount loudspeakers for a complete voice lift system.

Typical Applications

• Training rooms requiring presenter voice lift
• Boardrooms and conference rooms in corporate facilities
• Multi-purpose rooms with paging integration needs
• Houses of worship classrooms and education wings

Technical Specifications

Frequently Asked Questions

What is included in the MAGPIE1-1 kit?

The kit includes one AL2450 amplifier/receiver, one AL-MAGPIE wireless microphone, one AL-MAGPIE-NEST charging station, one infrared dome transmitter, and 10 meters of coaxial cable to connect the IR dome to the amplifier.

Why infrared instead of RF wireless?

Infrared signals do not pass through walls, so each room operates independently. Adjacent classrooms can run identical Atlas Learn systems without frequency coordination or interference.

Can I add a second microphone later?

Yes. The AL2450 receiver supports up to two infrared wireless microphone transmitters, so a second AL-MAGPIE can be added for team teaching or Q&A coverage.

Does it integrate with a paging or intercom system?

Yes. The AL2450 6-input mixer includes priority page override, which automatically ducks local audio when a page or intercom announcement comes through.

What speakers work with this kit?

AtlasIED offers a full line of compatible in-ceiling and surface mount loudspeakers for Atlas Learn systems. Creation Networks can recommend speaker models and quantities for your room dimensions.

What warranty applies?

AtlasIED covers the MAGPIE1-1 with a 12-month warranty from date of purchase, and Creation Networks provides pre- and post-sale support on every order.
