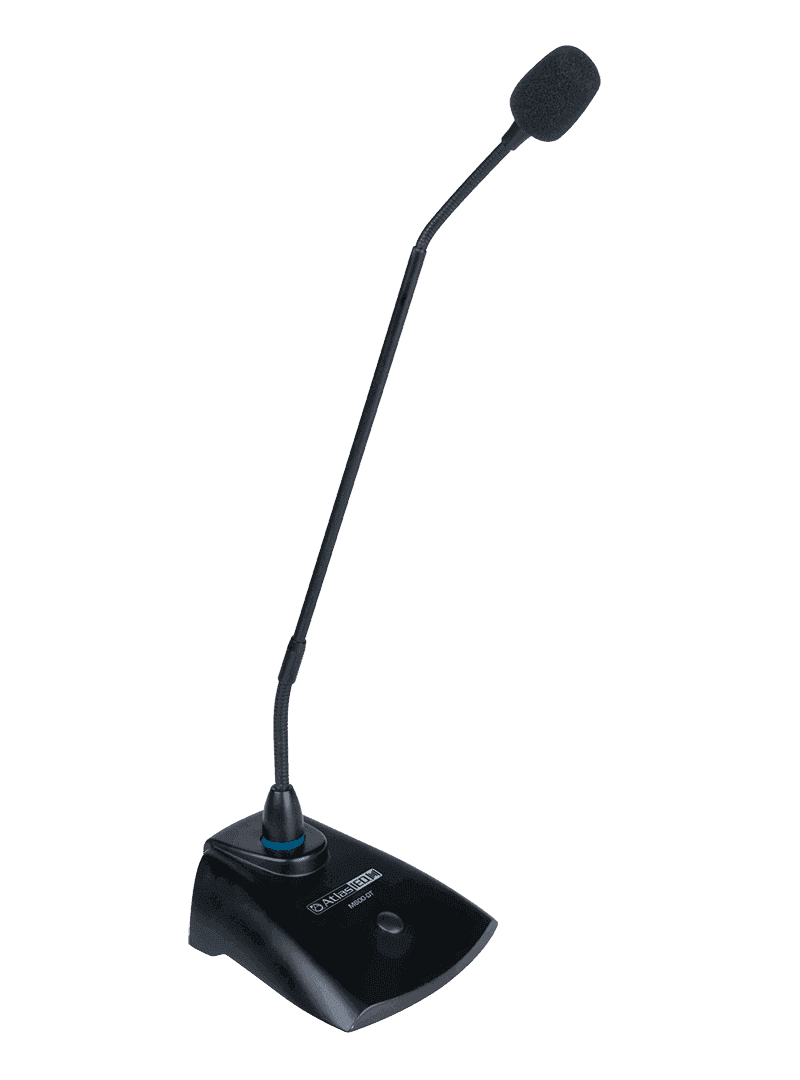

Atlas Sound M600-DT – Cardioid Condenser Gooseneck Paging Microphone

Product Overview

The Atlas Sound M600-DT is a cardioid condenser gooseneck microphone on a weighted desktop base, designed for commercial PA paging, conference room announcements, and podium applications. Its 16-inch flexible gooseneck, latching push-to-talk switch with blue illuminated indicator, and high-gain-before-feedback design make it a dependable paging and conference desktop microphone for classrooms, lecture halls, conference rooms, and house-of-worship installations. Wide phantom power compatibility (12V–52V DC) ensures compatibility with virtually any commercial mixing console or paging controller.

Product Description

The M600-DT is built around a cardioid condenser capsule delivering a frequency response of 80 Hz to 18 kHz — a range that captures the full natural voice spectrum with clarity. Sensitivity is -35 dB (1V/Pa) and output impedance is 250Ω via a 3-pin XLR connector (male, 2.0" diameter). The signal-to-noise ratio exceeds 68 dB at 1 kHz and 1 Pa, keeping background noise low in open-room environments. The cast-alloy base with rubber isolators prevents vibration coupling from table surfaces, reducing low-frequency rumble and handling noise during active use. The 16-inch small-diameter flexible gooseneck allows precise positioning without introducing mechanical noise. The latching push-to-talk switch operates click-free for clean audio during live paging — the blue illuminated ring on the base confirms active microphone status to both the user and the audience. Phantom power operates across a wide range of 12V to 52V DC at a typical draw of 5 mA, ensuring broad compatibility with commercial AV equipment. High gain before feedback design minimizes the need for EQ adjustments in typical room environments. The M600-DT requires little to no processing to sound natural in paging and announcement contexts. The unit ships in a black finish with alloy base and carries a 36-month warranty.

Key Features

• Cardioid Condenser Capsule — Natural sound pickup with directional rejection of off-axis room noise.
• 16" Flexible Gooseneck — Small-diameter neck allows precise microphone positioning without mechanical noise.
• Latching Click-Free Push-to-Talk Switch — Clean switching for live paging with no audible click artifact.
• Blue Illuminated Active Indicator — Ring light on base confirms live microphone status clearly.
• High Gain Before Feedback — Effective in open room environments without aggressive EQ or feedback suppression processing.
• Wide Phantom Power Range: 12V–52V DC — Compatible with virtually all commercial paging controllers, mixers, and DSPs.
• Cast-Alloy Base with Rubber Isolators — Damps table vibration and reduces handling noise.
• 3-Pin XLR Output — Industry-standard balanced output for direct connection to commercial AV systems.
• 36-Month Warranty — AtlasIED's standard 3-year warranty on microphone products.
