Atlas Sound M2000-LP – Dual 2x4 Sound Masking Speaker with 70V Transformer
Atlas Sound M2000-LP – Dual 2x4 Sound Masking Speaker with 70V Transformer is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Atlas Sound M2000-LP – Dual 2x4 Sound Masking Speaker with 70V Tran...
Product Overview

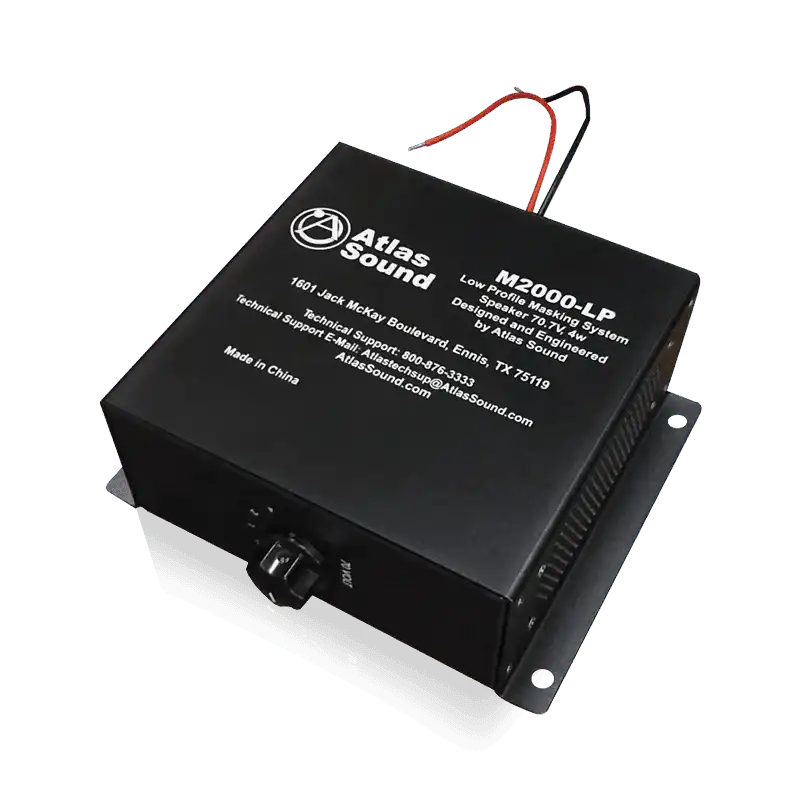

The Atlas Sound M2000-LP is a pre-assembled dual 2" x 4" paper cone sound masking speaker system with an integrated 70.7V transformer and front-mounted tap selector switch. Designed for installation in plenum spaces above suspended ceilings, it accurately reproduces the frequency spectrum required for speech privacy masking in commercial office environments. It carries UL1480 and UL2043 listings for use in air handling spaces and is compatible with any external masking generator and 70.7V amplifier.
Product Description
The M2000-LP uses an innovative square enclosure to ensure accurate sound masking frequency response, addressing the common limitation of rectangular or round enclosures that skew the masking spectrum. Two 2" x 4" paper cone speakers are included pre-assembled in the housing. The integrated 70.7V transformer supports five watt taps — 0.25, 0.5, 1, 2, and 4 watts — plus an off position, all selectable via a front-mounted switch without opening the enclosure. Wiring is handled through a Romex clamp input with 18-gauge color-coded leads, and the cover includes both knockouts and a strain relief to accommodate rigid conduit, flexible conduit, or through-wiring as required by local code. This unit requires an external masking generator and 70.7V amplifier to operate. Dimensions are 2-5/8" H x 7-1/2" W x 7" D, weighing 3.3 lbs. Warranted for 60 months from purchase.
Key Features
- Dual 2" x 4" Paper Cone Speakers — Matched pair pre-assembled in a square enclosure for accurate masking frequency reproduction.
- Integrated 70.7V Transformer — Five selectable taps (0.25–4W) plus off; front-mounted switch allows tuning without opening the unit.
- Square Enclosure Design — Engineered geometry ensures the masking signal spectrum is reproduced accurately.
- Flexible Wiring Options — Cover with knockouts and strain relief supports rigid conduit, flexible conduit, or through-wiring.
- Romex Clamp Input — 18-gauge color-coded leads simplify field termination.
- UL1480 / UL2043 Listed — Approved for installation in air handling (plenum) spaces above suspended ceilings.
- Compact Plenum Form Factor — Low-profile design fits in minimal above-ceiling clearance environments.
Technical Specifications
| Specification | Value |
|---|---|
| Loudspeakers | Two 2" x 4" Paper Cone Speakers |
| Transformer | 70.7V |
| Transformer Taps | 0.25, 0.5, 1, 2, and 4 Watts, plus Off |
| Height | 2-5/8" (67mm) |
| Width | 7-1/2" (191mm) |
| Depth | 7" (178mm) |
| Weight | 3.3 lbs (1.49kg) |
| Safety Listing | UL1480 Listed / UL2043 Listed |
| Warranty | 60 months from date of purchase |
