Atlas Sound M1000R-W – 8" Round Sound Masking Speaker White 70V

Product Overview

The Atlas Sound M1000R-W is an 8-inch dual cone sound masking speaker designed for deployment in open plenum office environments where speech privacy is a priority. This 70V sound masking speaker ships as a fully assembled unit and delivers accurate low-frequency masking spectrum reproduction for commercial office spaces, healthcare facilities, and corporate campuses. The white round enclosure blends with exposed ductwork and suspended lighting typical of modern open-ceiling office designs, making it a practical choice for architects and AV integrators specifying 70.7V sound masking systems.

Product Description

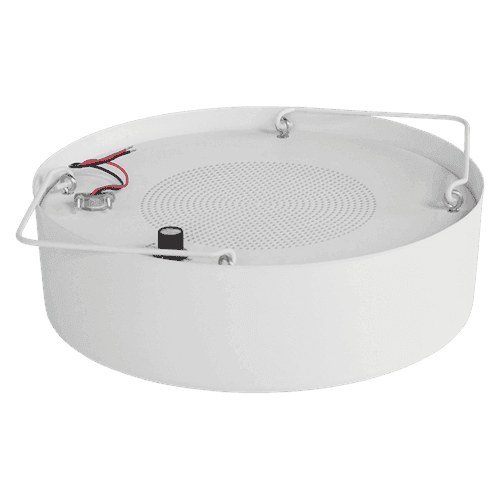

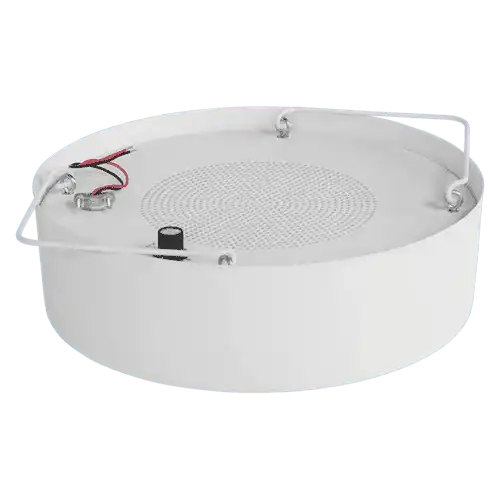

The M1000R-W integrates a high-efficiency 8-inch paper cone transducer with a low-insertion-loss 70.7V line matching transformer, factory assembled into a 382 cubic inch (6.26 liter) round enclosure. The balanced enclosure geometry ensures the speaker hangs level when suspended, eliminating on-site adjustment. System-level tuning is handled via an external tap selector switch with settings at 0.25, 0.5, 1, 2, and 4 watts plus an OFF position, allowing installers to match output to zone coverage requirements without additional hardware. Installation uses a 78-inch (2-meter) suspension chain system included in the box, enabling quick height adjustment after initial deployment. An integral wire strain relief on the top of the enclosure secures the speaker cable and maintains termination integrity in plenum spaces. The low-gloss white finish is designed to blend with white-painted ductwork, LED lighting fixtures, and other ceiling infrastructure commonly found in open-plan offices. This unit is tested and approved to UL 2043 for use in air-handling (plenum) spaces and is safety listed to UL 1480 and UL 2043. Note: This speaker requires a compatible masking generator and 70.7V amplifier to operate — it does not include a built-in signal source.

Key Features

• 8" Dual Cone Transducer — High-efficiency paper cone driver optimized for masking spectrum reproduction in the speech frequency range.
• Factory-Assembled 70.7V Transformer — Low insertion loss transformer pre-installed with the transducer, reducing field wiring and assembly time.

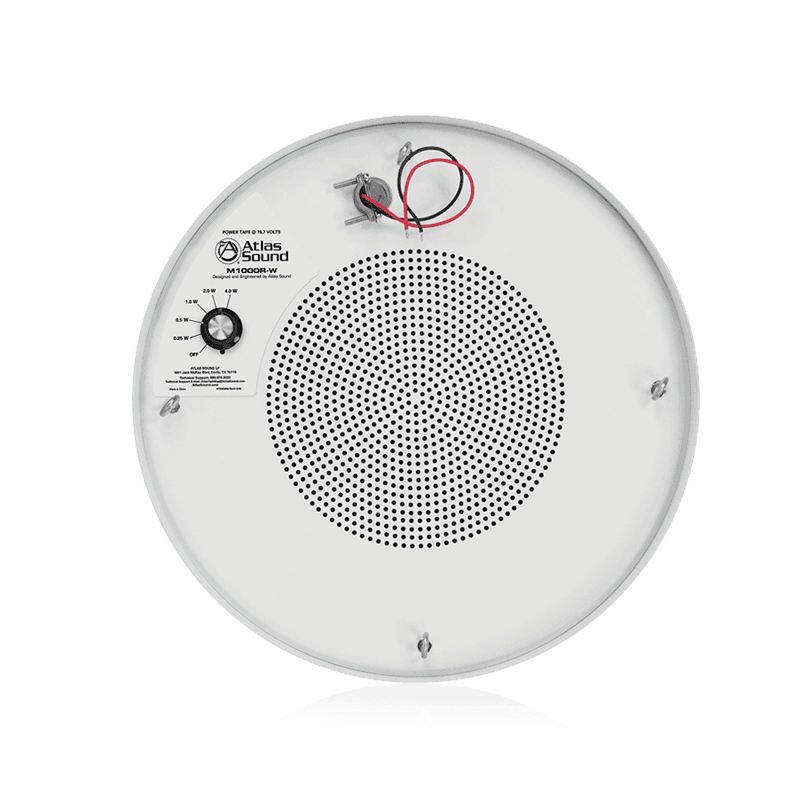

• External Tap Selector Switch — Selectable power taps at 0.25, 0.5, 1, 2, and 4 watts plus OFF allow precise zone-level SPL control without additional attenuation hardware.
• 382 in³ (6.26L) Enclosure Volume — Adequate internal volume for accurate low-frequency masking spectrum output, essential for effective speech privacy systems.
• Balanced Round Enclosure — Symmetric geometry ensures the speaker hangs level when suspended, eliminating orientation issues common with asymmetric enclosures.
• 78" Suspension Chain Included — Pre-packaged chain system allows quick height adjustment and simplifies installation in open plenum spaces.
• Integral Wire Strain Relief — Secures speaker cable at the enclosure entry point, maintaining connection integrity in plenum air-handling environments.
• UL 1480 & UL 2043 Listed — Safety listings confirm suitability for both audio distribution and air-handling plenum space deployment.
• Low-Gloss White Finish — Matches painted ductwork, ceiling tiles, and lighting fixtures in contemporary open-ceiling office environments.
