Atlas Sound M1000R – 8" Round Sound Masking Speaker Black 70V

Product Overview

The Atlas Sound M1000R is an 8-inch dual cone sound masking speaker engineered for open plenum office deployments where speech privacy is required. This 70V sound masking speaker ships fully assembled and delivers accurate low-frequency masking spectrum output for corporate offices, healthcare spaces, and facilities using open-ceiling designs. The non-reflective black finish integrates with dark ductwork, exposed structure, and pendant lighting common in contemporary commercial interiors, making it a direct choice for integrators specifying 70.7V speech privacy systems with a dark ceiling aesthetic.

Product Description

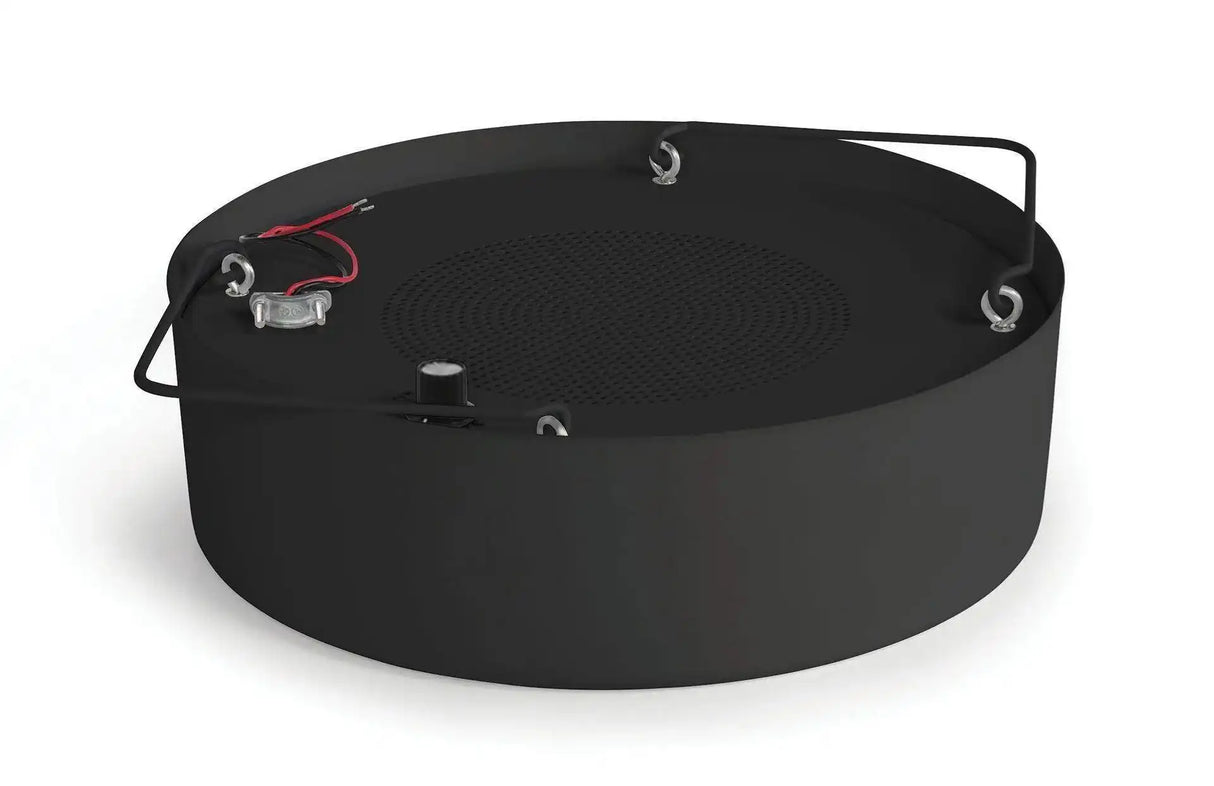

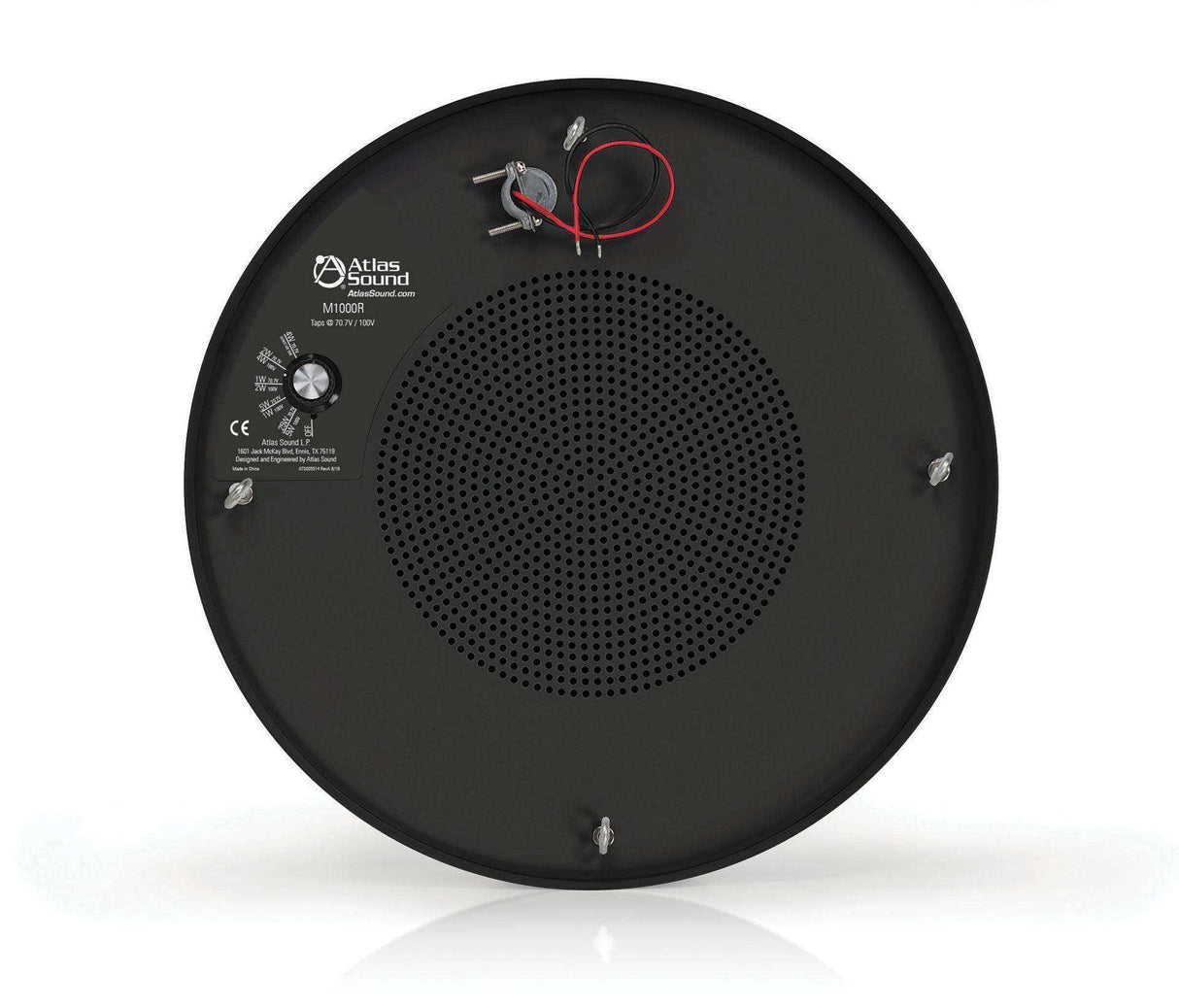

The M1000R combines a high-efficiency 8-inch paper cone transducer with a low-insertion-loss 70.7V line matching transformer, factory assembled into a 382 cubic inch (6.26 liter) round enclosure. The symmetric enclosure design keeps the unit level when suspended, avoiding orientation problems without installer adjustment. An external tap selector switch with positions at 0.25, 0.5, 1, 2, and 4 watts plus OFF allows system-level tuning at the speaker to match zone coverage requirements. A 78-inch (2-meter) suspension chain is included, enabling quick height positioning in open plenum spaces after initial wire pull. An integral wire strain relief at the top of the enclosure maintains cable termination in plenum air-handling areas. The non-reflective black finish conceals the speaker against dark structural ceilings, exposed conduit, and black ductwork. This unit is tested and approved to UL 2043 for use in air-handling plenum spaces and is safety listed to UL 1480 and UL 2043. Note: A compatible masking generator and 70.7V amplifier are required — these are not included.

Key Features

• 8" Dual Cone Transducer — High-efficiency paper cone driver selected for accurate masking spectrum reproduction in the speech frequency range.
• Factory-Assembled 70.7V Transformer — Low insertion loss transformer pre-installed with the driver, reducing field assembly and wiring time.
• External Tap Selector Switch — Power selectable at 0.25, 0.5, 1, 2, and 4 watts plus OFF for per-zone SPL control without separate attenuators.
• 382 in³ (6.26L) Round Enclosure — Internal volume supports accurate low-frequency masking spectrum output required for effective speech privacy.
• Balanced Enclosure Geometry — Symmetric round design keeps the unit level when suspended, eliminating field adjustments.
• 78" Suspension Chain Included — Pre-packaged chain allows quick height adjustment in open plenum spaces during installation.
• Integral Wire Strain Relief — Top-mounted cable strain relief maintains secure termination in plenum air-handling environments.
• UL 1480 & UL 2043 Listed — Dual safety listing confirms suitability for audio distribution and plenum air-handling deployment.
• Non-Reflective Black Finish — Blends with dark structural ceilings, black ductwork, and exposed mechanical systems.
