Atlas Sound M1000-W – 8" Sound Masking Speaker 4W 70V White Square

Product Overview

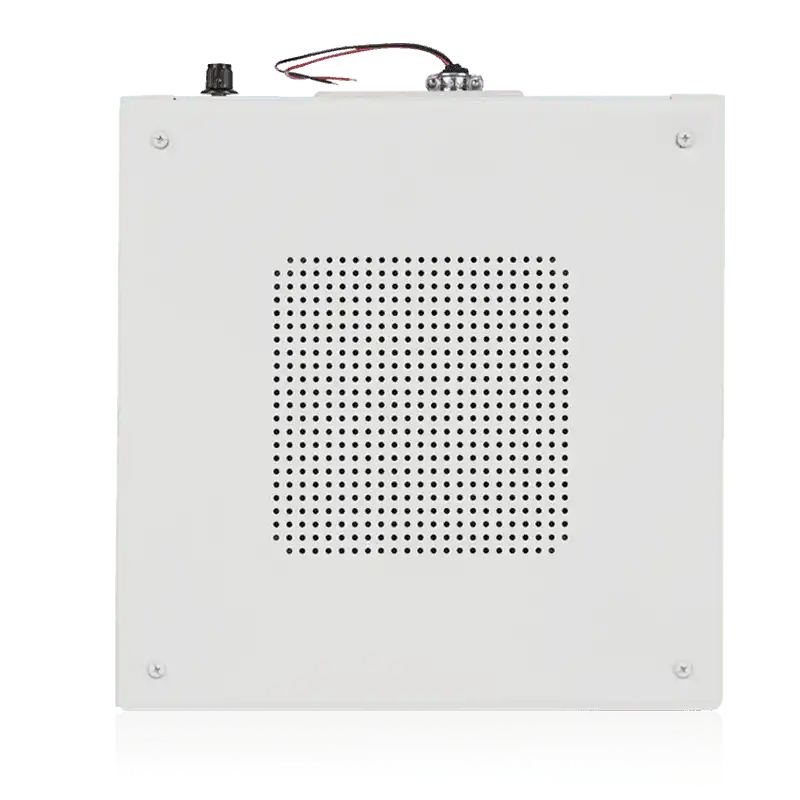

The Atlas Sound M1000-W is an 8-inch dual cone sound masking speaker with a 4-watt 70.7V transformer, housed in a 734 cubic inch square white enclosure designed for deployment in open plenum and above-ceiling spaces. This 70V sound masking speaker uses a square enclosure with EZ hang snap brackets for fast upward, downward, or horizontal installation in commercial office spaces, healthcare facilities, and open-plan environments where speech privacy is required. UL 1480 and UL 2043 listed for air-handling (plenum) spaces.

Product Description

The M1000-W sound masking speaker assembly is engineered to accurately reproduce the masking signal spectrum into the plenum space. The 734 cubic inch square enclosure provides greater internal volume than round compact designs, supporting extended low-frequency response — a key factor in effective speech privacy masking. The included 8-inch dual cone speaker is matched with a high-efficiency 70.7V internal transformer connected to an external tap selector switch with positions at 0.25, 0.5, 1, 2, and 4 watts plus an 8-ohm direct tap, enabling system-level tuning without supplemental attenuation hardware. The exclusive AtlasIED EZ hang snap bracket system simplifies installation: the two collapsible plated hangers are factory-installed on the enclosure, fold flat for shipping, and allow quick upward, downward, or horizontal orientation to meet plenum routing requirements. The innovative input panel on the enclosure includes combination knockouts and a strain relief connector that accommodates flexible or rigid conduit, enabling compliance with local code requirements for wiring methods. Through-connections are supported on the removable panel. White epoxy finish blends with standard ceiling tile, suspended grid systems, and painted ductwork. This product requires a compatible masking generator and 70.7V amplifier — these are not included.

Key Features

• 734 in³ Square Enclosure — Larger internal volume compared to compact round designs supports extended low-frequency masking spectrum reproduction for more effective speech privacy.

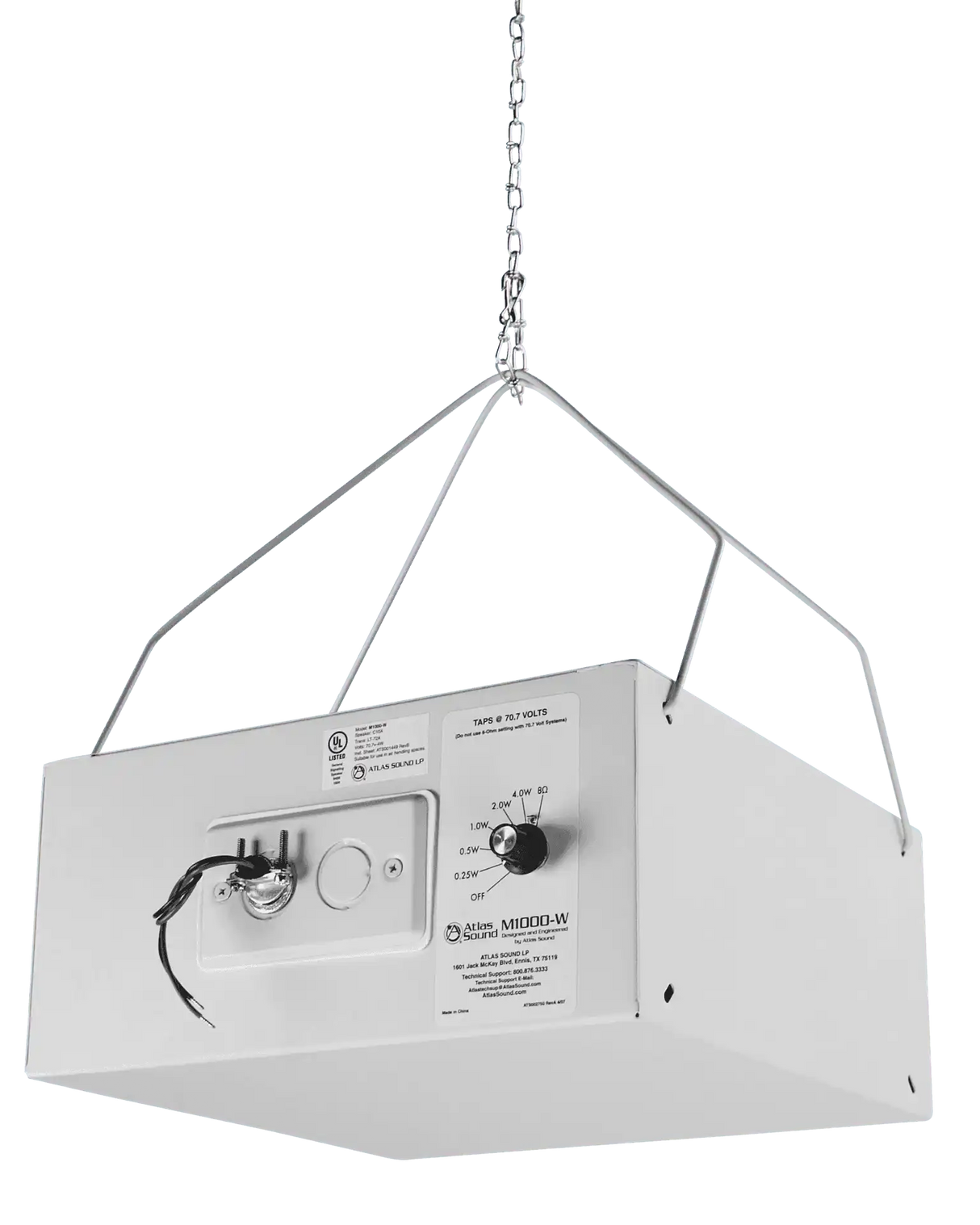

• EZ Hang Snap Bracket System — Factory-installed collapsible plated hangers enable upward, downward, or horizontal installation without additional mounting hardware.

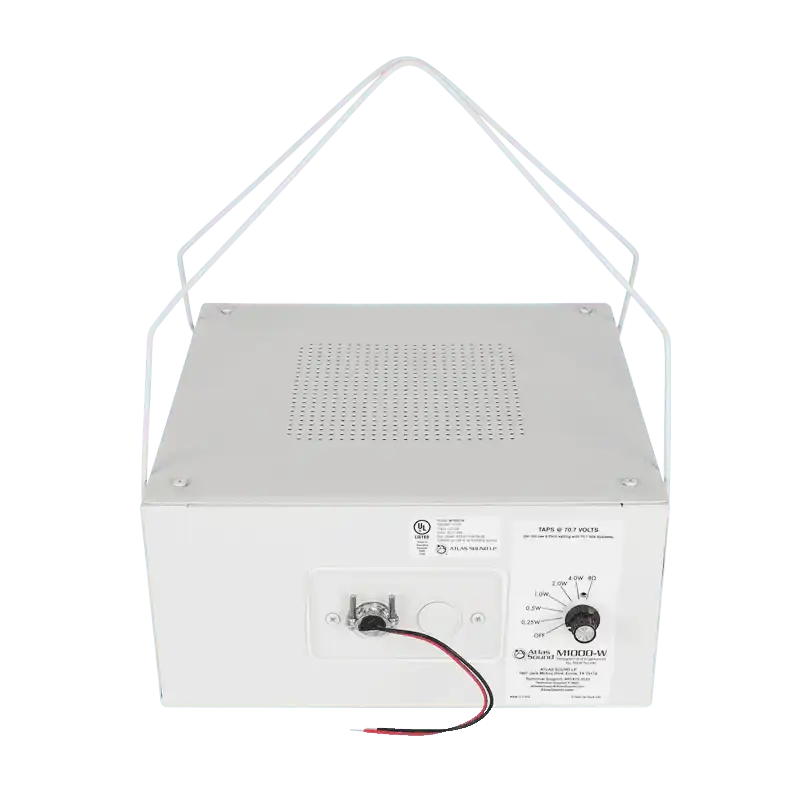

• External Tap Selector Switch — Selectable at 0.25, 0.5, 1, 2, and 4 watts plus 8-ohm direct for per-zone SPL control without supplemental attenuators.
• Combination Knockout and Strain Relief Input Panel — Accepts flexible or rigid conduit while maintaining strain relief on the speaker cable for code-compliant installations.
• Through-Connection Support — Removable input plate accommodates daisy-chain wiring connections for multi-speaker zone runs.
• UL 1480 & UL 2043 Listed — Dual safety listing confirms suitability for distributed audio wiring and plenum air-handling space deployment.
• White Epoxy Finish — Designed to blend with suspended ceiling systems, ceiling tile, and painted ductwork in open-ceiling and above-ceiling installations.
• 8" Dual Cone Driver — High-efficiency dual cone transducer optimized for masking spectrum reproduction in the speech frequency range (100Hz–10kHz).
