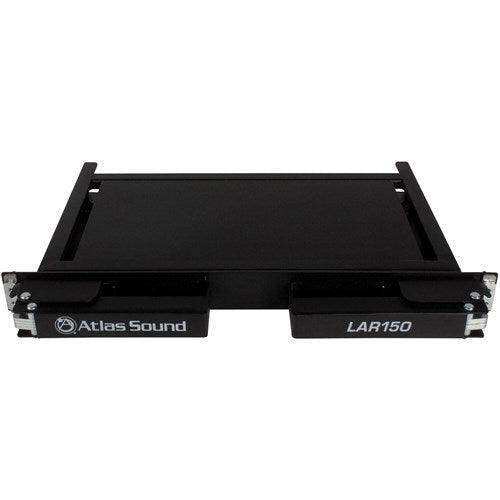

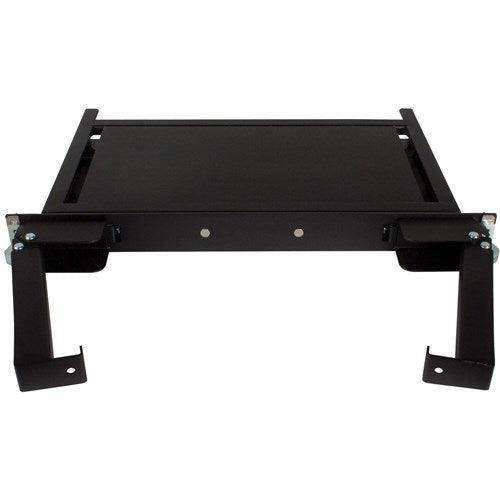

Atlas Sound LAR150 – 150 lb Capacity Load-A-Rack Installation Tool

Product Overview

The Atlas Sound LAR150 Load-A-Rack is a patent-pending rack installation tool designed to simplify loading and unloading heavy AV equipment into EIA standard equipment racks. It latches directly to the front rack rails and supports up to 150 pounds of gear, enabling a single technician to align and mount amplifiers, processors, and other full-rack-width components with proper horizontal and screw-hole alignment — without assistance or makeshift support methods. The LAR150 is a practical labor-saving tool for AV systems integrators, IT infrastructure teams, and facilities technicians performing rack builds or equipment upgrades.

Product Description

Rack installation of heavy equipment is a common source of installation injury, equipment damage, and wasted labor time. The LAR150 addresses this by providing a secure, self-aligning shelf that clamps to standard EIA rack front rails, holding equipment at the correct height and depth while the installer drives rack screws. The tool accommodates any full rack-width equipment and is particularly valuable when loading multiple heavy amplifiers or processors in sequence into a rack that is already partially populated with gear. The latch-and-hold design provides perfect horizontal alignment and screw-hole registration without the need for a second technician to hold the equipment during fastening. The LAR150 can support stacked components: multiple amplifiers placed on top of each other are within its 150-pound capacity, making it useful for large amplifier rack builds common in commercial AV, house of worship, and broadcast facility deployments. At 1.75 inches tall (1U), the tool occupies minimal vertical space in the rack during use. The tool measures 19 inches wide by 10 inches deep (12.31 inches with handles extended) and weighs 6.5 pounds, making it easy to transport to job sites. US and foreign patents are pending on the LAR150 design.

Key Features

• 150 lb Weight Capacity — Supports heavy amplifiers, processors, and other full-rack-width components, including stacked equipment configurations.
• Latches to Standard EIA Rack Front Rails — Self-aligning attachment ensures correct horizontal level and screw-hole registration without measurement or adjustment.
• Universal Rack Compatibility — Works with any standard-width EIA equipment rack regardless of manufacturer.
• Single-Technician Operation — Eliminates the need for a second person to hold equipment during mounting, reducing labor cost and installation time.
• 1U Profile — 1.75-inch height occupies minimal rack space during use and stores compactly between jobs.
• Patent-Pending Design — US and foreign patents pending on the LAR150 mechanism.
• Portable — 6.5 lb tool weight makes it practical to include in a field technician’s standard equipment kit.

Typical Applications

• Boardroom
• Conference room
• House of worship
• Government space
• Commercial meeting space
• Broadcast studio
• Auditorium
• Training room

Technical Specifications

Frequently Asked Questions

Q: Will the LAR150 work with partially loaded racks?

A: Yes. The LAR150 is specifically designed to latch onto the front rack rails and hold equipment in position even when other gear is already installed in the rack. This is one of its primary advantages over makeshift support methods.

Q: What is the maximum weight the LAR150 can support?

A: The LAR150 supports up to 150 pounds, which covers the weight of multiple stacked amplifiers or other heavy rack-mount components loaded simultaneously.

Q: Does the LAR150 work with all rack brands?

A: Yes. The tool is compatible with any standard EIA rack-width equipment rack regardless of manufacturer or cabinet series.

Q: Can one technician use the LAR150 alone?

A: Yes. That is the primary purpose of the tool. The LAR150 holds the component in position at correct height and alignment while the technician drives the rack screws, eliminating the need for a second person.

Q: How much rack space does the LAR150 occupy when in use?

A: The LAR150 is 1U (1.75 inches) in height. It attaches to the front rails and slides out of the way or is removed once the equipment is secured.

Q: Is the LAR150 a permanent rack installation?

A: No. The LAR150 is a portable installation tool that latches temporarily to the rack rails during equipment loading and is removed after use. It does not remain in the rack.
