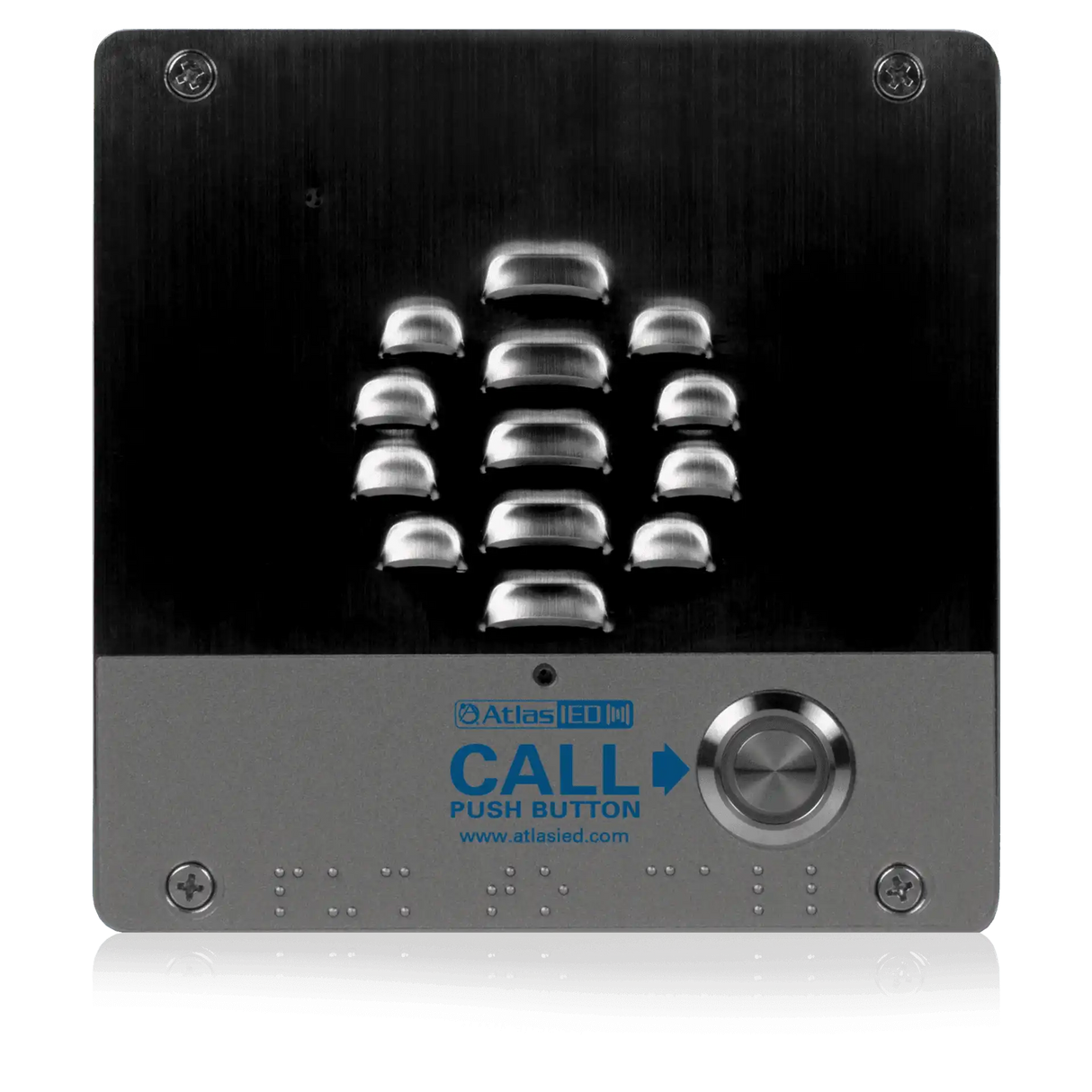

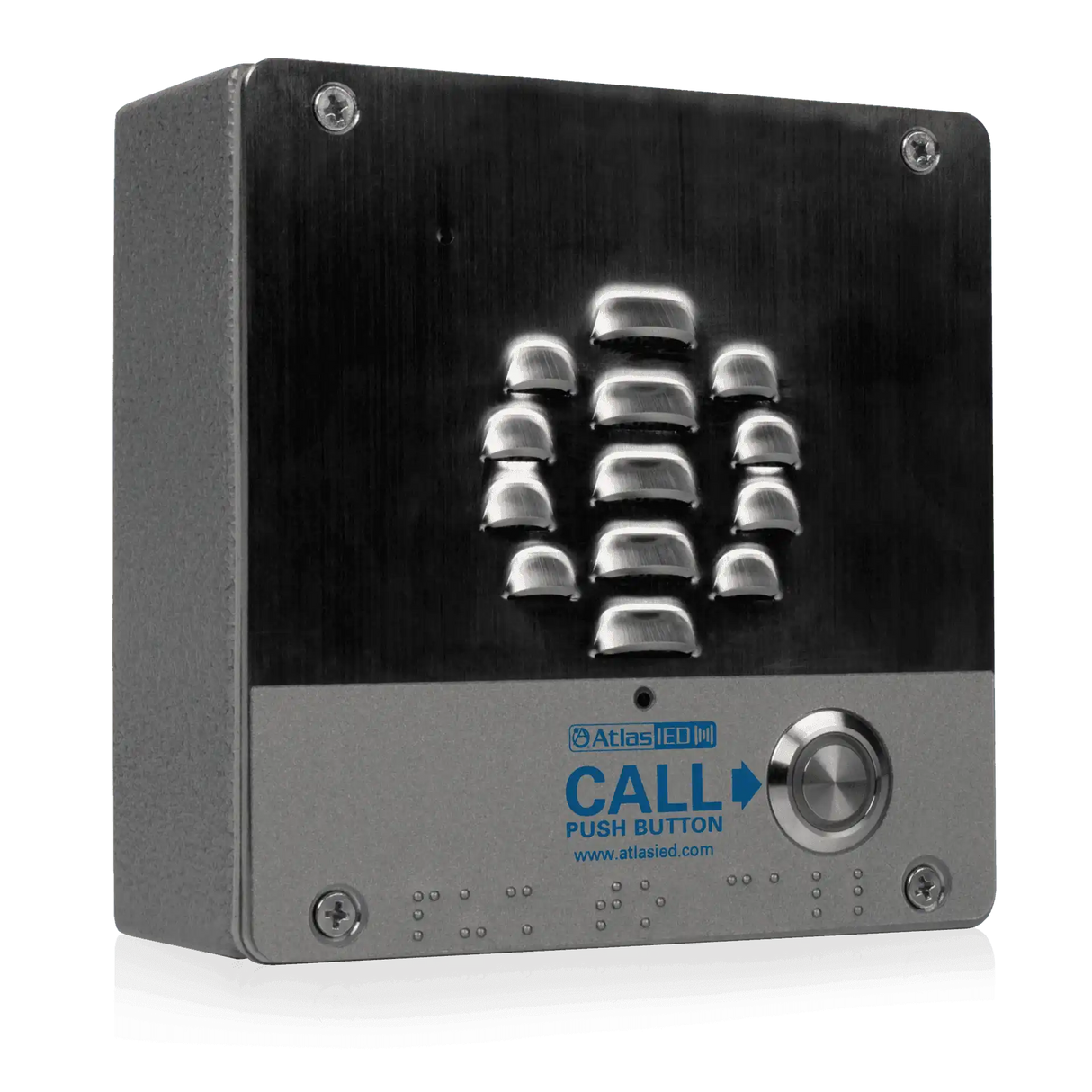

Atlas Sound IPS-VOI VoIP Outdoor Intercom Station (for SIP applications)

Product Overview

The AtlasIED IPS-VOI is a vandal-resistant, weather-resistant VoIP outdoor intercom station built for SIP-based communication systems. It registers directly to a SIP platform as a network endpoint, delivering call-in signaling and full-duplex talkback at guard gates, building entrances, loading docks, and other exposed locations. With an IP65 rating and PoE 802.3af power, it installs over a single network cable in environments subject to moisture, dust, corrosion, vibration, and temperature extremes. For integrators standardizing security communication on enterprise VoIP, the IPS-VOI eliminates the need for a separate analog intercom infrastructure.

Product Description

The IPS-VOI leverages existing WAN/LAN network architecture, so an outdoor intercom installation becomes a network drop rather than a dedicated cable run back to a head-end. A single call-in button initiates a SIP call to any extension, group, or attendant console, and adaptive full-duplex voice operation allows natural two-way conversation without push-to-talk switching. Network web management gives IT and facilities teams remote control of speaker volume, microphone sensitivity, and firmware updates — no truck roll required for adjustments.

In Cisco environments, the IPS-VOI joins Cisco Unified Survivable Remote Site Telephony (SRST) as a supported endpoint, maintaining local call processing if the WAN link to Cisco Unified Communications Manager goes down — a critical capability during emergencies, which are often the cause of the outage itself. The station doubles as a SIP paging speaker, extending mass notification coverage to entrances and perimeter areas. An onboard dry relay contact controls external devices such as door strikes or gate operators, and door closure plus tamper alert signaling supports security system integration. Typical commercial deployments include banks, distribution centers, manufacturing warehouses, correctional and detention facilities, transportation hubs, healthcare campuses, and government buildings. Peer-to-peer operation is also supported for installations without a central SIP server. See the rest of our networked communication endpoints in the AtlasIED collection.

Key Features

• IP65 Rated Enclosure — Sealed against dust and water jets for reliable outdoor intercom operation in harsh weather.
• SIP Compliant (RFC 3261) — Registers directly to standard SIP communication platforms as a native endpoint.
• Cisco SRST Support — Maintains local call processing during WAN outages within Cisco Unified Communications deployments.
• PoE 802.3af Powered — Installs over one Ethernet cable, with an optional 8–12 VDC regulated supply alternative.
• Adaptive Full-Duplex Talkback — Supports natural two-way conversation without push-to-talk operation.
• Network Web Management — Remote configuration of volume, microphone sensitivity, and firmware over the network.
• Dry Relay Contact — 1A at 30 VDC auxiliary relay controls door strikes, gates, or external power.
• Doubles as a Paging Speaker — Functions as a SIP paging endpoint for announcements and mass notification.
• Door Closure and Tamper Alerts — Reports tamper and door status signals for security system integration.
• Peer-to-Peer Capable — Operates station-to-station without a central server where required.

Typical Applications

• Government spaces
• Commercial meeting spaces
• Houses of worship
• Auditoriums

Technical Specifications

Frequently Asked Questions

Which SIP platforms does the IPS-VOI work with?
It is SIP RFC 3261 compliant and registers to standards-based SIP communication systems. In Cisco environments it is also supported within Cisco SRST endpoint architecture.

Can it be installed outdoors?
Yes. The IP65-rated, vandal-resistant enclosure withstands moisture, dust, corrosion, and vibration across a -10° to 50° C operating range, making it suitable for gates, entrances, and perimeter locations.

How is it powered?
PoE 802.3af over the network cable, or alternatively a regulated +8 to +12 VDC supply at 1000 mA.

Can the IPS-VOI open a door or gate?
Yes. The onboard dry relay contact (1 A at 30 VDC) can trigger door strikes, gate operators, or other external devices as part of an access control integration.

Does it work without a SIP server?
Yes. The station is peer-to-peer capable, so it can call other compatible endpoints directly in smaller deployments.

Can it also be used for paging?
Yes. The IPS-VOI doubles as a SIP paging speaker, so it can receive announcements and emergency notifications in addition to handling two-way intercom calls.

What support does Creation Networks provide?
We offer pre-sale design assistance for SIP intercom and mass notification projects, and the IPS-VOI is backed by AtlasIED's manufacturer warranty.
