Atlas Sound IP-SEA-SD – Angled Enclosure for IPX Display Speakers
Product Overview
The Atlas Sound IP-SEA-SD is an angled surface-mount enclosure designed exclusively for use with AtlasIED IP addressable speaker systems that incorporate display modules, including the IP-SDM, IP-SDMF, IP-SDH, IP-SDMFLED, and related IP Series models. The angled front panel geometry directs sound and visual display content toward occupants rather than straight out from the wall, making this enclosure the correct choice for corridor paging, classroom notification, and mass notification endpoints where display visibility and audio directionality matter. ETL certified to UL 60950-1.
Product Description

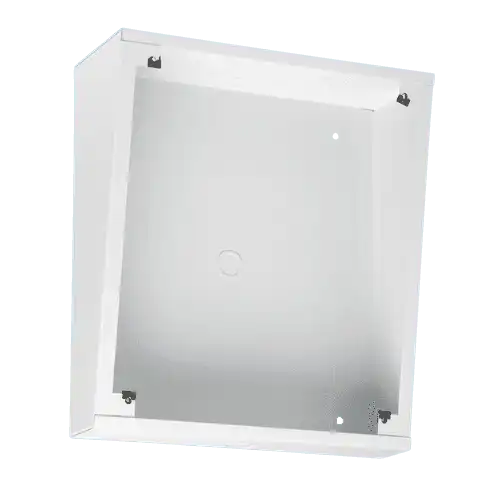

The IP-SEA-SD provides a structured surface-mount housing for AtlasIED IPX Series IP speaker endpoints that include LCD display panels. The angled front design tilts the speaker and display toward the coverage area, improving audio directionality and display legibility for occupants at standing or seated eye level. The enclosure is constructed from 20-gauge cold-rolled steel (CRS) and finished in textured white epoxy, providing a durable surface that accepts paint for color-matching to wall finishes if required. Compatible models include IP-8SCM, IP-SM, IP-SDM, IP-SDMF, IP-SDMFLED, IP-SDH, I8SC+, I8SCM+, I8SCH+, I8SCF+, and I8SCMF+. This wide compatibility covers the primary AtlasIED IPX display speaker lineup, making the IP-SEA-SD a single sourcing SKU for angled enclosure requirements across an IPX system deployment. The ETL certification to UL 60950-1 confirms compliance with safety standards for IT and audio equipment. Revit family files and CAD drawings are available for inclusion in construction documentation. The enclosure carries a 5-year warranty.
Key Features
- Angled Front Panel — Tilts the speaker and LCD display toward occupants for improved audio directionality and display visibility in corridors and classrooms.
- Broad IPX Compatibility — Works with IP-8SCM, IP-SM, IP-SDM, IP-SDMF, IP-SDMFLED, IP-SDH, I8SC+, I8SCM+, I8SCH+, I8SCF+, and I8SCMF+ speaker modules.
- 20-Gauge CRS Construction — Cold-rolled steel body provides structural rigidity and resistance to impact in high-traffic installation environments.
- Textured White Epoxy Finish — Paintable surface allows color matching to existing wall finishes for architectural integration.
- ETL Certified to UL 60950-1 — Third-party safety certification confirms compliance with standards for audio and IT equipment.
- Revit and CAD Files Available — BIM and CAD support simplifies inclusion in architectural and construction documentation packages.
Technical Specifications
| Specification | Value |
|---|---|
| Height | 14.41" (366mm) |
| Width | 13.00" (330mm) |
| Top Depth | 5" (127mm) |
| Bottom Depth | 2.5" (64mm) |
| Construction | 20-Gauge CRS |
| Finish | Textured White Epoxy |
| Safety Listing | ETL Certified, UL 60950-1 |
| Warranty | 60 months from date of purchase |
