Atlas Sound IP-22SYSP – Indoor 2×2 Passive Suspended Ceiling Speaker
Product Overview
The Atlas Sound IP-22SYSP is an installer-friendly 2' x 2' suspended ceiling mount passive speaker designed as an extension for powered IPX series products. Operating at 8 ohms only, it expands announcement and background music coverage in schools, corporate offices, government facilities, houses of worship, and light commercial installations. Its industrial design matches the IP-22SYSM active speaker, allowing mixed active/passive deployments to appear visually consistent throughout a facility.
Product Description
The IP-22SYSP eliminates the cost and wiring complexity of traditional 70V/100V distributed audio by operating as a direct 8-ohm low-impedance extension of an active IPX endpoint via the secondary speaker output. This makes it well-suited for spaces where additional coverage points are needed without additional IP infrastructure. The speaker uses a direct-drive 8-inch loudspeaker with a wide 120° horizontal by 100° vertical dispersion pattern, achieving 95dB sensitivity and a calculated maximum SPL of 105dB at 1 meter. The fully perforated grille and durable metal backcan and baffle ensure consistent appearance and long-term structural integrity in suspended tile ceiling grids. Cable termination is handled via a metal electrical box with 22 AWG bare wire leads. The IP-22SYSP carries UL1480 and UL2043 certifications, qualifying it for use in air handling spaces above suspended ceilings. Dimensions are 5.01" H x 23.69" W x 24.10" D, and it ships at 21.65 lbs. Warranted for 60 months from purchase.
Key Features
- 8Ω Passive Operation — Direct 8-ohm extension of IPX active endpoints; no 70V/100V transformer required.
- Direct-Drive 8" Loudspeaker — Full-range driver delivers 95dB sensitivity and up to 105dB calculated SPL at 1 meter.
- Wide Dispersion — 120° horizontal by 100° vertical pattern provides broad coverage in open ceiling spaces.
- Matches IP-22SYSM — Identical industrial design enables visually uniform mixed active/passive installations.

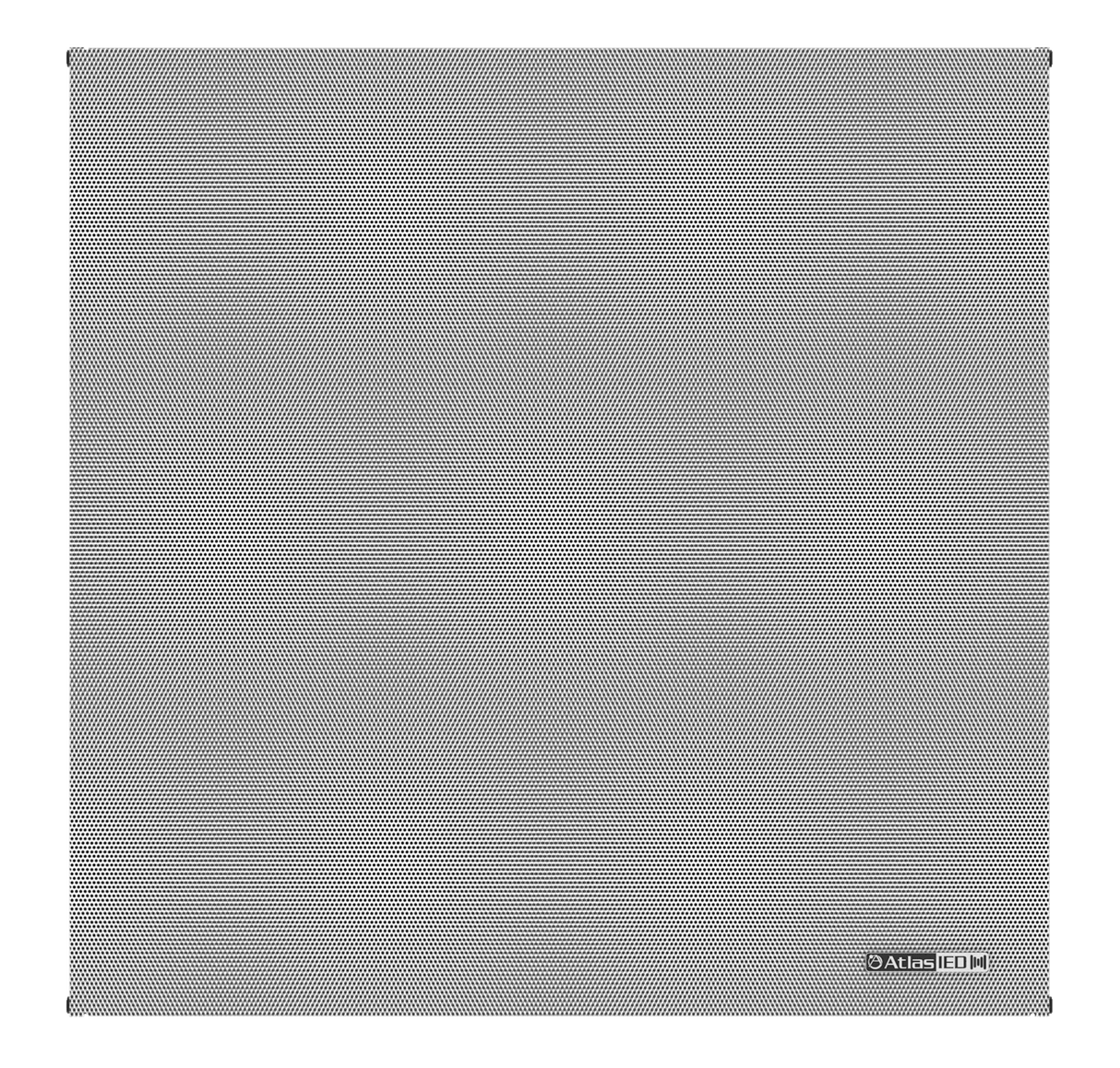

- Fully Perforated Grille — Unobtrusive appearance consistent with commercial suspended ceiling environments.

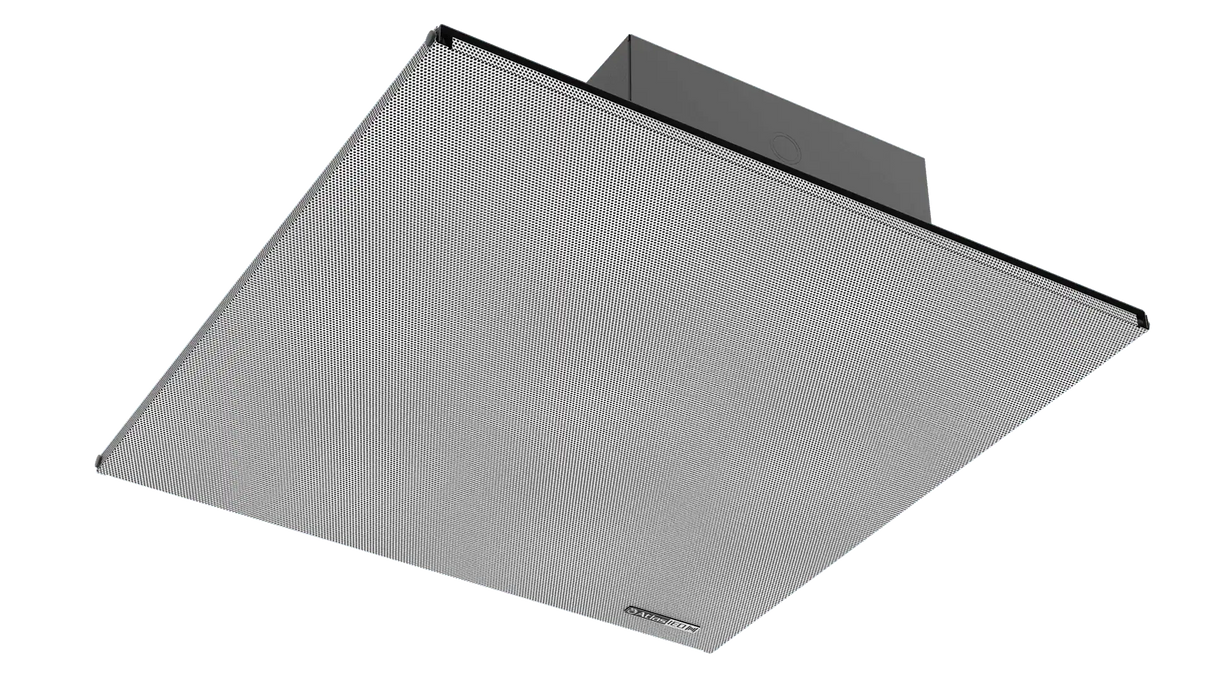

- Durable Metal Construction — Metal backcan, baffle, and electrical box for cable termination ensure installation reliability.
- UL1480 / UL2043 Certified — Approved for use in air handling (plenum) spaces.
Technical Specifications
| Specification | Value |
|---|---|
| Speaker Type | Indoor 2' x 2' Suspended Ceiling Mount Passive Speaker |
| Frequency Response | 110Hz – 6kHz |
| Sensitivity | 95dB SPL |
| Maximum SPL (1m) | 105dB SPL (Calculated) |
| Dispersion | 120° Horizontal x 100° Vertical |
| Connector Type | 22 GA. DQSK Bare Wire Leads |
| Dimensions (HxWxD) | 5.01" x 23.69" x 24.10" (127mm x 602mm x 612mm) |
| Weight | 14.15 lbs (6.42kg) |
| Shipping Weight | 21.65 lbs (9.82kg) |
| Safety Listing | UL1480 / UL2043 Certified |
| Warranty | 60 months from date of purchase |
