Atlas Sound IP-12SYSP – Indoor 1x2 Passive Suspended Ceiling Speaker
Product Overview

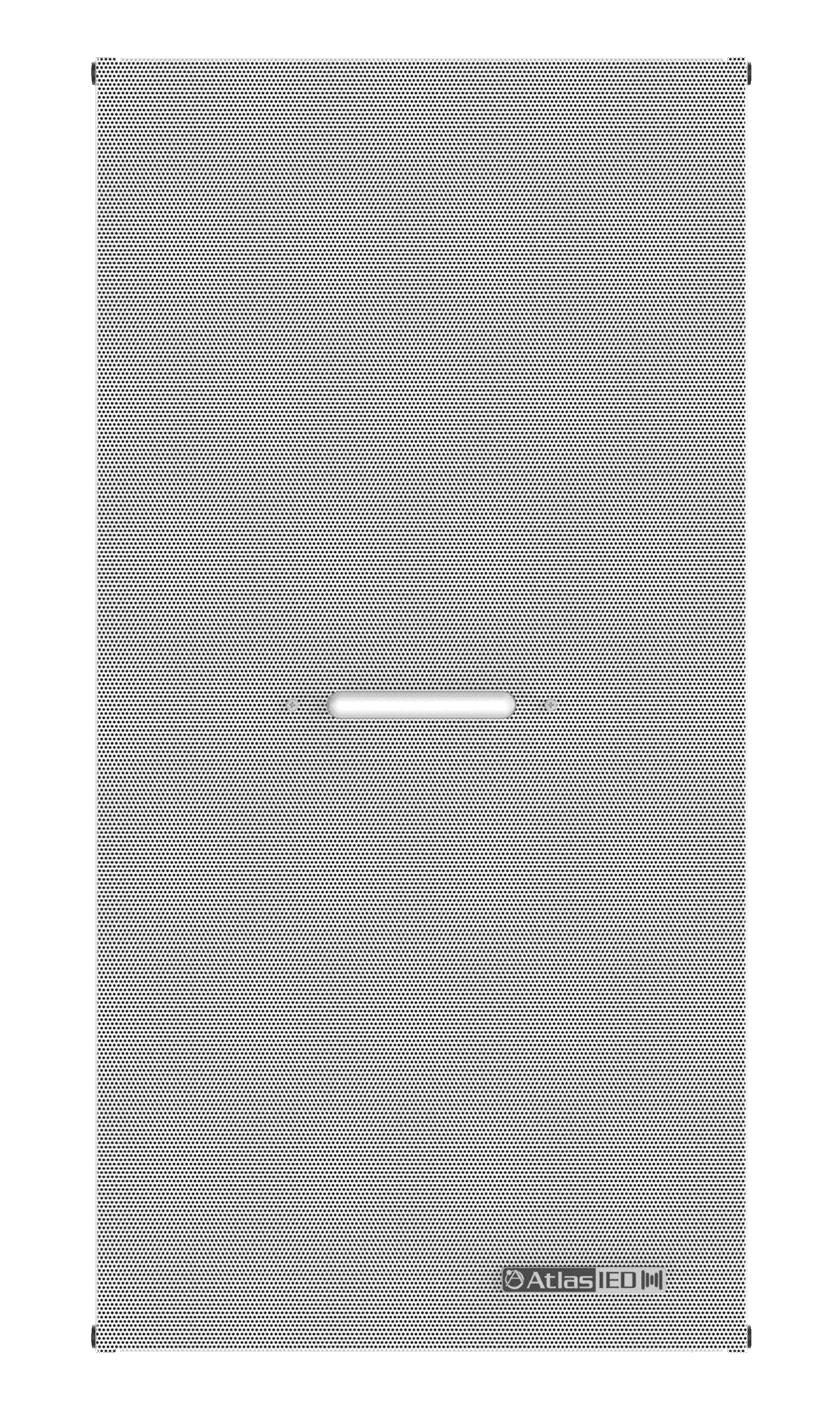

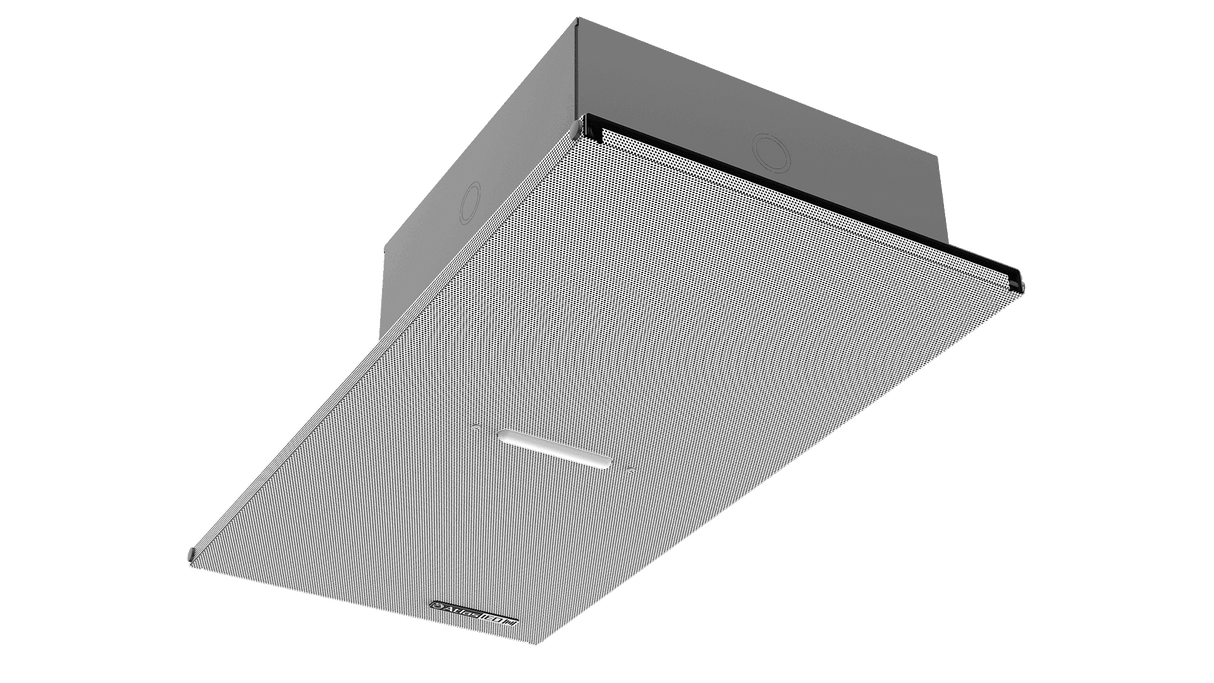

The Atlas Sound IP-12SYSP is an installer-friendly 1' x 2' suspended ceiling mount passive speaker designed as an extension component for powered IPX series products. At 8 ohms only, it expands announcement and background music coverage without the cost and wiring complexity of 70V/100V distributed audio. Its industrial design matches the IP-12SYSM active speaker for visually consistent mixed-system deployments in schools, corporate offices, government facilities, and light commercial installations.
Product Description
The IP-12SYSP connects directly to the secondary speaker output of an active IPX endpoint, functioning as a direct 8-ohm extension without requiring a step-down transformer. This simplifies wiring in spaces needing additional coverage points beyond an existing IPX deployment. The speaker uses a direct-drive 8-inch loudspeaker with a sensitivity of 95dB SPL and a wide 120° horizontal by 130° vertical dispersion angle, providing broad coverage in open-plan ceiling environments. Calculated maximum SPL at 1 meter is 105dB. The unit’s 1' x 2' form factor fits standard half-tile suspended ceiling grids, and its fully perforated grille, durable metal backcan, baffle, and metal electrical box for cable termination ensure a professional installation finish. Connection is via 22 AWG bare wire leads. UL1480 and UL2043 certifications qualify it for use in plenum air handling spaces. Dimensions are 5.01" H x 23.69" W x 12.10" D at 9.25 lbs. Warranted for 60 months from purchase.
Key Features
- 8Ω Passive Operation — Direct extension of IPX active endpoints; no transformer required.
- 1’ x 2’ Form Factor — Fits standard half-tile suspended ceiling grids for minimal visual impact.
- Direct-Drive 8" Loudspeaker — 95dB sensitivity and up to 105dB calculated SPL at 1 meter.
- Wide Dispersion — 120° horizontal by 130° vertical coverage for broad distribution in open spaces.
- Matches IP-12SYSM Design — Uniform appearance across mixed active/passive IPX deployments.
- Durable Metal Construction — Metal backcan, baffle, and electrical box for long-term installation integrity.
- UL1480 / UL2043 Certified — Listed for use in plenum air handling spaces.
Technical Specifications
| Specification | Value |
|---|---|
| Speaker Type | Indoor 1' x 2' Suspended Ceiling Mount Passive Speaker |
| Frequency Response | 110Hz – 6kHz |
| Sensitivity | 95dB SPL |
| Maximum SPL (1m) | 105dB SPL (Calculated) |
| Dispersion | 120° Horizontal x 130° Vertical |
| Connector Type | 22 GA. DQSK Bare Wire Leads |
| Dimensions (HxWxD) | 5.01" x 23.69" x 12.10" (127mm x 602mm x 307mm) |
| Weight | 9.25 lbs (4.20kg) |
| Shipping Weight | 13.4 lbs (6.09kg) |
| Safety Listing | UL1480 / UL2043 Certified |
| Warranty | 60 months from date of purchase |
