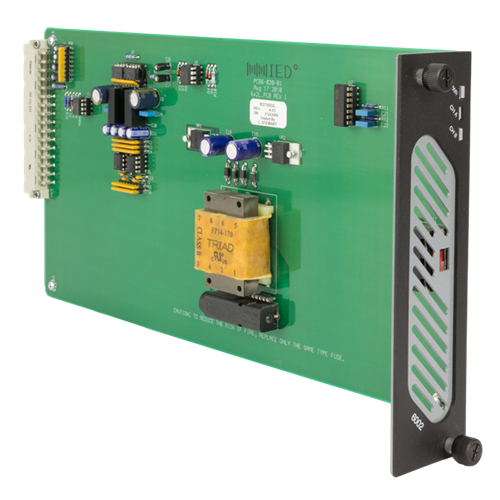

Atlas Sound IEDT6002H – 2-Channel Line Driver Card (240V)
What is the Atlas Sound IEDT6002H?
The IEDT6002H (Model T6002) is a 2-channel line driver module in the Titan Series Digital Distribution System, installing into a T9160 Integrated Power Amplifier Mainframe or T6400 2-card mainframe, built for 220–240V AC systems.
What does the Atlas Sound IEDT6002H do?
The T6002 has two low-impedance, balanced, floating, active outputs designed to drive very long lines, with a transformerless output design that provides wider bandwidth while minimizing distortion. In applications where the T9160 mainframe must drive mixed speaker loads — conventional 70V-line speakers alongside self-powered speakers requiring line-level input — the T6002 supplies the line-level outputs while Titan Series power amplifier cards drive the distributed speakers, both operating simultaneously in the same mainframe.
What are the key features of the Atlas Sound IEDT6002H?
- Line-level output — Drives self-powered speaker arrays from the same Titan mainframe as distributed speakers.
- Transformerless design — Wide bandwidth, low distortion.
- 220–240V AC — Built for international electrical systems.
- Drop-in card — Installs in a T9160 or T6400 mainframe card slot.
Technical Specifications
| Maximum Output Level | +24dBu |
| Signal to Noise | >100dB |
| THD | 0.0006% (2kHz input, max output) |
| Input Impedance | 10kΩ |
| Voltage | 240V |
| Input Power | 5-Watts |
| Dimensions | 6.8" H x 1.8" W x 12.5" D |
| Weight | 4.0 lbs (1.8kg) |
Specifications sourced from AtlasIED. This is a legacy Titan Series card (T9160/T6400 mainframes) — not compatible with the newer TitanONE T112; see the T2LD-T1 for that platform. See the Atlas Sound collection.
Frequently Asked Questions
Is this compatible with the T112 TitanONE mainframe?
No. This card is for the legacy Titan Series T9160 or T6400 mainframes; the T2LD-T1 is the equivalent card for the newer T112 TitanONE mainframe.
What's the difference between this and the 120V version?
Same performance, built for 220–240V AC systems instead of 110–120V.
