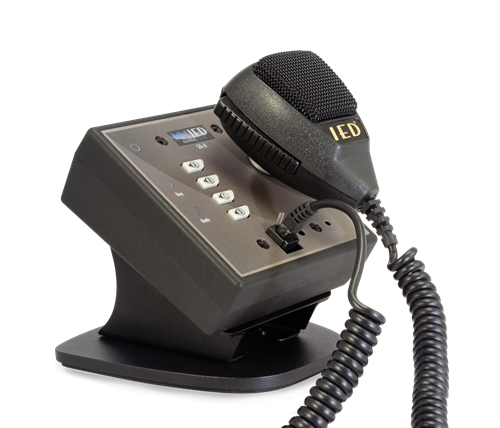

Atlas Sound IEDA524-H – 524 Series Digital Microphone Station
What is the Atlas Sound IEDA524-H?
The IEDA524-H is a 4-button digital microphone station for initiating audio/visual announcements, messages, and pages within GLOBALCOM and vACS Series Announcement Control Systems, built for wall-mount installation with a handheld push-to-talk microphone.
How does the Atlas Sound IEDA524-H work?
Each of the four zone-group selection buttons is configured in IED Enterprise or vACS Console software as a one-touch action — a live page, a recorded page, a permanent message playback, or any other action type available in the GLOBALCOM configuration software. A single Ethernet connection carries both audio and control data using CobraNet technology, and the station is powered directly from any standard PoE switch (IEEE 802.3af), with its onboard 32-bit processor handling button input, Ethernet communication, audio processing, and self-test diagnostics.
What are the key features of the Atlas Sound IEDA524-H?
- 4 configurable buttons — One-touch zone paging, recorded messages, or any GLOBALCOM action.
- Handheld push-to-talk mic — Live announcements from a single station.
- Single Ethernet link — Carries audio, control, and PoE power together.
- CobraNet technology — Time-sensitive, low-latency network audio.
- 32-bit onboard processing — Handles input, audio, and self-diagnostics.
Where is the Atlas Sound IEDA524-H typically used?
- Government space
- Multi-purpose room
Technical Specifications
| Buttons | 4 zone-group selection + PTT on mic |
| Network Audio | CobraNet, 100Mbps Ethernet |
| Frequency Response | +0, -1.0dB, 22Hz–22kHz |
| Signal to Noise | >85dB |
| Sample Rate | 48kHz, 24-bit A/D |
| Dimensions (Wall Mount) | 4.95" W x 4.95" H x 1.9" D |
| Power | IEEE 802.3af PoE |
| Warranty | 36 months |
Specifications sourced from AtlasIED. Optional desktop base: IEDA520DTB (sold separately). See the Atlas Sound collection.
Frequently Asked Questions
Can this be used on a desktop instead of wall-mounted?
Yes, with the optional IEDA520DTB weighted base, sold separately.
What cabling does it require?
CAT5e or better, up to 100 meters to the connected switch, installed per ANSI/TIA/EIA 568B standards.
What warranty applies?
36 months from date of purchase.
