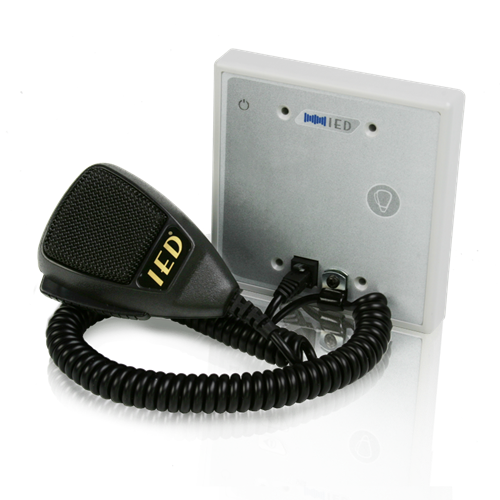

Atlas Sound IEDA520FME – 528 Series Expansion Microphone Station
What is the Atlas Sound IEDA520FME?
The IEDA520FME is a 528 Series expansion microphone station that interfaces with a parent 528 series station, letting a user pick up and key the expansion mic to achieve the same announcement result as the parent station — no separate configuration or zone assignment needed.
How does the Atlas Sound IEDA520FME work?
Up to three expansion stations connect to a single parent station over Ethernet cable, extending microphone access to additional points in the same room or adjacent spaces without adding another full paging station. A push-to-talk button on the handheld microphone triggers the same announcement the parent station would send. The unit mounts in a standard 2-gang electrical box, or to a 528 series backbox using the optional IEDA528SKA adapter plate; the optional IEDA528SKBB backbox adds single-gang or desktop (IEDA520DTB) mounting.
What are the key features of the Atlas Sound IEDA520FME?
- Expansion station — Extends a parent 528 series station's mic access to additional points.
- Up to 3 expansions per parent — Connected via Ethernet cable.
- Push-to-talk handheld mic — Same announcement result as the parent station.
- Flexible mounting — 2-gang box, 528 backbox, or desktop base (accessories sold separately).
Technical Specifications
| Frequency Response | +0, -1.0dB, 22Hz–22kHz |
| Signal to Noise | >85dB |
| THD | <0.1% |
| Gain | 23dB |
| Dimensions | 5" W x 5" H x 1.1" D |
| Operating Temp. | 32°F–104°F (0°C–40°C) |
| Warranty | 36 months |
Specifications sourced from AtlasIED. Requires a parent 528 series station (sold separately). See the Atlas Sound collection.
Frequently Asked Questions
Can this work as a standalone paging station?
No, it requires a parent 528 series station and connects via Ethernet cable.
How many expansion stations can one parent support?
Up to three IEDA520FME expansion stations per parent station.
