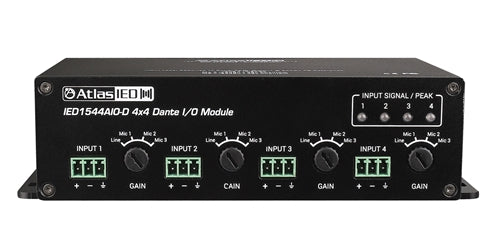

Atlas Sound IED1544AIO-D – 4x4 Analog/Dante I/O Module
What is the Atlas Sound IED1544AIO-D?
The IED1544AIO-D is a 4-input x 4-output mic/line level analog pre-amplifier that converts analog audio to Dante network audio and back, giving integrators a gateway between conventional analog gear and a Dante-based GLOBALCOM system.
How does the Atlas Sound IED1544AIO-D work?
Each of the four analog inputs is selectable between line level and three mic gain settings, with 48V phantom power available when a mic setting is selected. The four inputs convert into Dante network audio routable via Dante Controller, while the four outputs convert Dante digital audio received over the LAN back into analog line-level signal. Indicators show network connection, network audio traffic, and power status. Typical uses include hotel ballroom analog announcing stations, school gym/auditorium audio interfaces, converting analog paging stations to Dante, and transportation station audio interfaces.
What are the key features of the Atlas Sound IED1544AIO-D?
- 4x4 analog/Dante conversion — Bridges conventional analog gear into a Dante network.
- Selectable line or mic gain — Three mic gain settings plus line level, per input.
- 48V phantom power — Available when a mic gain setting is selected.
- Single RJ45 network connection — Simple CAT5 Ethernet integration.
Where is the Atlas Sound IED1544AIO-D typically used?
- Government space
- Multi-purpose room
Technical Specifications
| Inputs | 4, 3-position Phoenix, 3.5mm pitch |
| Input Gain | Line -5dBu; Mic settings -15/-22/-30dBu (ref. 20dBFS) |
| Phantom Power | 48VDC when mic setting selected |
| Outputs | 4, balanced line level |
| Network Connection | Single RJ45, CAT5 |
| Frequency Response | 20Hz and up |
Specifications sourced from AtlasIED. See the Atlas Sound collection for compatible Dante GLOBALCOM controllers.
Frequently Asked Questions
Can this take a microphone input directly?
Yes, each input is selectable to one of three mic gain settings with 48V phantom power available, or to line level.
What's a typical use case?
Converting an analog paging station, ballroom announce mic, or gym/auditorium audio interface into Dante network audio for a GLOBALCOM system.
