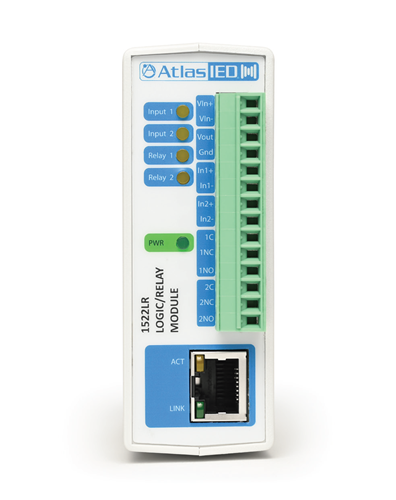

Atlas Sound IED1522LR – 2 Logic Input x 2 Relay Output I/O Device
What is the Atlas Sound IED1522LR?
The IED1522LR is a cost-effective logic/relay interface module for an AtlasIED GLOBALCOM system, providing two electro-mechanical relays and two optically-isolated inputs for remote control and automation applications.
How does the Atlas Sound IED1522LR work?
The relays are controlled remotely using actions configured in the GLOBALCOM GCK application and 5400 Designer control software, so an integrator can trigger door strikes, signage, or other equipment from the same platform driving paging and announcements. The two optically-isolated inputs can trigger actions or serve as logic monitor points that register faults in the system. The module is powered over IEEE 802.3af PoE and communicates with other system devices over Ethernet, with fully supervised system voltage and internal temperature monitoring, and settings stored in non-volatile memory.
What are the key features of the Atlas Sound IED1522LR?
- 2 electro-mechanical relays — Remote control of external equipment via GCK or 5400 Designer.
- 2 optically-isolated inputs — Trigger actions or monitor for system faults.
- PoE powered — Single Ethernet connection for power and control.
- Supervised voltage and temperature monitoring — Built-in self-diagnostics.
- Rugged DIN-rail enclosure — Compact rack or panel installation.
Technical Specifications
| Relays | 2, SPDT, 3A contact rating |
| Inputs | 2, optically-isolated |
| Power | 48VDC (PoE), <3.84W |
| Mounting | DIN rail |
| Dimensions | 3.88" H x 1.41" W x 3.10" D |
| Weight | 5.5 oz (156g) |
| Operating Temp. | -30°C to +65°C |
| Warranty | 36 months |
Specifications sourced from AtlasIED. See the Atlas Sound collection for compatible GLOBALCOM controllers.
Frequently Asked Questions
What can the relays control?
Any equipment that accepts a dry contact closure — door strikes, signage, HVAC interlocks, or other automation — triggered from GCK or 5400 Designer.
Does it need a separate power supply?
No, standard PoE handles it.
What warranty applies?
36 months from date of purchase.
