Atlas Sound IED1516LI – 16 Input Logic Module
What is the Atlas Sound IED1516LI?

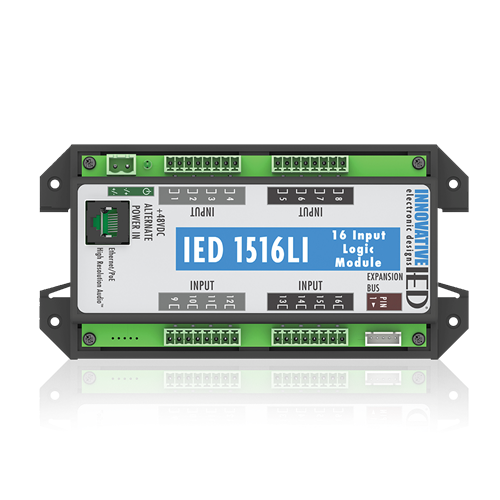

The IED1516LI is a network logic input device that interfaces external equipment — fire panels, security systems, and similar sources — with an IED GLOBALCOM announcement control system, providing 16 optically-isolated inputs.
How does the Atlas Sound IED1516LI work?
Each input can be driven using dry contact closures or 0 to 50VDC logic signals, with a green LED above each input that illuminates when activated. The GLOBALCOM System Management Center software configures logic inputs to launch announcements, pre-recorded messages, events, or fault reports. The device is powered over IEEE 802.3af PoE (or an alternate 48VDC supply where PoE isn't available) and communicates with other system devices over Ethernet, with settings stored in non-volatile memory.
What are the key features of the Atlas Sound IED1516LI?
- 16 optically-isolated inputs — Interfaces fire panels, security systems, and other contact/logic sources.
- Expandable to 32 inputs — Add the optional IED1516LI-E expansion module.
- PoE powered — Simplified networked deployment; 48VDC alternate input available.
- Full GLOBALCOM vACS integration — Configured via web browser and System Management Center.
Technical Specifications
| Inputs | 16 optically-isolated |
| Power | 48VDC (PoE IEEE 802.3af), 3W (3.5W with expansion) |
| Mounting | DIN rail, panel, or wall mount |
| Operating Temp. | -30°C to +65°C |
| Warranty | 36 months |
Specifications sourced from AtlasIED. Expansion module: IED1516LI-E. See the Atlas Sound collection.
Frequently Asked Questions
Can I add more inputs later?
Yes, the optional IED1516LI-E expansion module brings total capacity to 32 inputs.
Does it need a separate power supply?
No, standard PoE handles it; an alternate 48VDC input is available if PoE isn't used.
What warranty applies?
36 months from date of purchase.
