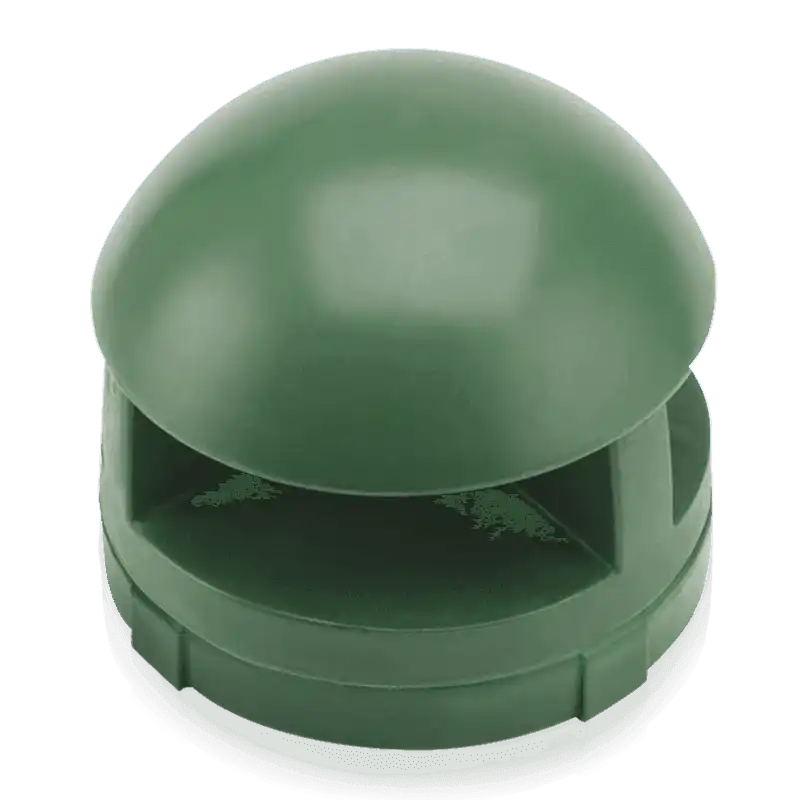

Atlas Sound GSH-G – All-Weather 70V Outdoor Landscape Speaker Green

Product Overview

The AtlasIED GSH-G is an all-weather outdoor landscape speaker engineered for permanent installation in architecturally landscaped commercial environments. Featuring a coaxial 8" driver with a 32-watt 70V transformer and IP55-rated weather protection, it is designed for theme parks, resort hotels, and any exterior commercial space where audio coverage must blend with the surroundings. The two-piece design supports phased installation, protecting the speaker during construction. Long-tail search applications include outdoor 70V landscape speaker for theme parks, all-weather garden speaker for commercial installation, and IP55 outdoor speaker for hotels and resorts.

Product Description

The GSH-G uses a coaxial 8" driver with a polypropylene/Kevlar cone, rubber surround, 1.5" voice coil, and a 21-oz magnet paired with a 1/2" mylar dome tweeter for clear high-frequency reproduction. The 360-degree horizontal dispersion pattern distributes audio evenly across open outdoor areas without the dead spots typical of directional speakers. An IP55 rating protects against dust ingress and water jets from any direction, qualifying the GSH-G for full outdoor year-round use. The 32-watt 70V transformer with 8, 16, and 32-watt tap options and 8Ω bypass provides flexible integration into both 70V distributed systems and direct-drive amplifiers. The two-piece design separates the speaker head (GSH-G) from the base (GSBS-G short or GSBT-G tall, sold separately), enabling a two-phase installation process: the base is installed and secured during initial construction, and the speaker head is added after landscaping and construction work is complete. A protective cover on the base keeps debris and moisture out during the construction phase. The green finish blends with grass, shrubs, and foliage, maintaining the aesthetic integrity of landscaped areas. The unit is available as a complete kit: GSS-G (speaker + short base) or GST-G (speaker + tall base).

Key Features

• Coaxial 8" Driver — Polypropylene/Kevlar cone with rubber surround delivers full-range audio suited to outdoor ambient listening.
• 360-Degree Horizontal Dispersion — Omnidirectional coverage pattern distributes audio evenly across open outdoor spaces without directional nulls.
• IP55 Weather Rating — Protected against dust and water jets from any direction for reliable outdoor year-round operation.
• 32W 70V/8Ω Transformer — Power taps at 8, 16, and 32 watts with 8Ω bypass for compatibility with distributed and direct-drive systems.
• Two-Phase Installation Design — Base installs during construction; speaker head attaches after site work is complete, protecting the speaker from construction damage and theft.

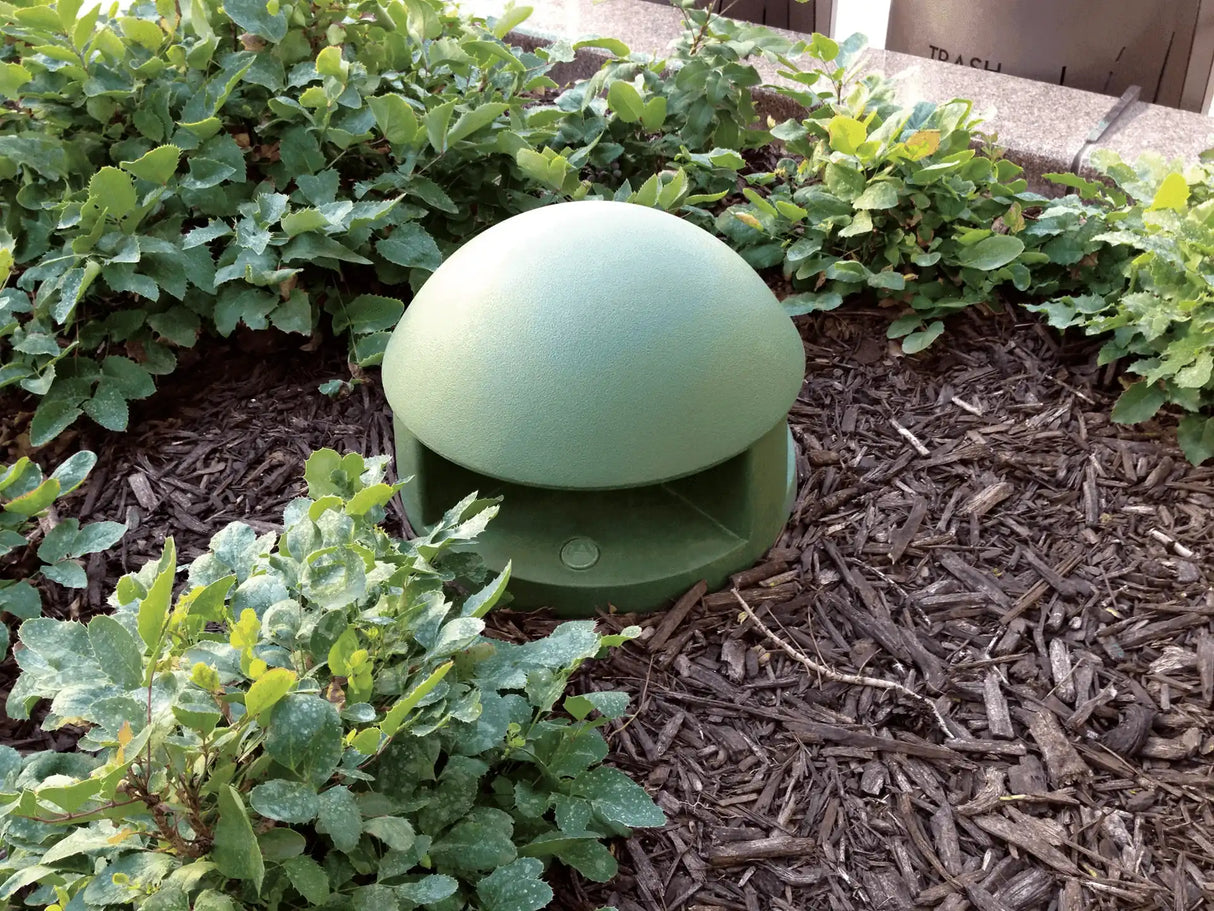

• Green Finish — Blends with grass and foliage for discreet installation in landscaped commercial and resort environments.
• Base Sold Separately — Compatible with GSBS-G (short base) or GSBT-G (tall base); also available as complete kits GSS-G and GST-G.

Typical Applications

• Outdoor commercial space
• House of worship (exterior grounds)
• Multi-purpose room (outdoor)

Technical Specifications

Frequently Asked Questions

Q: Does the GSH-G include a base?

A: No. The GSH-G is the speaker head only. It requires either the GSBS-G (short base) or GSBT-G (tall base), sold separately. Complete kits — GSS-G (with short base) and GST-G (with tall base) — are available if you want both components together.

Q: What is the purpose of the two-piece design?

A: The two-phase design allows the base to be installed during initial construction, protecting it with a debris cover, while the speaker head is installed afterward. This prevents damage from construction activity and reduces the risk of theft from the job site.

Q: Can the GSH-G be used in a standard 70V distributed system?

A: Yes. The integrated 32W 70V transformer with power taps at 8, 16, and 32 watts connects directly to a 70V distributed amplifier.

Q: What is the IP55 rating on the GSH-G?

A: IP55 indicates protection against dust ingress and water jets from any direction. This qualifies the speaker for permanent outdoor installation exposed to weather.

Q: What kind of dispersion pattern does the GSH-G produce?

A: The GSH-G produces a 360-degree horizontal by 50-degree vertical dispersion pattern, providing omnidirectional coverage suited to open outdoor plazas, gardens, and pathways.

Q: What finish is available?

A: The GSH-G is available in a green finish designed to blend with grass, groundcover, and foliage in landscaped environments.
