Atlas Sound GD87W – 8" Coaxial In-Ceiling Speaker 70V 8W Transformer with Baffle
Atlas Sound GD87W – 8" Coaxial In-Ceiling Speaker 70V 8W Transformer with Baffle is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Atlas Sound GD87W – 8" Coaxial In-Ceiling Speaker 70V 8W Trans...
Product Overview
The Atlas Sound GD87W is a complete 8" coaxial in-ceiling speaker package that includes a factory-installed 8-watt 70.7V transformer and a white CRS 62-8 baffle. It delivers the same sonic characteristics as the legacy AtlasIED C803A, allowing seamless expansion or replacement in existing C803A-based systems. The GD87W is UL1480 and UL2043 listed, making it suitable for life safety paging and plenum installations. It is an ideal primary speaker for distributed background music and paging in restaurants, retail, offices, healthcare, and hospitality environments.
Product Description

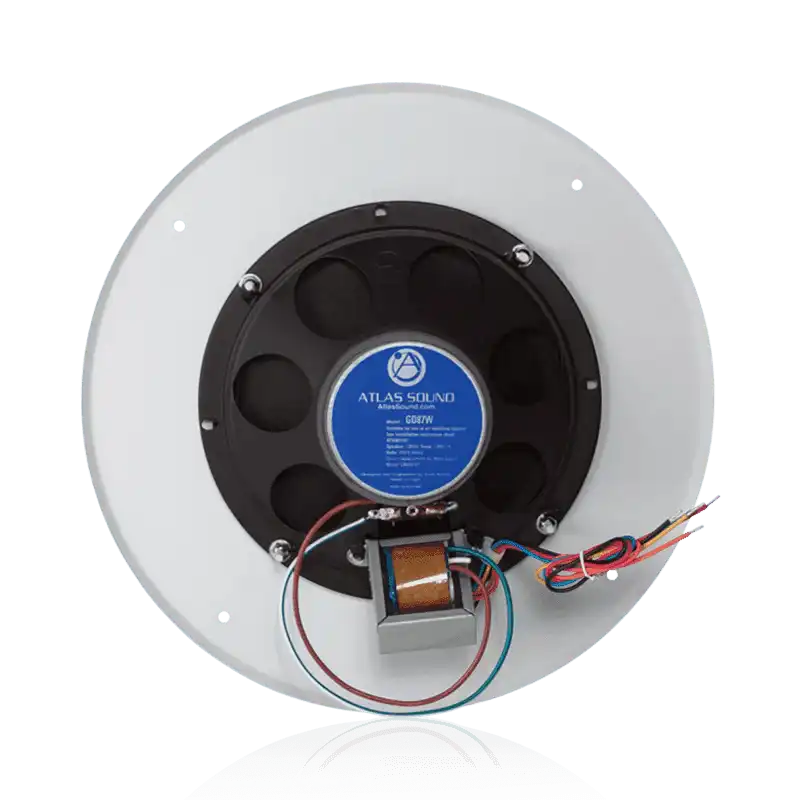

The GD87W combines a high-performance 8" coaxial driver with a factory-matched 70.7V transformer and 62-8 baffle in a single, pre-assembled package ready for installation. The coaxial driver integrates an 8" (203mm) full-size low-frequency woofer with a 3" (76mm) high-frequency tweeter coupled through a built-in crossover network, delivering wide 105-degree (at -6dB, 2kHz octave band) sound dispersion from a single ceiling opening. The woofer uses a 10 oz. (260g) ceramic magnet and the tweeter uses a 2.35 oz. (67g) ceramic magnet, providing an average sensitivity of 96dB (1W/1m). The nominal frequency response spans 45Hz to 19kHz, with the transformer extending usable response from 50Hz to 15kHz (+1dB). The 8-watt 70.7V transformer features audio-grade laminations, maximum insertion loss of 0.6dB, and four primary tap settings of 1, 2, 4, and 8 watts for precise 70V load management. The factory-installed 62-8 CRS baffle includes concealed speaker mounting studs and screw-mount hardware with a white powder-coat epoxy finish. Safety listings to UL1480 and UL2043 confirm the unit is appropriate for life safety signal and plenum applications. The product is individually packaged for efficient stocking and includes a 60-month warranty.
Key Features
- 8" Coaxial Driver — Integrated woofer and tweeter with built-in crossover for full-range performance from a single opening.
- 96dB Average Sensitivity — High output efficiency reduces amplifier power demands in distributed systems.
- 105° Dispersion at 2kHz — Wide coverage angle reduces the number of ceiling locations required per zone.
- Factory-Installed 8W 70.7V Transformer — Audio-grade laminations, 0.6dB max insertion loss, 50Hz–15kHz ±1dB.
- Four Primary Taps: 1, 2, 4, 8W — Flexible load distribution for 70V system design.

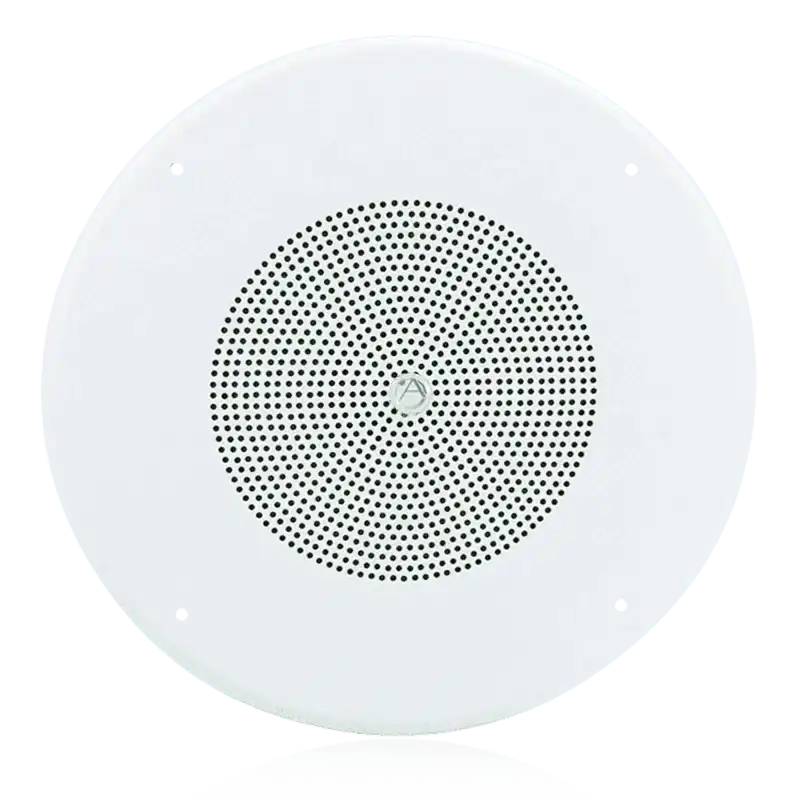

- 62-8 CRS Baffle Included — White powder-coat epoxy, concealed mounting studs, clean ceiling appearance.
- C803A Drop-In Compatibility — Identical sonic profile allows expansion of legacy C803A installations.
- UL1480 / UL2043 Listed — Plenum-rated and life safety eligible.
- 60-Month Warranty — Long-term coverage for permanent commercial deployment.
Technical Specifications
| Specification | Value |
|---|---|
| Speaker Type | 8" Coaxial (Treated Paper Cone) |
| Woofer Size | 8" (203mm) |
| Tweeter Size | 3" (76mm) |
| Frequency Response (Driver) | 45Hz – 19kHz (nominal) |
| Frequency Response (w/ Transformer) | 50Hz – 15kHz (+1dB) |
| Sensitivity | 96dB Average (1W/1m) |
| Dispersion | 105° (-6dB, 2kHz Octave Band) |
| Transformer Line Voltage | 70.7V |
| Transformer Power Taps | 1, 2, 4, 8 Watts |
| Transformer Insertion Loss | 0.6dB max |
| Baffle | 62-8 CRS, White Powder-Coat Epoxy |
| Baffle Diameter | 8 1/8" (20.64cm) |
| Safety Listings | UL1480, UL2043 |
| Warranty | 60 months from date of purchase |
