Atlas Sound GA-15T – Re-Entrant Horn Loudspeaker with 25V/70.7V 15W Transformer
Atlas Sound GA-15T – Re-Entrant Horn Loudspeaker with 25V/70.7V 15W Transformer is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Atlas Sound GA-15T – Re-Entrant Horn Loudspeaker with 25V/70.7V 15W...
Product Overview

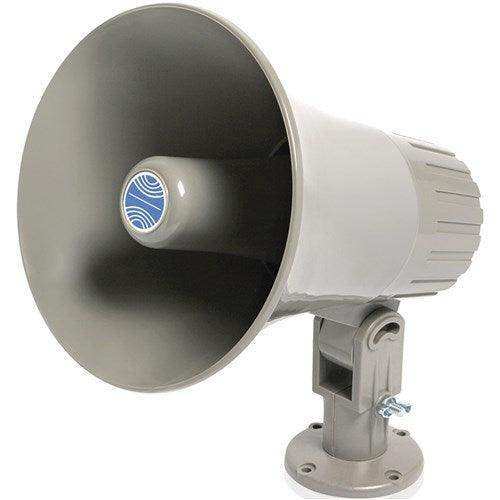

The Atlas Sound GA-15T is a 15-watt re-entrant horn loudspeaker with a built-in 25V/70.7V multi-tap transformer, designed for voice paging, background music, and intercom applications in indoor and outdoor commercial environments. Featuring double re-entrant horn construction for optimized sound penetration and a high-impact plastic horn body for weather resistance, the GA-15T is a durable and flexible paging solution rated IP56 for outdoor use. It includes a multi-position knob for selecting power taps from 0.5W to 15W on a 70.7V line.
Product Description
The GA-15T re-entrant horn loudspeaker is engineered for demanding voice paging and music distribution applications where reliable sound penetration through ambient noise is essential. The double re-entrant horn design maximizes speaker output efficiency, pushing sound through high-noise environments such as warehouses, loading docks, parking facilities, and outdoor campus areas. A ceramic magnet compression driver delivers consistent, intelligible voice reproduction over the 500Hz to 3kHz frequency range at 103dB sensitivity with an 80-degree dispersion pattern. The built-in 25/70.7V combination transformer features a multi-position rotary knob allowing field selection of power taps at 0.5, 1, 2, 4, 8, and 15 watts. The unit is also wired for direct 8-ohm connection, allowing installation without a transformer when the amplifier output supports it. The round, high-impact plastic horn withstands high-humidity outdoor environments and resists UV degradation, UV and physical impact. An adjustable surface mounting bracket supports multiple vertical and horizontal positioning options for precise aim and coverage. Each GA-15T ships with 21-gauge, 18-inch color-coded wire leads for easy polarity matching and installation. The entire assembly is gray with silver-colored hardware. A 60-month warranty provides long-term assurance for installations in schools, warehouses, industrial facilities, retail, and transportation environments.
Key Features
- Double Re-Entrant Horn Construction — Maximizes sound output and penetration in high-ambient-noise environments.
- 103dB Sensitivity — High-efficiency output for long-throw paging and music coverage.
- 25V/70.7V Multi-Tap Transformer — Rotary knob selects 0.5, 1, 2, 4, 8, or 15W taps for 70.7V line systems.
- 8-Ohm Direct Wiring Option — Bypasses transformer for direct amplifier connection when required.
- IP56 Rated — Suitable for outdoor and high-humidity installations.
- High-Impact Plastic Horn — Durable construction resistant to physical impact and weather.
- Adjustable Surface Mounting Bracket — Supports multiple vertical and horizontal aiming positions.
- Color-Coded Wire Leads — 21-gauge, 18-inch leads included for easy polarity matching.
Technical Specifications
| Specification | Value |
|---|---|
| Model | GA-15T |
| Frequency Response | 500Hz – 3kHz |
| Sensitivity | 103dB |
| Power Taps | 0.5, 1, 2, 4, 8, 15W @ 70.7V |
| Transformer Voltages | 25V / 70.7V |
| Dispersion | 80° |
| Depth | 9-3/8" (23.81 cm) |
| Diameter | 7-1/2" (19.05 cm) |
| Color | Gray with silver hardware |
| IP Rating | IP56 |
| Shipping Weight | 3.63 lbs (1.64 kg) |
| Warranty Period | 60 months from date of purchase |
