Product Overview

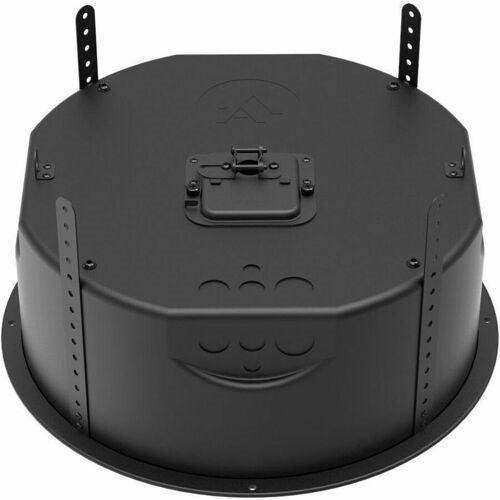

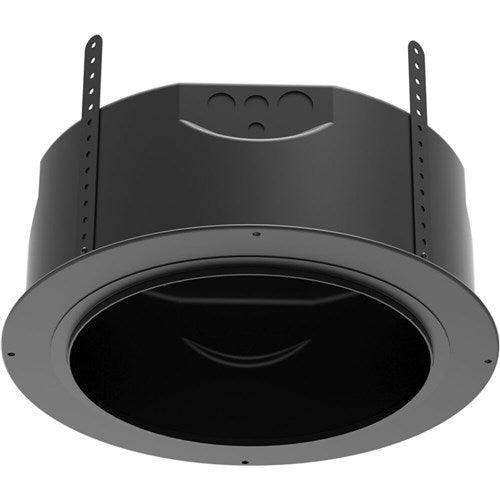

The Atlas Sound FC-8TPIC is the pre-wired back can component of the IsoFlare FC-8TPI two-part pre-install ceiling speaker system. Designed for first-fix installation during the electrical phase of construction, the back can is placed before the ceiling is finished, protecting the wiring infrastructure while the driver (FC-8DRV) is installed later. This staged approach eliminates the risk of damaging premium speaker components during the building construction phase. UL Listed, IP44 rated, and compatible with 70V/100V and 8-ohm operation.
Product Description
The FC-8TPIC is the back can portion of the IsoFlare FC-8TPI pre-install speaker system, used in commercial installations that require premium audio quality in a designer-friendly package. The pre-install methodology allows electrical contractors to complete rough-in wiring and mount the back can during construction, then have AV installers fit the FC-8DRV driver module at finishing stage without revisiting cable runs. The back can is pre-wired and accommodates the full-bandwidth, high-sensitivity FC-8DRV coaxial driver, which features a ferrofluid-cooled titanium HF driver with neodymium magnet, a weather-treated multi-fiber cone for accurate midrange, and a 60W low-insertion-loss 70/100V transformer with an easy-access rotary tap selector. The combined FC-8TPI system covers 44Hz–30kHz (−10dB), achieves 92dB sensitivity at 1W/1m, and delivers a 90° nominal coverage angle. Maximum SPL reaches 112dB average and 118dB peak. Enhanced voicing presets are available through the AtlasIED Atmosphere DSP platform. Warranted for 60 months from purchase.
Key Features
- Pre-Install Back Can — Enables first-fix installation during electrical rough-in, protecting against construction-phase damage to speaker parts.
- Pre-Wired Housing — Ready for immediate wiring at rough-in; accepts the FC-8DRV driver at finishing stage.
- IsoFlare Point Source Technology — When paired with the FC-8DRV driver, delivers homogeneous spherical wavefront propagation for consistent off-axis performance.
- 70V/100V and 8Ω Compatible — Full flexibility for distributed audio and low-impedance applications.
- 60W Low-Loss Transformer — High-efficiency transformer preserves driver performance across selectable taps (60W, 30W, 15W, 7.5W at 70V).
- Bezel-Less Magnetically Secured Grille — Clean aesthetic; grille is paintable for architectural integration.
- UL Listed / IP44 Rated — Safety certified and protected against splashing water.
- Atmosphere Platform Compatible — Enhanced voicing presets available via AtlasIED Atmosphere DSP.
Technical Specifications
| Specification | Value |
|---|---|
| Type | Pre-Install Back Can (FC-8TPI System Component) |
| System Frequency Range (−10dB) | 44Hz – 30kHz |
| System Frequency Response (±3dB) | 59Hz – 25kHz |
| System Sensitivity (1W @ 1m) | 92dB |
| Coverage Angle (−6dB) | 90° |
| Power Handling – Average / Programme / Peak | 90W / 180W / 360W |
| Nominal Impedance | 8 Ohms |
| Transformer Taps | 60W, 30W, 15W (7.5W at 70V) via rotary selector |
| Maximum SPL (Average / Peak) | 112dB / 118dB |
| Safety Certification | UL Listed; IP44 |
| Warranty | 60 months from date of purchase |
