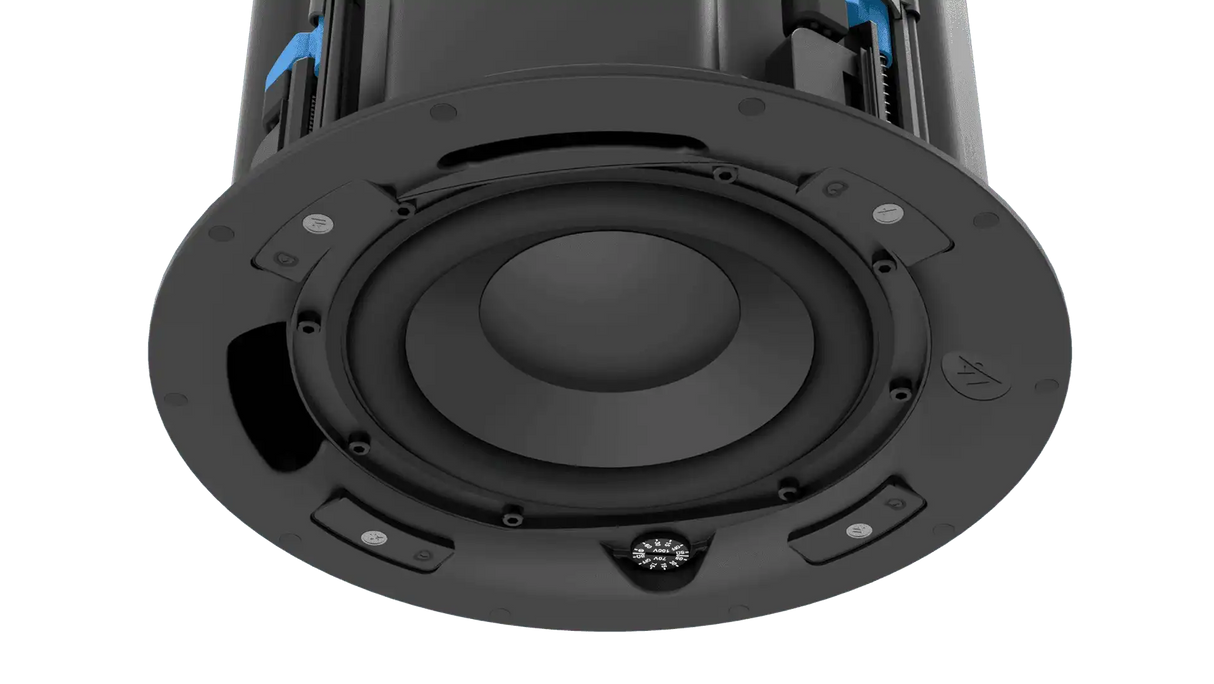

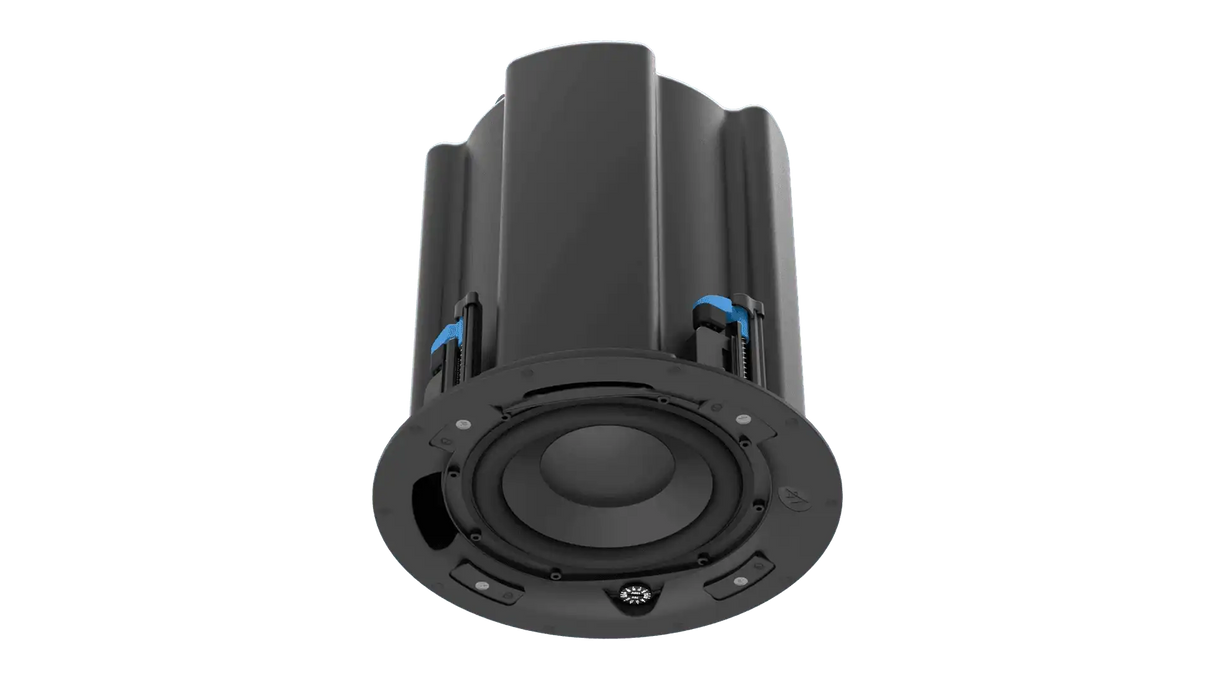

Atlas Sound FC-8T – 8" IsoFlare Premium In-Ceiling Speaker Blind Mount

Product Overview

The Atlas Sound FC-8T is an 8" full-bandwidth IsoFlare point-source ceiling loudspeaker engineered for premium commercial audio environments where tonal accuracy, even off-axis coverage, and clean architectural integration are priorities. Built around AtlasIED's patented IsoFlare coaxial driver technology, the FC-8T delivers a spherical wavefront with homogeneous alignment on all axes — a characteristic that produces consistent, natural sound reproduction across the listening area rather than variations in tonal balance at different listening positions. The blind-mount design ships as a complete installation package with integral back can, C-Ring, and Tile Bridge, making it the right specification for retrofit and new construction ceiling installations in conference rooms, hospitality venues, and high-end commercial spaces. The built-in 30-watt 70/100V transformer with easy-access tap selector switch makes integration into distributed commercial audio systems direct and straightforward.

Product Description

The FC-8T is part of AtlasIED's IsoFlare FC in-ceiling range, which was developed to serve as a benchmark for point-source ceiling speaker performance in prestige commercial installations. Unlike conventional coaxial designs where the high-frequency and low-frequency sources are not harmonically aligned, the IsoFlare driver achieves excellent alignment between HF and LF transducers. The result is a constant time delay across the entire frequency spectrum, which produces exceptional off-axis performance and a wide, even listening area — a property that is particularly valuable in conference rooms, hospitality spaces, and multi-purpose rooms where listeners are not uniformly positioned below the speaker.

The HF section uses a ferrofluid-cooled titanium tweeter with a neodymium magnet system, selected for its combination of extended high-frequency response, thermal management, and lightweight mass. The LF cone uses weather-treated multi-fiber material with a fluted surround — a design that eliminates energy reflection back down the cone, reducing coloration in the mid-range. The crossover employs high-current air core inductors and polypropylene capacitors, which minimize insertion loss and distortion in the critical mid-band. The optimized smooth-transition baffle design avoids the sharp edges that cause diffraction artifacts in lesser designs.

Installation is handled through AtlasIED's patented toolless high-travel secure-clamp mechanism, which locks the speaker securely in ceiling material thicknesses from thin plasterboard to thicker panel materials without requiring tools or hardware beyond the speaker itself. The edgeless grille is magnetically secured and fully paintable, eliminating the visible grille ring that detracts from architectural finishes. Voicing presets for the FC-8T are accessible through the AtlasIED Atmosphere DSP platform, providing EQ profiles optimized for specific room types without requiring manual graphic EQ adjustment at the amplifier.

Key Features

• IsoFlare Coaxial Point-Source Driver — Patented driver design achieves harmonic alignment between HF and LF sources, producing a spherical wavefront with even tonal balance across all listening positions and angles.
• Ferrofluid-Cooled Titanium Tweeter — Neodymium-magnet HF driver with ferrofluid cooling handles sustained high-power operation while maintaining extended high-frequency response and low distortion.
• Toolless Secure-Clamp Mounting Mechanism — Patented high-travel clamp installs and locks without tools, accommodating a wide range of ceiling material thicknesses for fast, reliable installation.

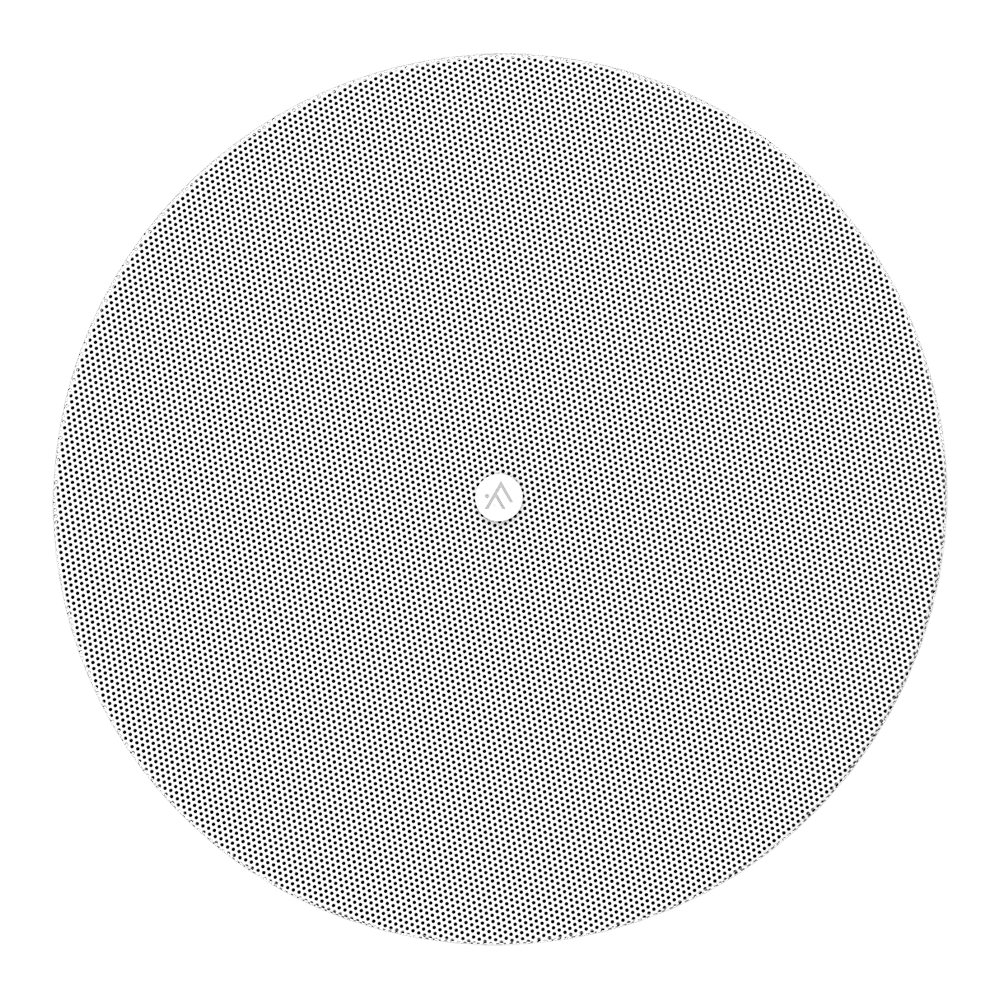

• Magnetically Secured Edgeless Grille — No visible grille ring or adapter requirement; grille accepts paint in a single step along with ceiling surface for clean architectural integration.
• Fluted Surround Technology — Eliminates conventional surround energy reflections that cause coloration in the midrange, delivering cleaner, more accurate vocal reproduction.
• 30-Watt 70/100V Transformer — Full-bandwidth, very low insertion loss transformer allows direct connection to commercial distributed audio systems at 70V or 100V line levels.
• Easy-Access Tap Selector Switch — Screwdriver-accessible tap switch on the back can enables wattage selection without removing the speaker from the ceiling.
• AtlasIED Atmosphere Platform Integration — Enhanced voicing presets available via the Atmosphere DSP platform provide room-optimized EQ profiles without manual amplifier-side adjustment.

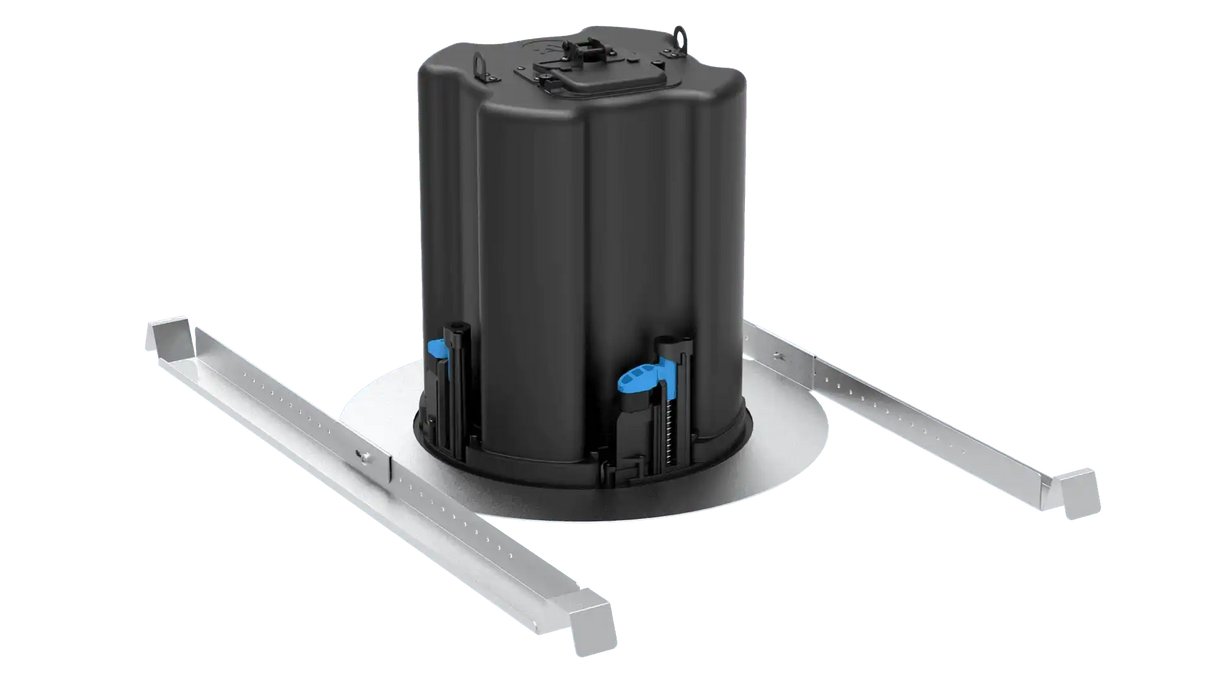

• Blind Mount Package (Integral Back Can, C-Ring, Tile Bridge) — Ships as a complete installation assembly, suitable for tiles, drywall, and plaster ceiling types without additional accessory orders.
• High-Current Premium Crossover Components — Air core inductors and polypropylene capacitors minimize insertion loss and maintain crossover accuracy at elevated output levels.

Typical Applications

• Conference room
• Boardroom
• Huddle room
• Commercial meeting space
• Multi-purpose room
• Training room
• House of worship

Technical Specifications

Frequently Asked Questions

Q: What is the difference between the FC-8T (Blind Mount) and the FC-8TPI (Pre-Install)?

A: The FC-8T ships as a single complete unit with integral back can, C-Ring, and Tile Bridge for standard blind-mount installations. The FC-8TPI (Pre-Install) separates the driver (FC-8DRV) from the pre-wired back can (FC-8TPIC), allowing the back can to be installed during rough-in construction before ceiling board goes up, and the driver inserted later at finishing. The Pre-Install option is better for phased or new construction timelines; the FC-8T is better for retrofit and renovation projects.

Q: Does the FC-8T work with 70V and 100V distributed systems?

A: Yes. The internal transformer supports both 70V and 100V line-level operation. The tap selector switch is accessible without removing the speaker from the ceiling.

Q: Can the FC-8T grille be painted to match the ceiling?

A: Yes. The edgeless magnetically secured grille is fully paintable, allowing a single-step painting process that covers both the ceiling surface and the grille simultaneously for a clean, professional finish.

Q: What ceiling types does the toolless clamp mechanism support?

A: The patented high-travel secure-clamp mechanism accommodates a wide range of ceiling material thicknesses, including standard 1/2" and 5/8" drywall, mineral fiber tiles, and plasterboard, without requiring special tools or additional hardware.

Q: How does Atmosphere platform integration work with the FC-8T?

A: The AtlasIED Atmosphere DSP platform provides factory voicing presets specifically developed for IsoFlare FC speakers. These presets can be applied via network-connected Atmosphere DSP processors to optimize the speaker's frequency response for specific room types without manual equalization at the amplifier.

Q: What is the warranty on the FC-8T?

A: The FC-8T carries AtlasIED's standard commercial product warranty. Contact Creation Networks or AtlasIED directly for current warranty terms and support options applicable to your project.
