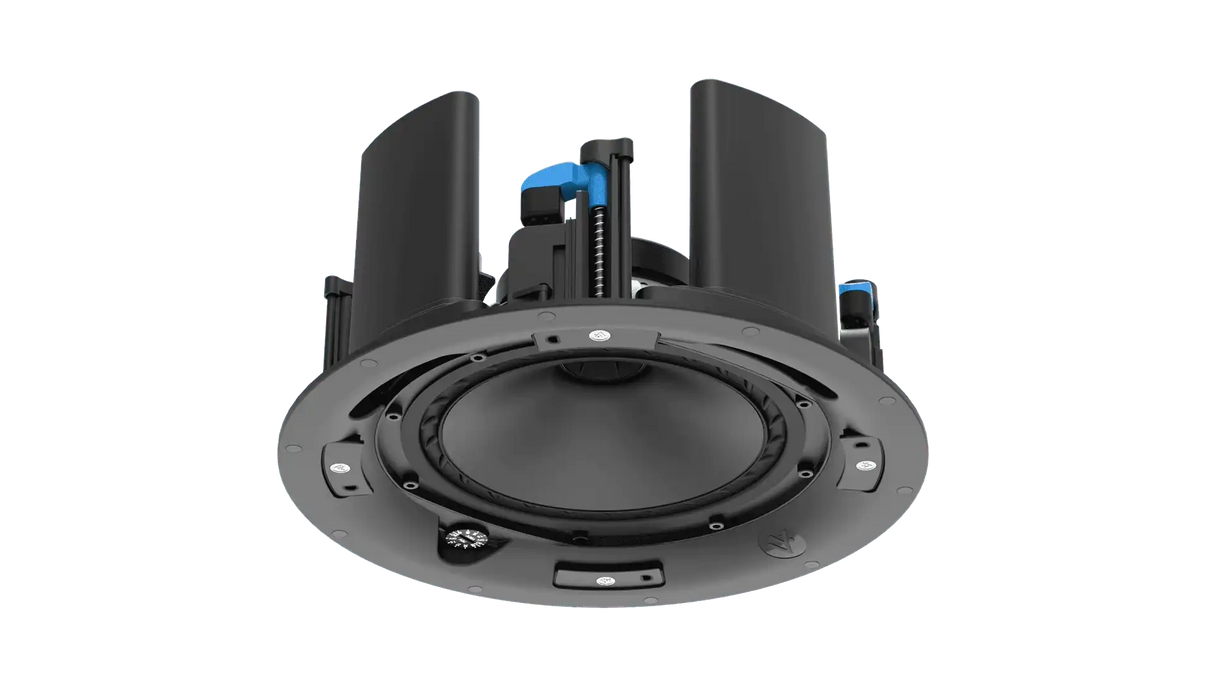

Atlas Sound FC-8DRV – 8" FC Series Premium Ceiling Speaker Driver

Product Overview

The AtlasIED FC-8DRV is an 8" premium in-ceiling speaker pre-install driver engineered for commercial audio distribution in 70V/100V distributed speaker systems. Designed as the driver component for the FC-8T ceiling speaker system, it targets integrators who need high-fidelity background music and speech reproduction in commercial spaces. Long-tail applications include commercial ceiling speaker for background music, 70V in-ceiling speaker for retail, and pre-install ceiling speaker driver for commercial AV.

Product Description

The FC-8DRV is the driver-only component of AtlasIED's FC Series premium ceiling speaker line, designed for pre-installation scenarios where the enclosure or grille may already be in place. The ferrofluid-cooled titanium high-frequency driver with a neodymium magnet delivers precise, fatigue-free treble over extended operating periods. A weather-treated multi-fiber cone balances stiffness with controlled high-frequency roll-off, producing accurate midrange reproduction suited to both music and speech intelligibility. The fluted surround technology prevents energy from reflecting back down the cone, eliminating the coloration common in conventional driver designs. An optimized smooth-transition baffle with no sharp edges eliminates diffraction artifacts, resulting in a cleaner off-axis response. The integrated 30-watt 70V/100V transformer maintains very low insertion loss, preserving system headroom across distributed speaker runs. High-current crossover components — including air-core inductors and polypropylene capacitors — deliver low distortion at elevated drive levels. The easy-access tap selector switch allows installers to configure power taps from the front without removing the driver, reducing installation time. Enhanced voicing presets are available through the AtlasIED Atmosphere DSP platform for systems requiring additional tuning control.

Key Features

• Ferrofluid-Cooled Titanium HF Driver — Neodymium magnet system provides extended high-frequency output with thermal protection for continuous operation.
• Weather-Treated Multi-Fiber Cone — Balanced stiffness and controlled top-end roll-off deliver accurate midrange for music and speech applications.
• Fluted Surround Technology — Prevents energy reflection back down the cone, eliminating tonal coloration found in conventional surround profiles.
• Diffraction-Free Baffle Design — Smooth-transition baffle with no sharp edges produces cleaner on- and off-axis frequency response.
• Low Insertion Loss 30W Transformer — Full-bandwidth 70V/100V transformer preserves system headroom across extended distributed runs.
• Premium Crossover Components — Air-core inductors and polypropylene capacitors minimize distortion at rated drive levels.
• Front-Access Tap Selector — Easy-access switch allows power tap adjustment without driver removal for faster commissioning.
• Atmosphere Platform Compatible — Supports enhanced voicing presets via the AtlasIED Atmosphere DSP ecosystem.
• Magnetically Secured Edgeless Grille — Press-fit, tool-free grille attachment with no visible fasteners; paintable white finish.

Typical Applications

• Conference room
• Boardroom
• Commercial meeting space
• Multi-purpose room
• Training room
• House of worship
• All-hands room

Technical Specifications

Frequently Asked Questions

Q: What is the difference between the FC-8DRV and the FC-8T?

A: The FC-8T is the complete speaker assembly. The FC-8DRV is the driver-only component, intended for pre-installation scenarios where the enclosure is installed in a first phase and the driver is added later.

Q: Is this speaker compatible with 70V distributed audio systems?

A: Yes. The FC-8DRV includes an integrated 30-watt 70V/100V low-insertion-loss transformer for direct connection to distributed audio amplifiers.

Q: Can the grille be painted to match ceiling color?

A: Yes. The edgeless grille is paintable, allowing a single-step paint process to match the surrounding ceiling without additional masking or adapters.

Q: Does this speaker require the Atmosphere platform to operate?

A: No. The FC-8DRV operates as a standalone 70V/100V speaker. The Atmosphere platform is optional for accessing enhanced voicing presets and DSP control.

Q: What tap settings are available on the transformer?

A: Tap settings are accessible via the front-mounted tap selector switch. Refer to the product datasheet for the specific wattage tap options available for this model.

Q: Is the FC-8DRV suitable for plenum ceiling installations?

A: Consult the product datasheet for plenum certification details. The FC Series is designed for commercial applications and should be used with an appropriate back box where required by local code.
