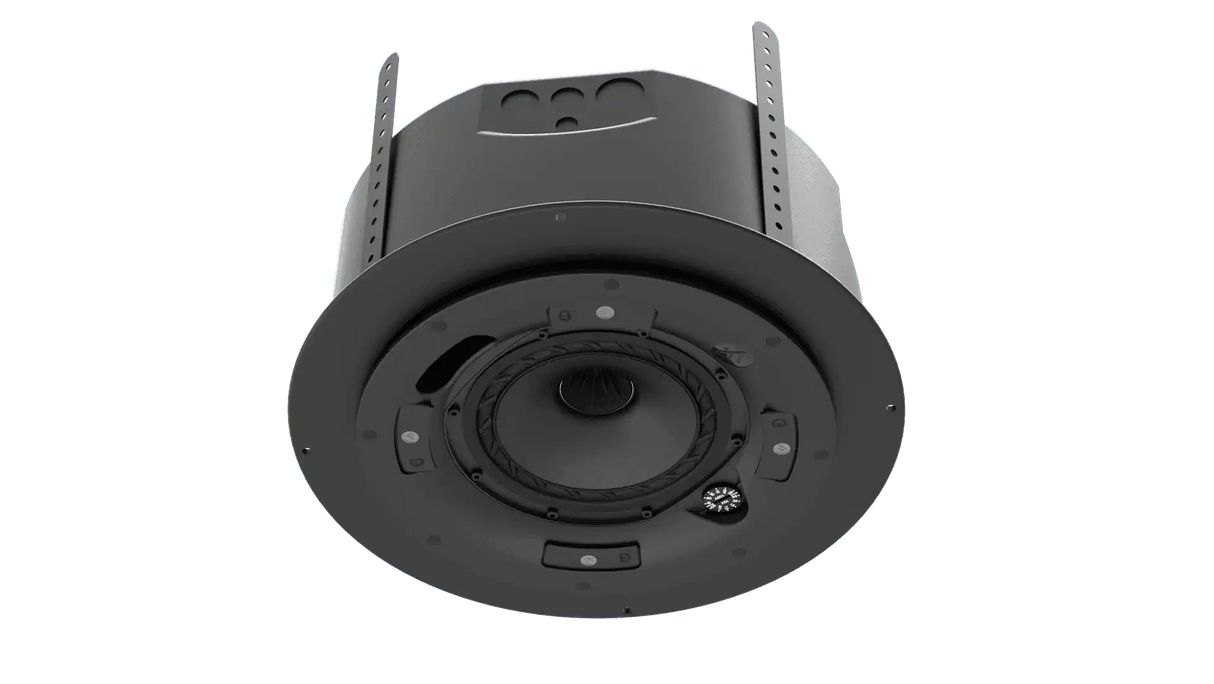

Atlas Sound FC-6DRV – 6" IsoFlare Pre-Install Ceiling Speaker Driver

Product Overview

The Atlas Sound FC-6DRV is the pre-install driver component of the Atlas+Fyne IsoFlare FC-6TPI two-way ceiling loudspeaker system, designed for staged commercial and institutional construction workflows where speakers must be installed in two phases. As a 6-inch premium ceiling speaker pre-install driver, it ships without a back can, allowing the loudspeaker driver to be installed after construction is complete while the FC-6TPIC back can is wired in during the first-fix electrical stage. Long-tail applications include pre-install ceiling speaker driver for commercial AV, two-phase ceiling speaker installation commercial build, and IsoFlare in-ceiling driver for high-fidelity distributed audio.

Product Description

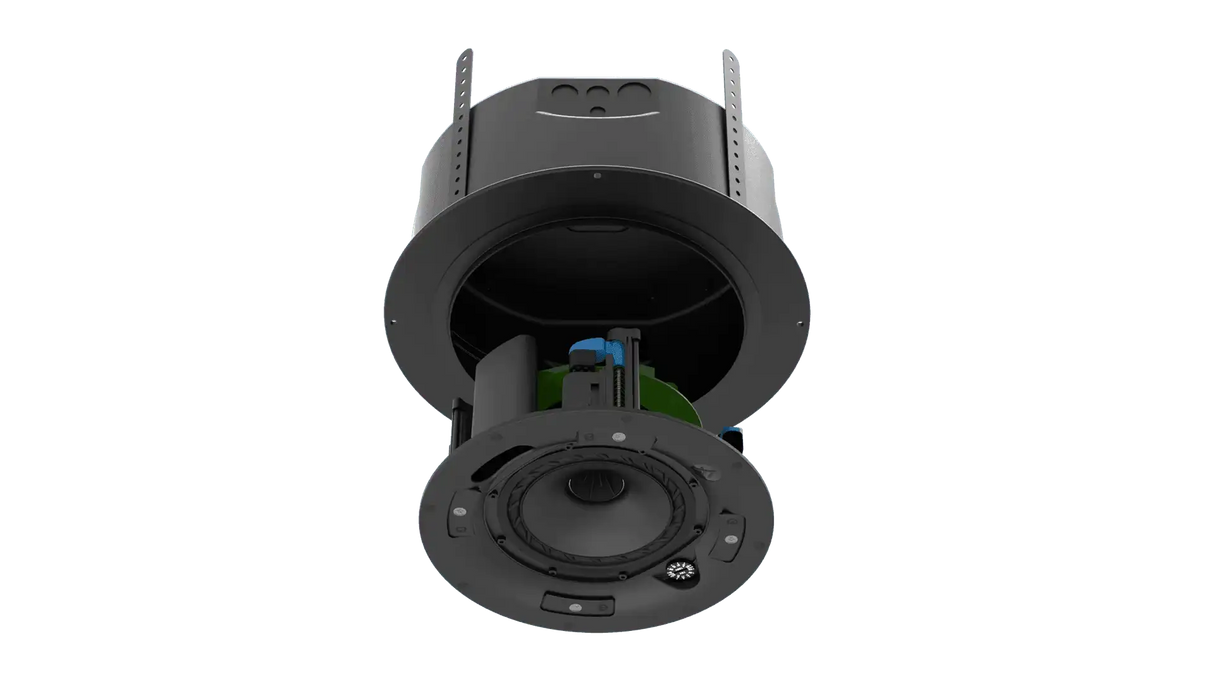

The FC-6DRV is the driver-only component that pairs with the FC-6TPIC pre-wired back can to form the complete FC-6TPI IsoFlare ceiling speaker system. This two-phase installation approach separates the electrical rough-in (first fix) from the finish installation (second fix), protecting the premium loudspeaker components from construction-phase damage such as dust, debris, and mechanical impact. The FC-6TPI system is built on Atlas+Fyne’s IsoFlare coaxial driver technology, which provides wide bandwidth and high sensitivity for premium music and speech intelligibility in commercial spaces. The system is engineered for applications requiring a combination of sonic fidelity and architectural integration, with performance specifications appropriate for critical listening environments. A rotary tap selector switch provides 70V line-level taps at 60W, 30W, 15W, and 7.5W, as well as low-impedance direct operation at 8 ohms. The recommended amplifier power is 160W at 8 ohms. System sensitivity measures 91dB at 1W/1m with a frequency range of 50Hz to 20kHz (-10dB). Maximum average SPL reaches 110dB with 116dB peak, providing substantial headroom for high-SPL commercial applications. The unit carries a 60-month warranty, reflecting the quality standards of the Atlas+Fyne collaboration.

Key Features

• IsoFlare Coaxial Driver Technology — Wide bandwidth, high-sensitivity two-way coaxial design delivers premium fidelity for music and speech reproduction in commercial ceiling applications.
• Pre-Install Driver Configuration — Ships without back can for two-phase installation; pairs with the FC-6TPIC pre-wired back can installed during rough-in, protecting the driver during construction.
• Rotary Tap Selector Switch — Front-accessible 70V tap selector offers 60W, 30W, 15W, and 7.5W settings plus low-impedance 8-ohm bypass mode.
• High Sensitivity — 91dB sensitivity (1W/1m) reduces amplifier power requirements while maintaining consistent output levels across large distributed systems.
• Extended Frequency Range — 50Hz to 20kHz (-10dB) frequency range provides full-spectrum reproduction including extended bass response from the back can enclosure.
• High Maximum SPL — 110dB average and 116dB peak SPL ratings support high-headroom commercial applications where output and clarity are critical.
• 8 Ohm Direct Operation — Transformer bypass mode enables direct low-impedance connection for flexible system design and integration with standard amplifiers.
• 60-Month Warranty — Extended warranty period reflects the premium construction standards of the Atlas+Fyne IsoFlare product line.

Typical Applications

• Conference room
• Boardroom
• Commercial meeting space
• Multi-purpose room
• House of worship
• Training room
• Auditorium
• All-hands room

Technical Specifications

Frequently Asked Questions

Q: What is the difference between the FC-6DRV and the FC-6TPI?

A: The FC-6TPI is the complete system; the FC-6DRV is the driver-only component without a back can. The FC-6TPIC is the separately available pre-wired back can. Together, FC-6DRV and FC-6TPIC form the complete FC-6TPI system.

Q: Why use a pre-install driver approach instead of a standard ceiling speaker?

A: Pre-install systems allow the back can to be rough-in wired during electrical construction while the driver is installed after the ceiling is finished and the space is clean, protecting the premium loudspeaker components from damage.

Q: Can the FC-6DRV be used with standard 70V distributed amplifiers?

A: Yes. The built-in rotary tap selector provides 70V taps at 60W, 30W, 15W, and 7.5W to match the output of any standard 70V commercial amplifier.

Q: Does the FC-6DRV support direct 8-ohm operation?

A: Yes. The tap selector includes a transformer bypass setting for direct low-impedance 8-ohm operation, compatible with standard stereo or low-impedance power amplifiers.

Q: What is the coverage angle of the FC-6DRV?

A: The IsoFlare coaxial driver provides a coverage angle with a directivity index of 5.6dB. AtlasIED’s Speaker Placement Tool can assist in calculating optimal speaker spacing for your ceiling height and room dimensions.

Q: Is the FC-6DRV compatible with the AtlasIED Speaker Placement Tool?

A: Yes. The FC-6TPI/FC-6DRV is listed in the AtlasIED Speaker Placement Tool, which calculates speaker count, spacing, and tap power for a given room geometry.
